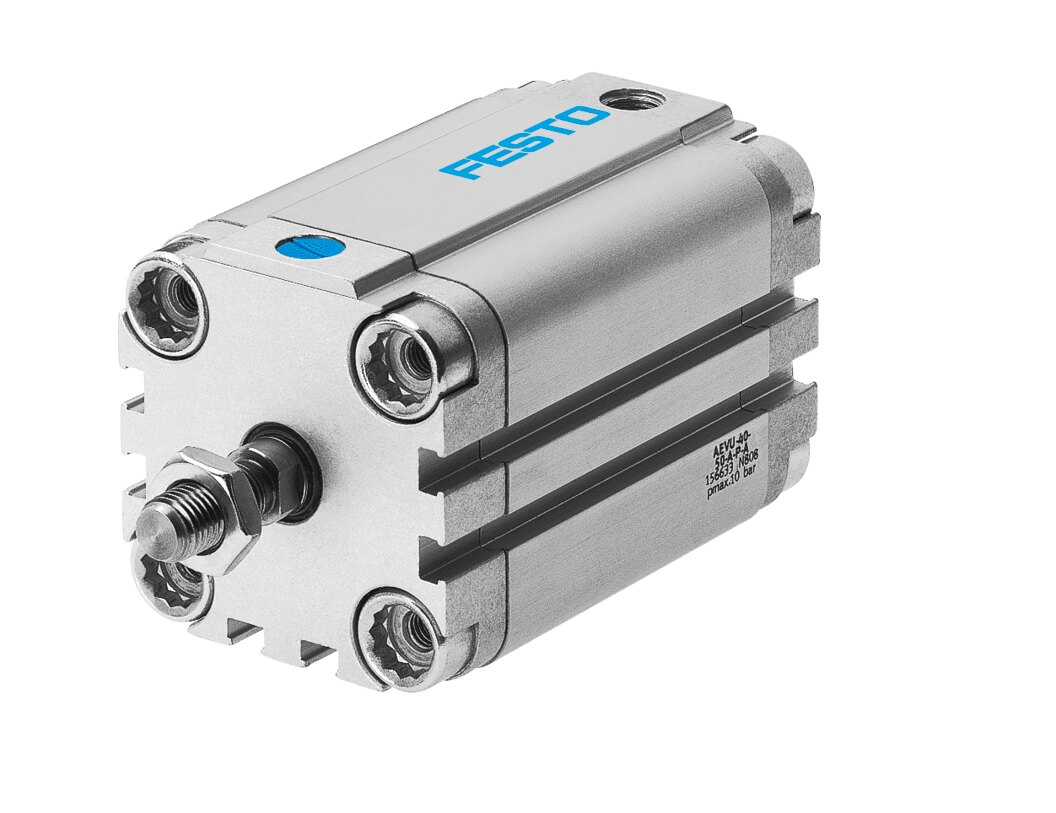

Festo AEVU-80-20-A-P-A Compact cylinder

Festo AEVU-80-20-A-P-A — Compact cylinder, pneumatic cylinders. stroke 20 mm; piston diameter 80 mm; operating pressure 0.06. 1 MPa (0.6. 10 bar; 8.7. 145 psi).

Manufacturer part number (MPN)

157016

Type code

AEVU-80-20-A-P-A

EAN / GTIN

4052568122522

Product category

Pneumatic cylinders

Stroke

20 mm

Piston diameter

80 mm

Piston rod thread

M16x1.5

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Mode of operation

Pushing, Single-acting

Piston-rod end

Male thread

Design

Piston, Piston rod

Position detection

Via proximity switch

Symbol

00991729

Variants

Piston rod at one end

Operating pressure

0.06 ... 1 MPa (0.6 ... 10 bar; 8.7 ... 145 psi)

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.75 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

2902 N

Moving mass for 0 mm stroke

307 g

Additional moving mass per 10 mm stroke

25 g

Basic weight for 0 mm stroke

1772 g

Additional weight per 10 mm stroke

168 g

Type of mounting

With through-hole, with accessories

Pneumatic connection

G1/8

Material collar screws

Galvanised steel

Material cover

Wrought aluminium alloy

Material dynamic seals

NBR, TPE-U(PU)

Material piston rod

High-alloy steel

Material cylinder barrel

Wrought aluminium alloy

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

G1/8

Carbon footprint (EPD)

25.8397 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568122522
• MPN 157016
