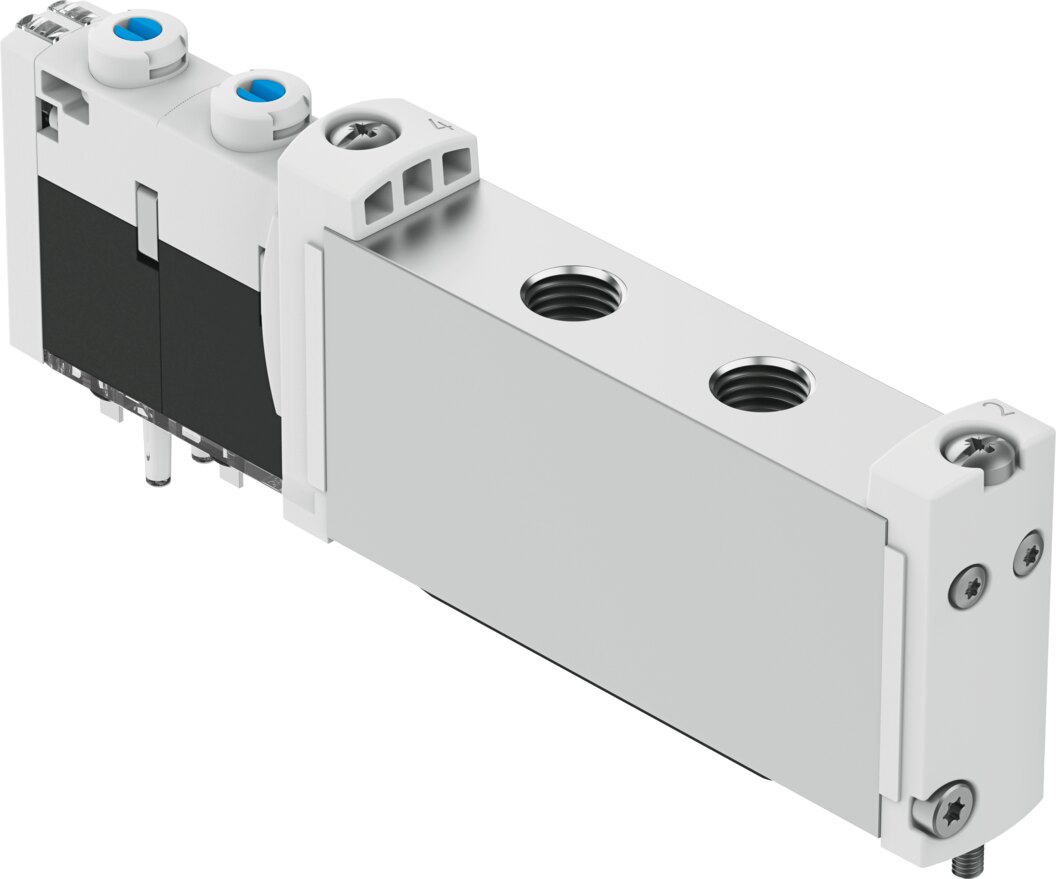

Festo VUVG-S14-B52-ZT-G18-1T1L Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-S14-B52-ZT-G18-1T1L — Solenoid valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 573472
- Type code
- VUVG-S14-B52-ZT-G18-1T1L
- EAN / GTIN
- 4052568220518
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 14 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 630 l/min
- pneumatic working port
- G1/8
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65, IP67
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991125
- lap
- Overlap
- Signal status display
- LED
- Pilot pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Max. switching frequency
- 3 Hz
- Switching time reversal
- 9 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse with 1 signal
- 3000 µs
- Characteristic coil data
- 22 V DC: 1.0 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 60 °C
- Product weight
- 98 g
- Electrical connection
- Via E-box
- Type of mounting
- On manifold rail
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 4
- G1/8
- Material seals
- HNBR, NBR
- Material housing
- Wrought aluminium alloy
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Carbon footprint (EPD)
- 2.1425 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568220518
- MPN 573472
Product Documentation
More from Festo
Festo

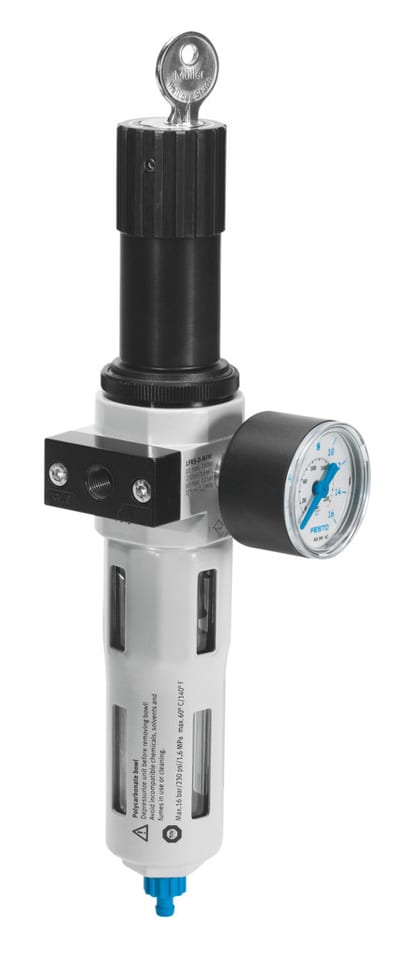

Festo LFRS-1/4-D-5M-MINI-A Filter regulator
194718
Festo

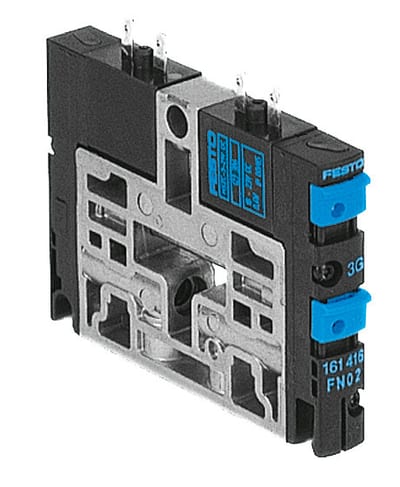

Festo CPV10-M1H-2X2-GLS-M7 Solenoid valve
185880
Festo

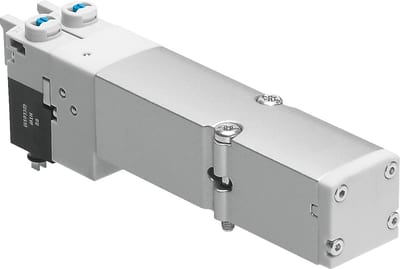

Festo VMPA2-M1BH-G-PI Solenoid valve
8022037
Festo

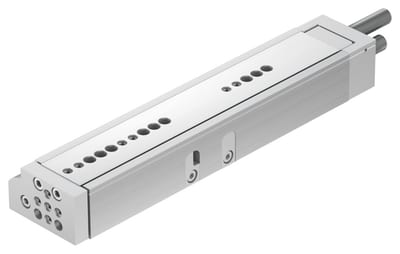

Festo DGSL-16-150-PA Mini slide
543990
Festo

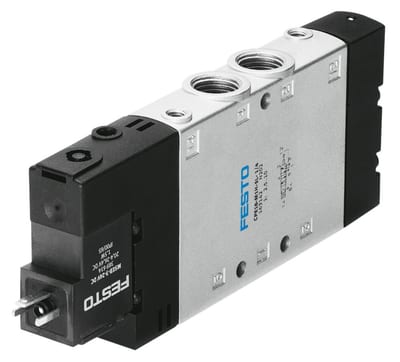

Festo CPE18-M3H-5LS-1/4 Solenoid valve
163790
Festo

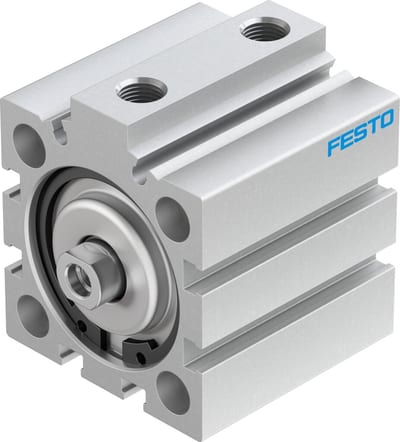

Festo ADVC Short stroke cylinder - 40mm, G1/8, 15mm, ADVC-40-15-I-P-A
188234
Festo

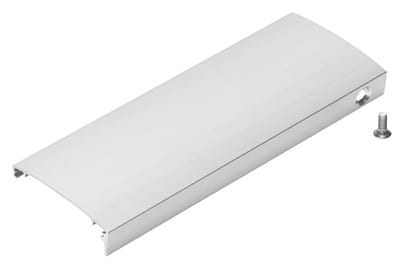

Festo DADS-AB-G6-10-100 Covering
1090689
Festo

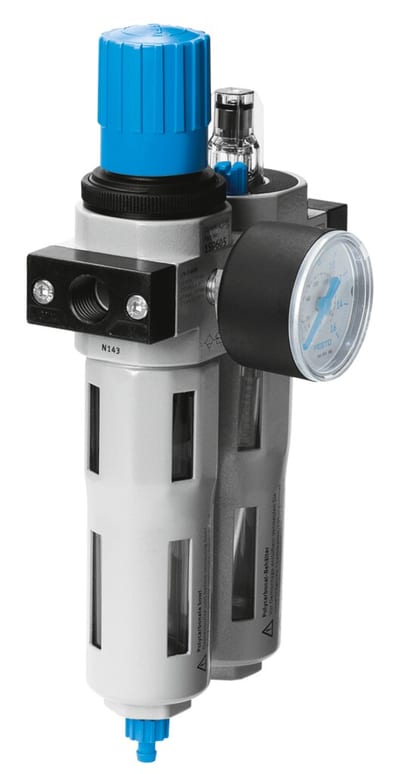

Festo FRC-3/4-D-7-MAXI-A Service unit
