Festo

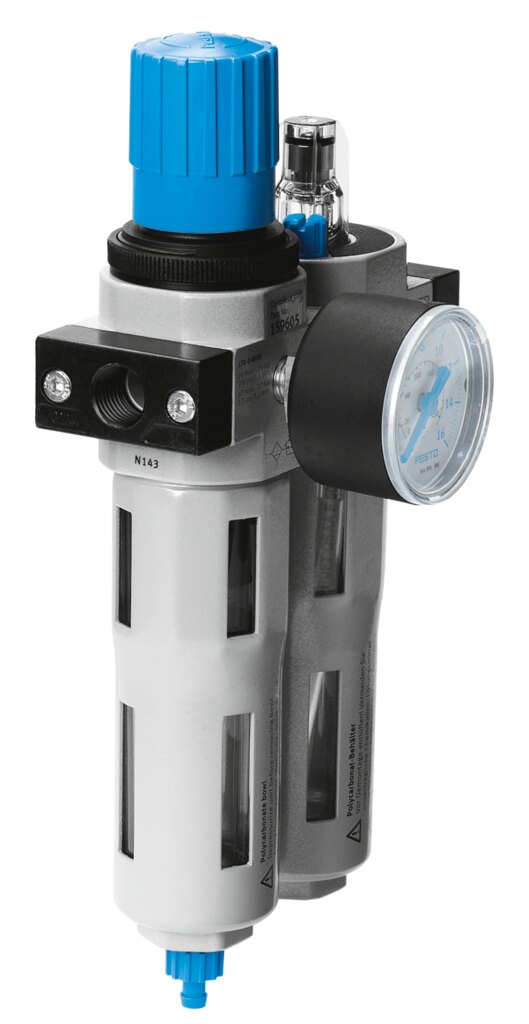

Festo FRC-3/4-D-7-MAXI-A Service unit
Part number162768EAN / GTIN4052568132804HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo FRC-3/4-D-7-MAXI-A — Service unit, compressed air preparation. operating pressure 0.2. 1.2 MPa (2. 12 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 162768
- Type code
- FRC-3/4-D-7-MAXI-A
- EAN / GTIN
- 4052568132804
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical +/-5°
- Condensate drain
- Fully automatic
- Design
- Proportional standard mist lubricator
- Max. condensate volume
- 80 ml
- Grade of filtration
- 40 µm
- Bowl guard
- Metal bowl guard
- Symbol
- 00991599
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.2 ... 1.2 MPa (2 ... 12 bar)
- Pressure regulation range
- 0.5 ... 7 bar
- Max. pressure hysteresis
- 0.04 MPa (0.4 bar; 5.8 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 8500 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 2390 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G3/4
- Pneumatic connection, port 2
- G3/4
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 3/4"
- Press Area
- 0.5 to 7 bar
- Filter element
- 40 My
- Carbon footprint (EPD)
- 14.8909 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568132804
- MPN 162768
Product Documentation
Document preview: FRC-3/4-D-7-MAXI-A — Festo product documentation
More from Festo
Festo
Festo VMPA14-M1H-K-G1/8-PI Solenoid valve
8023549
Festo
Festo DZF-40-125-P-A Flat cylinder
164059
Festo
Festo LFR-3/4-D-7-MIDI-A Filter regulator
162715
Festo

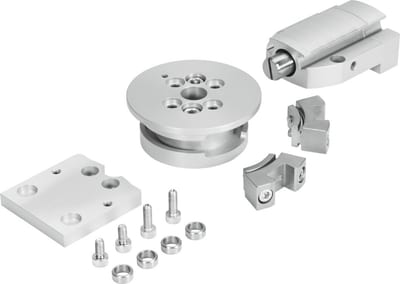

Festo DADL-EL-Q11-63 Clamping unit
1941568
Festo

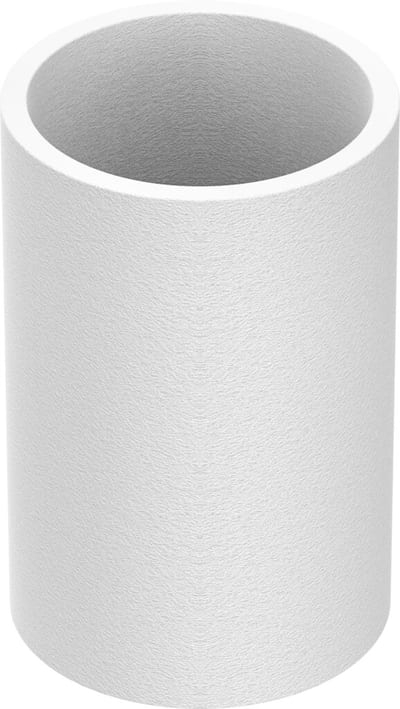

Festo MS4-LFP-E Filter cartridge
534502
Festo

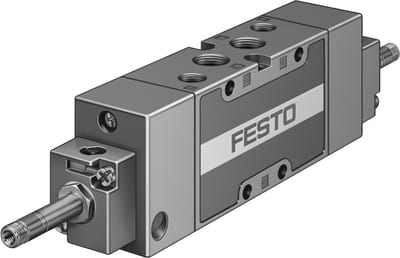

Festo MFH-5/3B-1/4-B Solenoid valve
19788
Festo

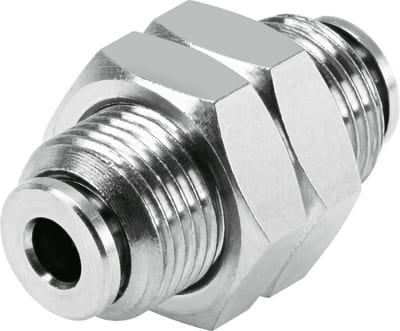

Festo NPQH-H-Q4-E-P10 Push-in bulkhead connector
578299
Festo

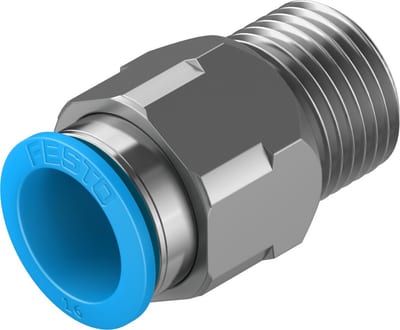

Festo QS-1/2-16-20 Push-in fitting
