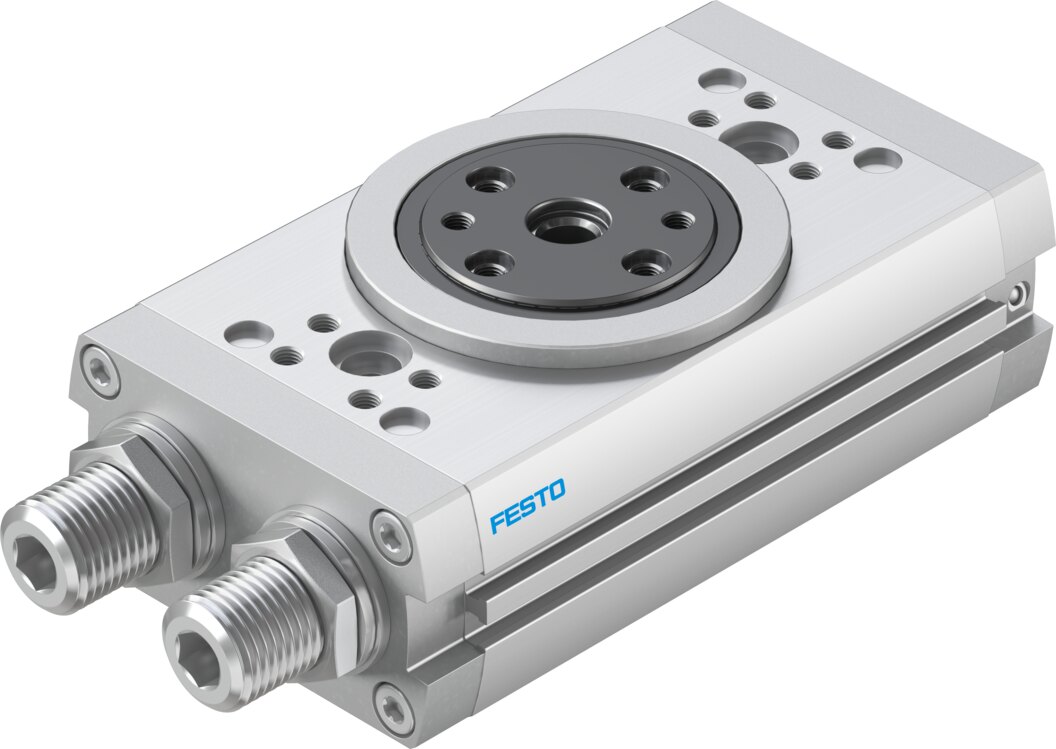

Festo DRRD-32-180-FH-PA Semi-rotary drive
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DRRD-32-180-FH-PA — Semi-rotary drive, rack and pinion actuators. operating pressure 0.3. 0.8 MPa (3. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 1578512
- Type code
- DRRD-32-180-FH-PA
- EAN / GTIN
- 4052568242190
- Product category
- Rack and pinion actuators
- Size
- 32
- Cushioning angle
- 33 deg
- Setting range of swivel angle for each end position
- +10 /-100 deg
- Swivel angle
- 180 deg
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Rack and pinion
- Position detection
- Via proximity switch
- Symbol
- 00991265
- Operating pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364 zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 ... 60 °C
- Theoretical torque at 0.6 MPa (6 bar, 87 psi)
- 10.1 Nm
- Permissible mass moment of inertia
- 0.15 kgm²
- Product weight
- 2816 g
- Type of mounting
- With through-hole, with female thread
- Pneumatic connection
- G1/8
- Material drive shaft
- Tempered steel
- Material cover
- Wrought aluminium alloy, anodised
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Smooth-anodised
- Product type
- Pneumatic rodless cylinders
- Product group
- Pneumatics
- Diameter
- 32 mm
- Stroke rate
- 180 mm
- Carbon footprint (EPD)
- 57.1653 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123900
- HS code
- 8412.39
Standards & Compliance
- HS Code
- 8412.39
Cross References
- EAN 4052568242190
- MPN 1578512
Product Documentation
More from Festo
Festo
Festo ADN-80-30-I-PPS-A Compact cylinder
572722
Festo
Festo MDH-5/3E-D-3-M12-C Solenoid valve
533017
Festo
Festo DNC-80-60-PPV-A ISO cylinder
1922643
Festo
Festo VUVS-L30-M52-MD-G38-F8-1B2 Solenoid valve
575606
Festo
Festo VUVG-S18-T32C-AZT-G14-1T1L Solenoid valve
8004873
Festo
Festo VUVS-LK25-M32C-AD-G14-1B2-S Solenoid valve
8043217
Festo
Festo AEVC Short stroke cylinder - 25mm, M5, 25mm, AEVC-25-25-A-P
188171
Festo
Festo AEVU-80-20-A-P-A Compact cylinder
157016
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1578512?
- 1578512 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 1578512.
- What is the HS code for 1578512?
- The customs tariff (HS) code for 1578512 is 8412.39.
- Who manufactures 1578512?
- 1578512 is a Festo product in the Pneumatics range.
- Is a datasheet available for 1578512?
- Yes — the 1578512 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1578512?
- The minimum order quantity is 1.
- Is 1578512 available?
- Yes — 1578512 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
