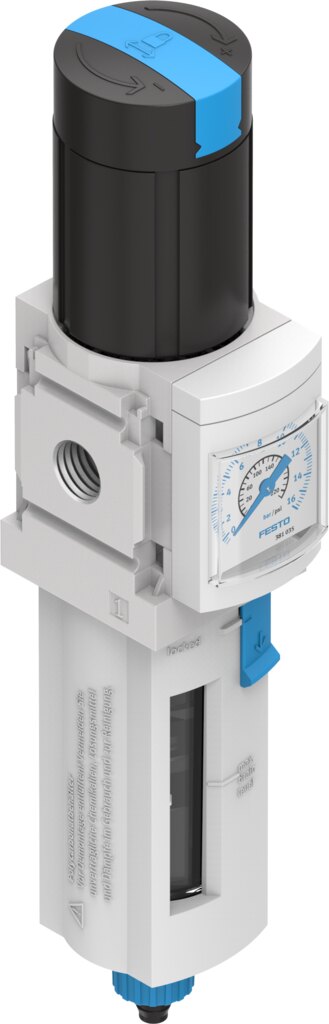

Festo MS4-LFR Filter controller automatic - 1/4", 40MY, MS4-LFR-1/4-D7-ERV-AS
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MS4-LFR Filter controller automatic. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/4", filter element 40 My, supplier type designation MS4-LFR-1/4-D7-ERV-AS. Supplied under manufacturer part number 529158, EAN 4052568163549, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- 4 Series: MS Actuator lock: Rotary knob with detent; can be closed with accessories Mounting position: Vertical +/-5° Grade of filtration: 40 µm Condensate drain: Manual, non-detenting Design: Filter controller with pressure gauge Max. condensate volume: 19 ml Controller function: Output pressure constant; With secondary exhausting; With return flow function Bowl guard: Plastic bowl guard Degree of condensate separation: 75 % Symbol: 00991587 Pressure gauge (analogue) or Pressure display (digital): With pressure gauge Operating pressure: 0.2 ... 1.2 MPa (2 ... 12 bar) Pressure regulation range: 0.5 ... 12 bar Max. pressure hysteresis: 0.25 bar Standard nominal flow rate (standardised to DIN 1343): 1500 l/min Operating medium: Compressed air to ISO 8573-1:2010 [7:4:-]; Inert gas LABS (PWIS) conformity: VDMA24364-B1/B2-L Storage temperature: -10 ... 60 °C Suitable for use with food: See supplementary material information Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4] Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C Pore size: 40 µm Product weight: 275 g Type of mounting: With accessories Pneumatic connection, port 1: G1/4 Pneumatic connection, port 2: G1/4 material sub-base: Die-cast aluminium material control panel: PA; POM material seals: NBR material filter: Packaging unit material housing: Die-cast aluminium material membrane: NBR material bowl: Makrolon® material separating plate: POM EAN / GTIN: 4052568163549 Festo type code: MS4-LFR-1/4-D7-ERV-AS Festo order number: 529158 Product type: Air treatment Product group: Pneumatics Thread: 1/4" Filter element: 40 My Temperature min: -10 °C Temperature max: 60 °C Carbon footprint (EPD): 5.1537 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84811005 HS code: 8481.10 Manufacturer part number: 529158
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568163549
- MPN 529158
Product Documentation
