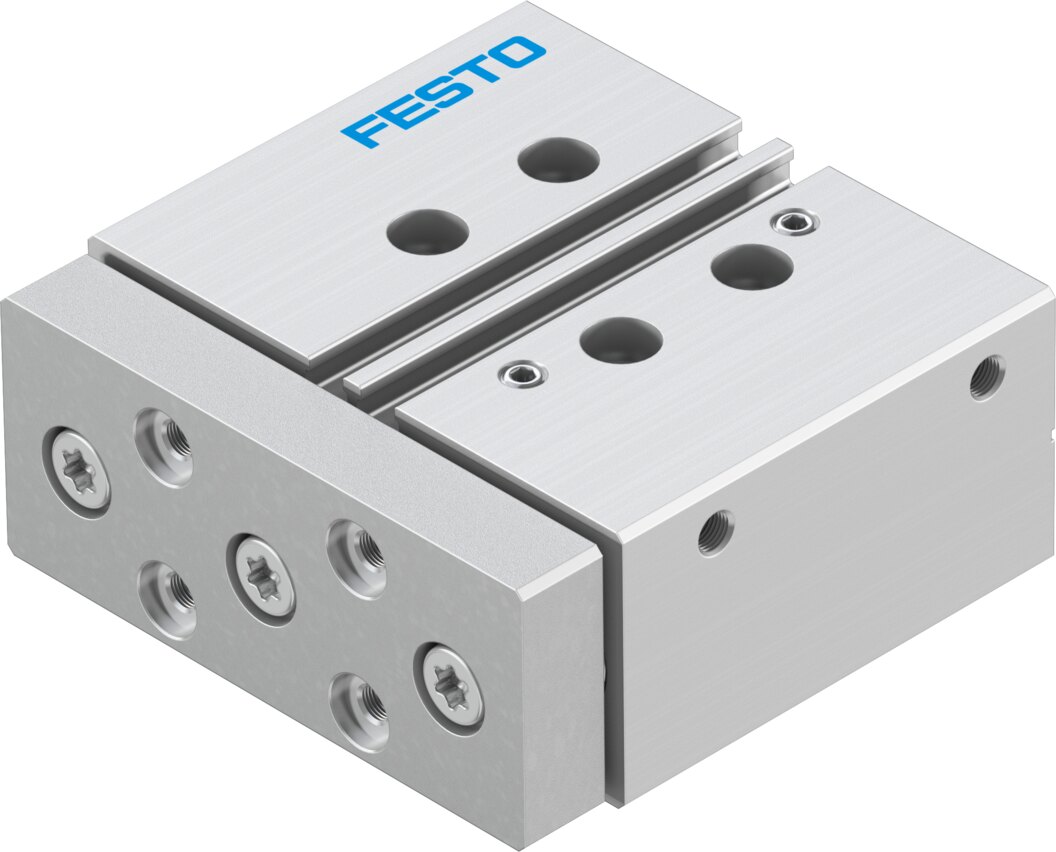

Festo DFM Guide Cylinder - 20mm, M5, 25mm, DFM-20-25-P-A-KF
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DFM Guide Cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 20 mm, port size M5, stroke rate 25 mm, supplier type designation DFM-20-25-P-A-KF. Supplied under manufacturer part number 170916, EAN 4052568140069, HS code 8412.31, country of origin Germany.
Technical Specifications
- Distance from centre of gravity of load to yoke plate xs
- 50 mm
- Stroke
- 25 mm
- Piston diameter
- 20 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Position detection
- Via proximity switch
- Symbol
- 00991737
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 ... 60 °C
- Impact energy in end positions
- 0.2 J
- Max. force Fy
- 408 N
- Max. force Fy static
- 510 N
- Max. force Fz
- 408 N
- Max. force Fz static
- 510 N
- Max. moment Mx
- 11.84 Nm
- Max. torque Mx static
- 14.79 Nm
- Max. moment My
- 4.49 Nm
- Max. torque My static
- 5.61 Nm
- Max. moment Mz
- 4.49 Nm
- Max. torque Mz static
- 5.61 Nm
- Max. permissible torque load Mx as a function of stroke
- 2.24 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 141 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 188 N
- Moving mass
- 388 g
- Product weight
- 781 g
- Centre of gravity of moving mass as a function of stroke
- 19.1 mm
- alternative connections
- See product drawing
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- EAN / GTIN
- 4052568140069
- Festo type code
- DFM-20-25-P-A-KF
- Festo order number
- 170916
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 15.8655 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 170916
