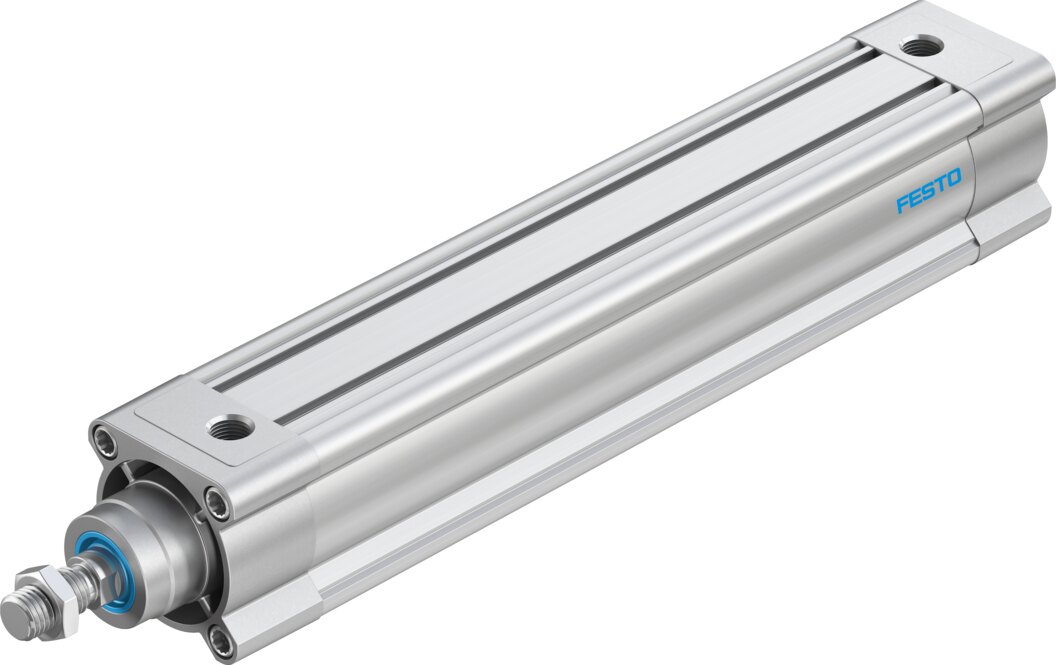

Festo DSBC Standard cylinder double-acting aluminium - 300mm, 63mm, DSBC-63-300-PPSA-N3
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSBC Standard cylinder double-acting aluminium. Pneumatics VDMA air cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: stroke rate 300 mm, diameter 63 mm, supplier type designation DSBC-63-300-PPSA-N3. Supplied under manufacturer part number 2126689, EAN 4052568252199, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 300 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 ... 1.2 MPa (0.4 ... 12 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1.3 J
- Cushioning length
- 22 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 1682 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 1870 N
- Moving mass
- 1180 g
- Moving mass for 0 mm stroke
- 430 g
- Additional moving mass per 10 mm stroke
- 25 g
- Product weight
- 3600 g
- Basic weight for 0 mm stroke
- 1740 g
- Additional weight per 10 mm stroke
- 62 g
- Type of mounting
- With female thread; With accessories
- Pneumatic connection
- G3/8
- Material cover
- Coated die-cast aluminium
- Material piston seal
- TPE-U(PU)
- Material piston
- Wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material piston rod wiper
- TPE-U(PU)
- Buffer seal material
- TPE-U(PU)
- Material of cushioning boss
- POM
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Material nut
- Galvanised steel
- Material bearing
- POM
- Material collar screws
- Galvanised steel
- EAN / GTIN
- 4052568252199
- Festo type code
- DSBC-63-300-PPSA-N3
- Festo order number
- 2126689
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Port Size
- 3/8"
- Carbon footprint (EPD)
- 64.7142 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 2126689
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568252199
- MPN 2126689
Product Documentation
More from Festo
Festo
Festo DZF Flat cylinder - 25mm, 125mm, DZF-25-125-A-P-A
161256
Festo
Festo MHP1 Connection block - MHP1-P10-2
197201
Festo
Festo DFM Guide Cylinder - 20mm, M5, 25mm, DFM-20-25-P-A-KF
170916
Festo
Festo DZF Flat cylinder - 63mm, 250mm, DZF-63-250-A-P-A
161317
Festo
Festo DGSL Mini Slide - M5, DGSL-12-50-P1A
543973
Festo
Festo VABF Check Valve - VABF-L1-14-H2
8047365
Festo
Festo MS4-LFR Filter regulator manual - 1/4", 40MY, MS4-LFR-1/4-D6-ERM-AS
529148
Festo
Festo DGSL Mini Slide - G1/8, DGSL-20-100-EA
570201
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2126689?
- 2126689 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 2126689.
- What is the HS code for 2126689?
- The customs tariff (HS) code for 2126689 is 8412.31.
- Who manufactures 2126689?
- 2126689 is a Festo product in the Pneumatics range.
- Is a datasheet available for 2126689?
- Yes — the 2126689 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2126689?
- The minimum order quantity is 1.
- Is 2126689 available?
- Yes — 2126689 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
