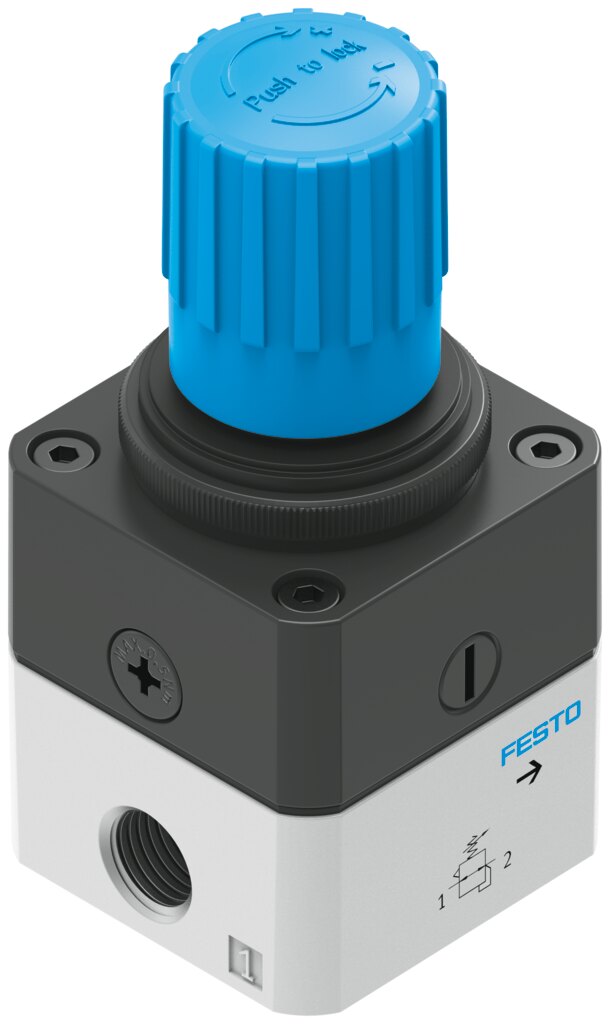

Festo LRP Precision regulator - 1/4", LRP-1/4-2,5-EX4
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LRP Precision regulator. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/4", supplier type designation LRP-1/4-2.5-EX4. Supplied under manufacturer part number 549919, EAN 4052568191610, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- 50
- Actuator lock
- Rotary knob with detent
- Mounting position
- Any
- Design
- Piloted precision diaphragm control valve
- Controller function
- Output pressure constant; With secondary exhausting
- Symbol
- 00991540
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- Prepared for G1/8
- Operating pressure
- 0.1 ... 1.2 MPa (1 ... 12 bar)
- Pressure regulation range
- 0.05 ... 2.5 bar
- Inlet pressure 1
- 1 ... 12 bar
- Max. pressure hysteresis
- 0.02 bar
- Standard nominal flow rate (standardised to DIN 1343)
- 1800 l/min
- Explosion protection
- Zone 1 (ATEX); Zone 2 (ATEX); Zone 21 (ATEX); Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas
- Note on operating and pilot medium
- Lubricated operation not possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 315 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568191610
- Festo type code
- LRP-1/4-2,5-EX4
- Festo order number
- 549919
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/4"
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 7.3419 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
- Manufacturer part number
- 549919
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568191610
- MPN 549919
Product Documentation
