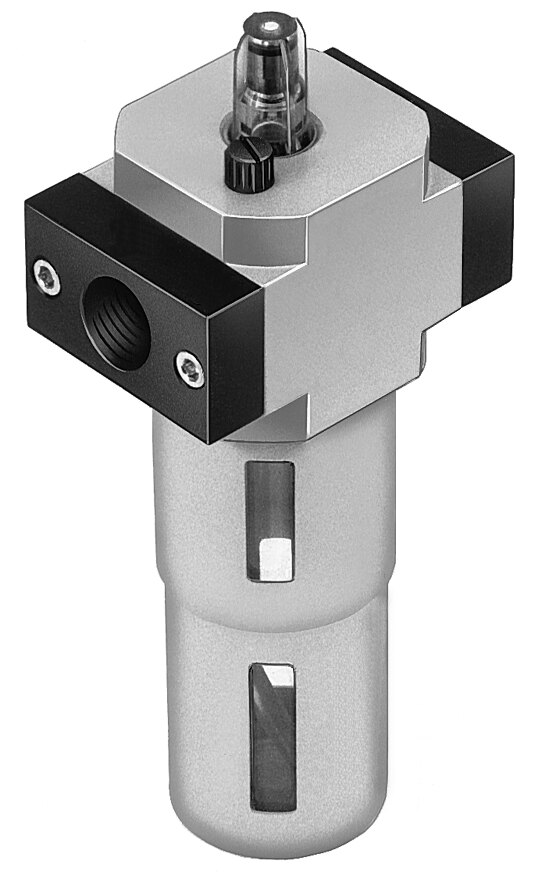

Festo LOE-3/4-D-MAXI Lubricator
Part number159622EAN / GTIN4052568126766HS code8424.89
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LOE-3/4-D-MAXI — Lubricator, compressed air preparation. operating pressure 0. 1.6 MPa (0. 16 bar; 0. 232 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 159622
- Type code
- LOE-3/4-D-MAXI
- EAN / GTIN
- 4052568126766
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Maxi
- Series
- D
- Mounting position
- Vertical +/-5°
- Design
- Proportional standard mist lubricator
- Max. oil capacity
- 190 cm³
- Bowl guard
- Metal bowl guard
- Symbol
- 00991532
- Operating pressure
- 0 ... 1.6 MPa (0 ... 16 bar; 0 ... 232 psi)
- Min. flow rate for lubricator function
- 10 l/min
- Standard nominal flow rate (standardised to DIN 1343)
- 8400 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:-], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1100 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G3/4
- Pneumatic connection, port 2
- G3/4
- Material bowl
- Makrolon®
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 3/4"
- Carbon footprint (EPD)
- 27.7073 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84248970
- HS code
- 8424.89
