Festo

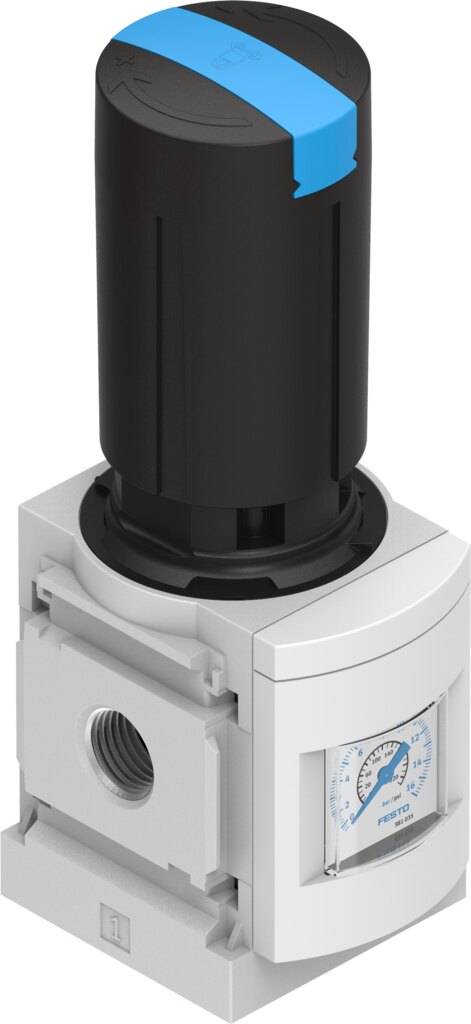

Festo MS6-LR-1/2-D5-AS Pressure regulator
Part number529989EAN / GTIN4052568085506HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MS6-LR-1/2-D5-AS — Pressure regulator, pressure regulators ms-lr. operating pressure 0.8. 20 bar.
Technical Specifications
- Manufacturer part number (MPN)
- 529989
- Type code
- MS6-LR-1/2-D5-AS
- EAN / GTIN
- 4052568085506
- Product category
- Pressure regulators MS-LR
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent, can be closed with accessories
- Mounting position
- Any
- Design
- Pressure regulator with pressure gauge
- Controller function
- Output pressure constant, with primary pressure compensation, with secondary exhausting
- Symbol
- 00991558
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.8 ... 20 bar
- Pressure regulation range
- 0.3 ... 4 bar
- Max. pressure hysteresis
- 0.25 bar
- Standard nominal flow rate (standardised to DIN 1343)
- 7500 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Suitable for use with food
- See supplementary material information
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 730 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material control panel
- PA, POM
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Material membrane
- NBR
- Material separating plate
- POM
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 4.8437 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568085506
- MPN 529989
Product Documentation
Document preview: MS6-LR-1/2-D5-AS — Festo product documentation
More from Festo
Festo

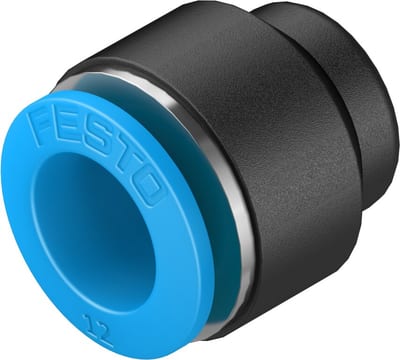

Festo QSC-12 Push-in cap
153266
Festo

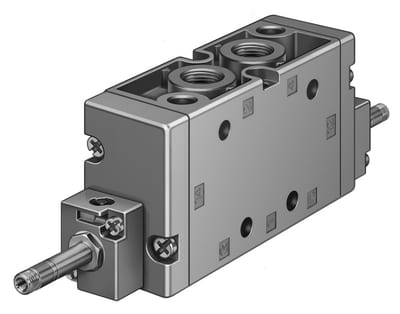

Festo JMFH-5-3/8-S-B Solenoid valve
