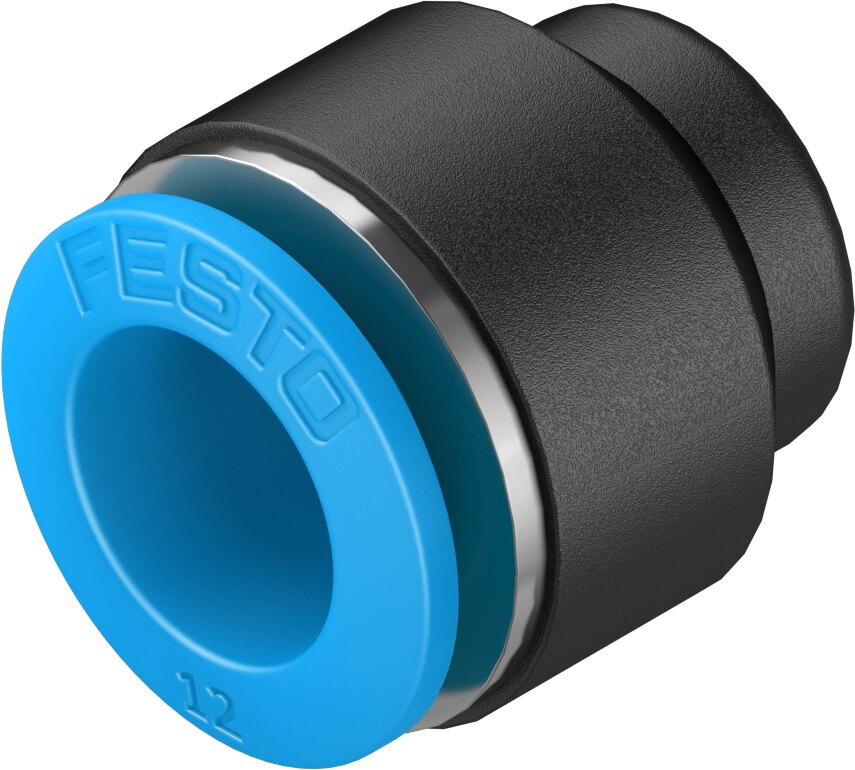

Festo QSC-12 Push-in cap
Pricing
Request a quote
We reply within 24 hours
Overview
Festo QSC-12 Push-in cap (part number 153266) is listed under Pneumatics / Fittings & Tubing. Type code: QSC-12; Product category: Push-in fittings; Size: Standard; Tubing insertion depth: 22.9 mm; Mounting position: Any; Design: Blanking plug.
Technical Specifications
- Manufacturer part number (MPN)
- 153266
- Type code
- QSC-12
- EAN / GTIN
- 4052568033422
- Product category
- Push-in fittings
- Size
- Standard
- Tubing insertion depth
- 22.9 mm
- Mounting position
- Any
- Design
- Blanking plug
- Push-in fittings - Design
- Push-pull principle
- Size of pack
- 10
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar; -13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar; -13.775 ... 203 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 ... 80 °C
- Product weight
- 12 g
- Pneumatic connection, port 1
- For tubing outer diameter of 12 mm
- Colour of release ring
- Blue
- Material housing
- PBT
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- Product type
- Reduction fittings, plugs, nipple pipes, and end caps C
- Product group
- Pneumatics
- Outer hose diameter
- 12 mm
- Material
- composite
- Temperature min
- -10 °C
- Temperature max
- 80 °C
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.0833 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 39269097
- HS code
- 3926.90
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4052568033422
- MPN 153266
