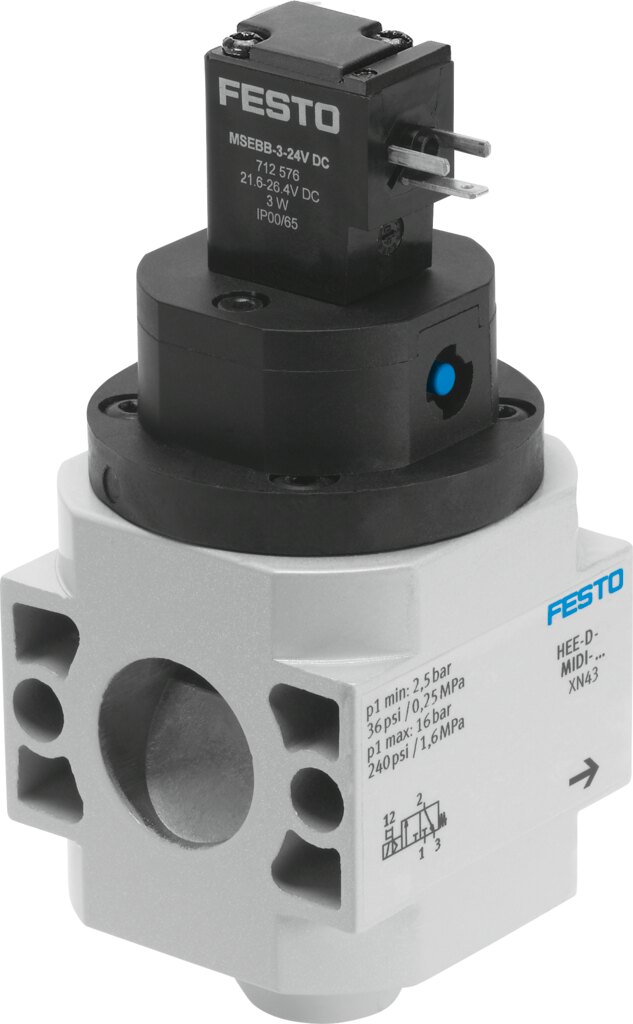

Festo HEE Inflation valve Midi - Electrical, Spring, HEE, HEE-D-MIDI-230
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo HEE Inflation valve Midi. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: activation Electrical, return Spring, series HEE, supplier type designation HEE-D-MIDI-230. Supplied under manufacturer part number 172961, EAN 4052568140809, HS code 8481.20, country of origin Hungary.
Technical Specifications
- Design
- Piston gate valve Type of actuation: Electrical Sealing principle: Soft Exhaust-air function: Cannot be throttled Manual override: Detenting Type of reset: Mechanical spring Type of piloting: Piloted Symbol: 00991008 Valve function: 3/2-way, single solenoid, closed Operating pressure: 0.25 ... 1.6 MPa (2.5 ... 16 bar) lap: Overlap Duty cycle: 100% Characteristic coil data: 230 V AC: 50/60 Hz, pick-up power 5.0 VA, holding power 3.7 VA Permissible voltage fluctuations: -14% / +10% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) LABS (PWIS) conformity: VDMA24364-B1/B2-L Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C CE mark (see declaration of conformity): To EU Low Voltage Directive UKCA marking (see declaration of conformity): To UK regulations for electrical equipment Type of mounting: Inline installation; With accessories Mounting position: Any Flow direction: Non-reversible Product weight: 500 g Pneumatic connection, port 3: G1/4 Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas Electrical connection: Type C; Plug; To DIN EN 175301-803 Signal status display: With accessories material seals: NBR material housing: Die-cast aluminium EAN / GTIN: 4052568140809 Festo type code: HEE-D-MIDI-230 Festo order number: 172961 Product type: Air treatment Product group: Pneumatics Activation: electric Return: Spring Series: HEE Carbon footprint (EPD): 3.1117 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84812090 HS code: 8481.20 Manufacturer part number: 172961
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568140809
- MPN 172961
Product Documentation
More from Festo
Festo
Festo CPV Separator Plate - CPV18-DZP
163282
Festo
Festo DSNU Round cylinder double-acting - 63mm, G3/8", 100mm, DSNU-63-100-PPS-A
559329
Festo
Festo DGSL Mini Slide - M3, DGSL-8-80-P1A
543937
Festo
Festo LRS Pressure regulator Mini - 1/8", 0,5 - 7bar, LRS-1/8-D-7-O-I-MINI
194609
Festo
Festo LFR Service Unit Maxi automatic - 1/2", 0,5 - 12bar, 40MY, LFR-1/2-D-MAXI-KC-A
186044
Festo
Festo VUVG-L10 Solenoid Valve - 4052568104801
578162
Festo
Festo AEVC Short stroke cylinder - 16mm, M5, 25mm, AEVC-16-25-A-P
188107
Festo
Festo DZH Flat cylinder - 50mm, 50mm, DZH-50-50-PPV-A
14065
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 172961?
- 172961 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 172961.
- What is the HS code for 172961?
- The customs tariff (HS) code for 172961 is 8481.20.
- Who manufactures 172961?
- 172961 is a Festo product in the Pneumatics range.
- Is a datasheet available for 172961?
- Yes — the 172961 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 172961?
- The minimum order quantity is 1.
- Is 172961 available?
- Yes — 172961 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
