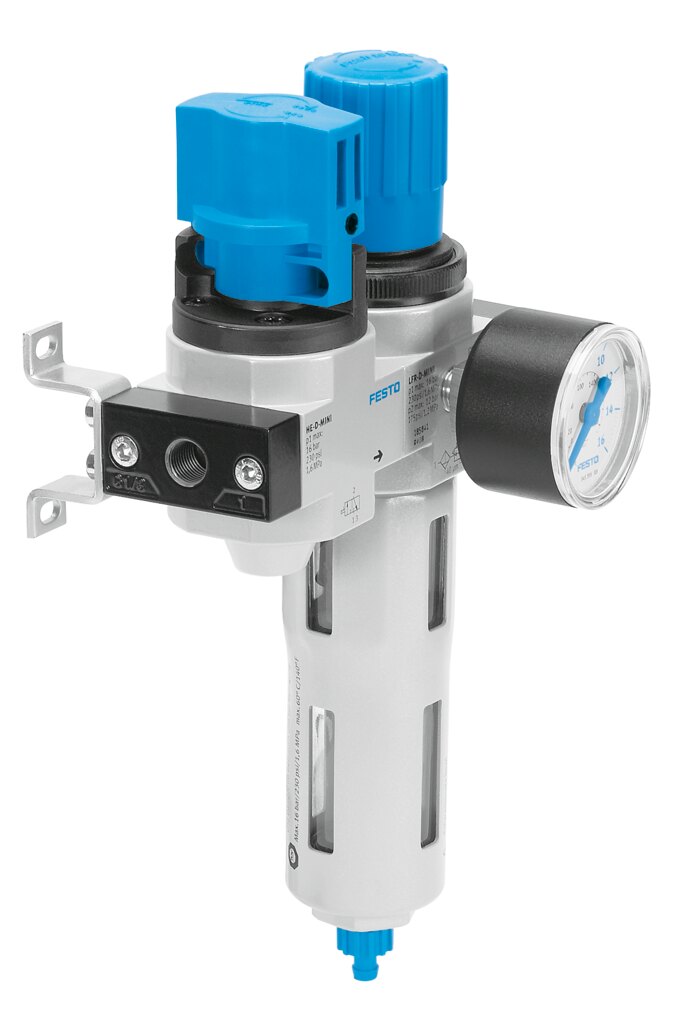

Festo LFR Service Unit Maxi automatic - 1/2", 0,5 - 12bar, 40MY, LFR-1/2-D-MAXI-KC-A

Festo LFR Service Unit Maxi automatic. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/2", press area 0.5 to 12 bar, filter element 40 My, supplier type designation LFR-1/2-D-MAXI-KC-A. Supplied under manufacturer part number 186044, EAN 4052568146429, HS code 8481.10, country of origin Hungary.

Size

Maxi Series: D Actuator lock: Rotary knob with detent Mounting position: Vertical +/-5° Grade of filtration: 40 µm Condensate drain: Fully automatic Design: On/off valve; Filter controller with pressure gauge Max. condensate volume: 80 ml Bowl guard: Metal bowl guard Symbol: 00991756 Pressure gauge (analogue) or Pressure display (digital): With pressure gauge Operating pressure: 0.2 ... 1.2 MPa (2 ... 12 bar) (29 ... 174 psi) Pressure regulation range: 0.05 ... 1.2 MPa (0.5 ... 12 bar) (7.25 ... 174 psi) Max. pressure hysteresis: 0.02 MPa (0.2 bar) (2.9 psi) Standard nominal flow rate (standardised to DIN 1343): 8100 l/min Operating medium: Inert gas LABS (PWIS) conformity: VDMA24364-B1/B2-L Air purity class at output: Compressed air to ISO 8573-1:2010 [7:8:4]; Inert gas Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C Product weight: 2300 g Type of mounting: With accessories Pneumatic connection, port 1: G1/2 Pneumatic connection, port 2: G1/2 material housing: Die-cast zinc material bowl: Makrolon® EAN / GTIN: 4052568146429 Festo type code: LFR-1/2-D-MAXI-KC-A Festo order number: 186044 Product type: Air treatment Product group: Pneumatics Thread: 1/2" Press Area: 0.5 to 12 bar Filter element: 40 My Carbon footprint (EPD): 32.3889 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84811005 HS code: 8481.10 Manufacturer part number: 186044

HS Code

8481.10

• EAN 4052568146429
• MPN 186044
