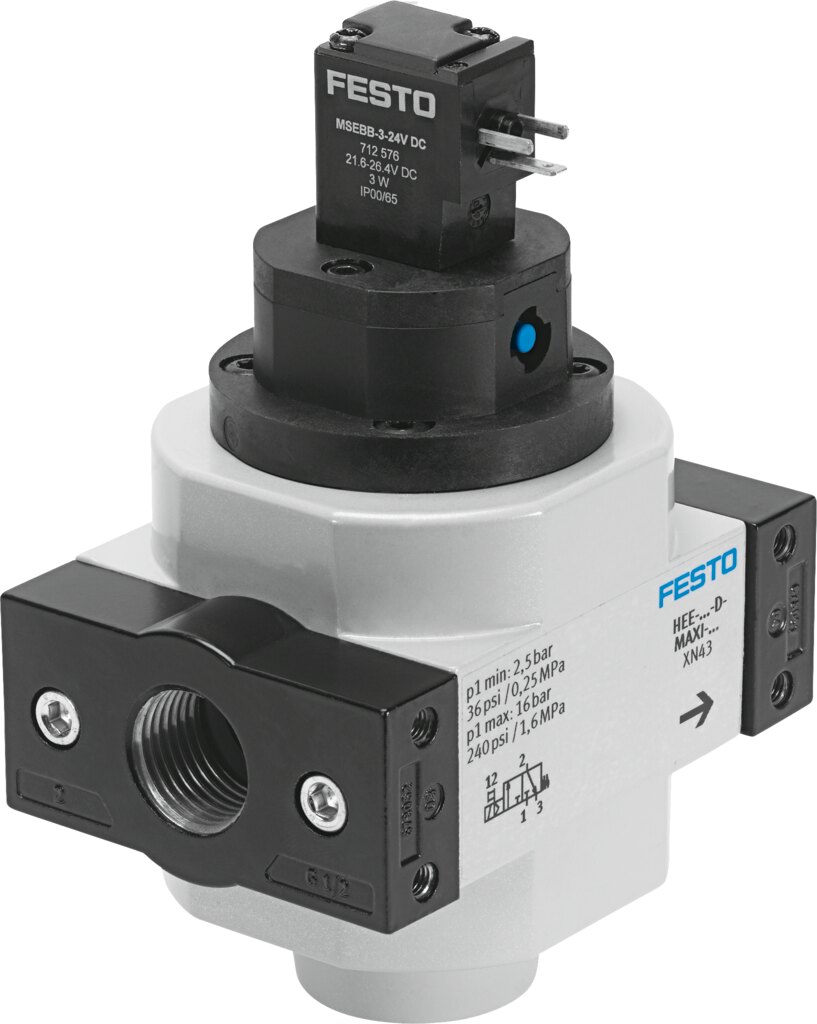

Festo HEE-1-D-MAXI-230 On/off valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo HEE-1-D-MAXI-230 — On/off valve, compressed air preparation. valve function 3/2-way, single solenoid, closed; operating pressure 0.25. 1.6 MPa (2.5. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 172955 Type code: HEE-1-D-MAXI-230 EAN / GTIN: 4052568140762 Product category: Compressed air preparation Lifecycle status: Phase-out Design: Piston gate valve Type of actuation: Electrical Sealing principle: Soft Exhaust-air function: Cannot be throttled Manual override: Detenting Type of reset: Mechanical spring Type of piloting: Piloted Symbol: 00991008 Valve function: 3/2-way, single solenoid, closed Operating pressure: 0.25 ... 1.6 MPa (2.5 ... 16 bar) lap: Overlap C value: 27.6 l/sbar b value: 0.32 Standard nominal flow rate (standardised to DIN 1343): 6500 l/min Duty cycle: 100% Characteristic coil data: 230 V AC: 50/60 Hz, pick-up power 5.0 VA, holding power 3.7 VA Permissible voltage fluctuations: -14% / +10% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas Corrosion resistance class CRC: 2 - Moderate corrosion stress LABS (PWIS) conformity: VDMA24364-B1/B2-L Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C CE mark (see declaration of conformity): To EU Low Voltage Directive UKCA marking (see declaration of conformity): To UK regulations for electrical equipment Type of mounting: Inline installation, With accessories Mounting position: Any Flow direction: Non-reversible Product weight: 800 g Pneumatic connection, port 1: G1 Pneumatic connection, port 2: G1 Pneumatic connection, port 3: G3/8 Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas Electrical connection: Type C, Plug, To DIN EN 175301-803 Signal status display: With accessories material seals: NBR material housing: Die-cast aluminium Product type: Air treatment Product group: Pneumatics Thread: 1" Activation: electric Return: Spring Series: HEE Carbon footprint (EPD): 9.2056 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84812090 HS code: 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568140762
- MPN 172955
Product Documentation
