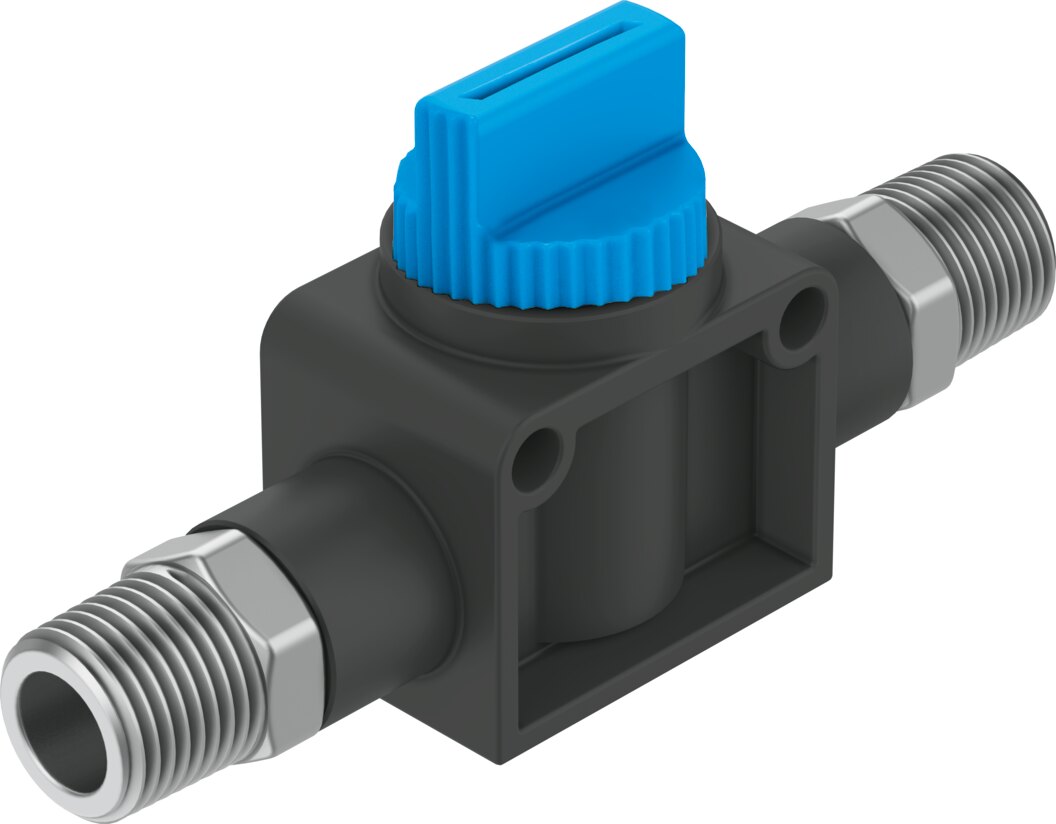

Festo HE-3-3/8-3/8 Shut-off valve

Festo HE-3-3/8-3/8 — Shut-off valve, ball valves and on off valves. valve function 3/2-way, double solenoid; operating pressure -0.095. 1 MPa (-0.95. 10 bar); nominal size 4.7 mm.

Manufacturer part number (MPN)

153298

Type code

HE-3-3/8-3/8

EAN / GTIN

4052568033668

Product category

Ball valves and on off valves

Valve function

3/2-way, double solenoid

Selection of additional functions

With exhaust function

Pneumatic connection, port 1

R3/8

Pneumatic connection, port 2

R3/8

Type of actuation

Manual

Type of mounting

Direct mounting via through-hole, Direct mounting via thread

Standard nominal flow rate (standardised to DIN 1343)

797.4 l/min

Nominal size

4.7 mm

Operating pressure

-0.095 ... 1 MPa (-0.95 ... 10 bar)

Ambient temperature

0 ... 60 °C

Material housing

Reinforced PBT

Operating medium

Compressed air to ISO 8573-1:2010 [7:-:-]

Exhaust-air function

Cannot be throttled

Sealing principle

Soft

Mounting position

Any

Design

Piston gate valve

Type of piloting

Direct

Flow direction

Non-reversible

Symbol

00997329

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 4 according to ISO 14644-1

Media temperature

0 ... 60 °C

Product weight

79 g

Pneumatic connection, port 3

Not ducted

Material screwed plug

Nickel-plated brass

Material seals

NBR

Product type

Pneumatic flow valves

Product group

Pneumatics

Thread

3/8"

Carbon footprint (EPD)

2.2212 kg CO2e per pcs

Country of origin

Japan

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20

• EAN 4052568033668
• MPN 153298
