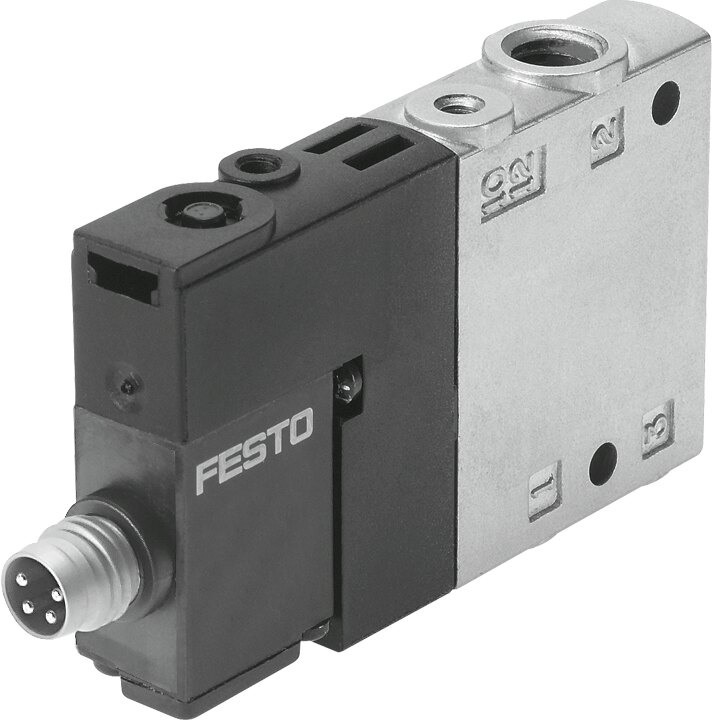

Festo CPE10-M1CH-3GL-M7 Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE10-M1CH-3GL-M7 — Solenoid valve, valves and valve terminals. valve function 3/2-way, single solenoid, closed; operating pressure 0.25. 0.8 MPa (2.5. 8 bar); nominal size 4 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 550233
- Type code
- CPE10-M1CH-3GL-M7
- EAN / GTIN
- 4052568192167
- Product category
- Valves and valve terminals
- Valve function
- 3/2-way, single solenoid, closed
- Type of actuation
- Electrical
- Construction width
- 10 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 400 l/min
- pneumatic working port
- M7
- Operating voltage
- 24 V DC
- Operating pressure
- 0.25 ... 0.8 MPa (2.5 ... 8 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP65, IP67, with plug socket, To IEC 60529
- Nominal size
- 4 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991655
- Valve position code
- Label holder
- lap
- Overlap
- Switching time off
- 14 ms
- Switching time on
- 14 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1200 µs
- Max. negative test pulse with 1 signal
- 900 µs
- Characteristic coil data
- 24 V DC: 1.28 W
- Permissible voltage fluctuations
- -15% / +10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Max. tightening torque connector
- 0.4 Nm
- Product weight
- 40 g
- Electrical connection
- M8x1
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M3
- Pilot air port 12
- M3
- Pneumatic connection, port 1
- M7
- Pneumatic connection, port 2
- M7
- Pneumatic connection, port 3
- M7
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- M7"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 0.8959 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568192167
- MPN 550233
Product Documentation
More from Festo
Festo
Festo VUVS-L20-M32U-AD-G18-F7-1C1 Solenoid valve
575270
Festo
Festo VMPA1-M1H-D-S-M7-PI Solenoid valve
533393
Festo
Festo NPQH-D-G14-Q10-P10 Push-in fitting
578343
Festo

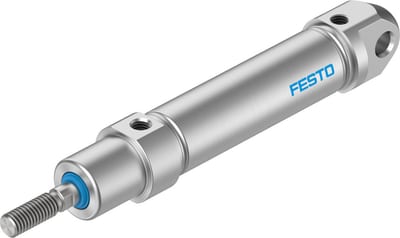

Festo CRDSNU-B-16-125-P-A-MG-A1 ISO cylinder
8073765
Festo

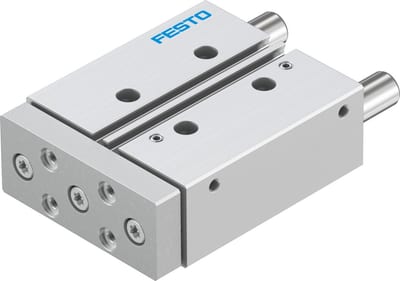

Festo DFM-20-50-P-A-GF Guided drive
170844
Festo

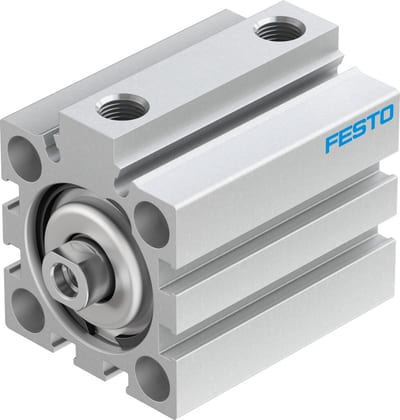

Festo ADVC Short stroke cylinder - 32mm, G1/8, 25mm, ADVC-32-25-I-P-A
188208
Festo
Festo CLR-50-20-G-P-A Linear/swivel clamp
535461
Festo

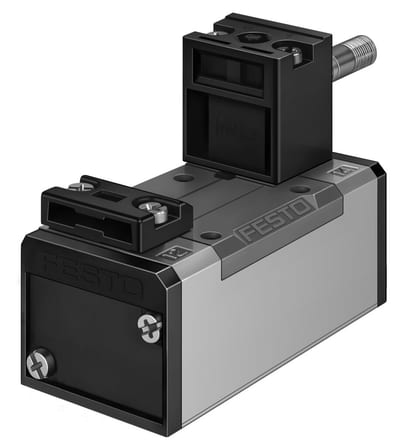

Festo MFH-5/2-D-1-FR-C Solenoid valve
