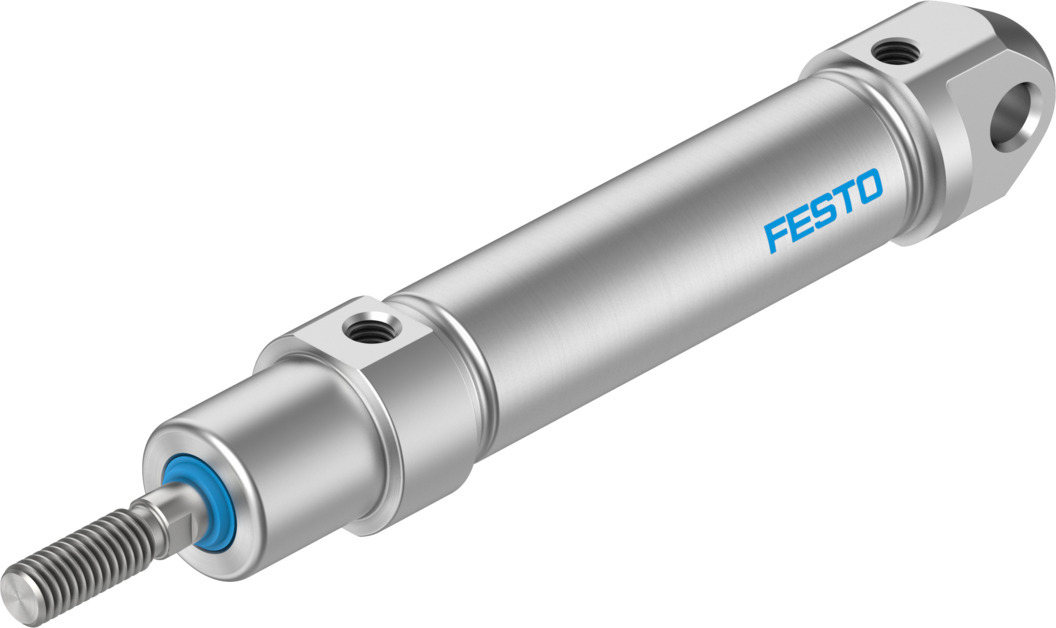

Festo CRDSNU-B-16-125-P-A-MG-A1 ISO cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CRDSNU-B-16-125-P-A-MG-A1 — ISO cylinder, stainless steel pneumatic cylinders. stroke 125 mm; piston diameter 16 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 8073765
- Type code
- CRDSNU-B-16-125-P-A-MG-A1
- EAN / GTIN
- 4052568298050
- Product category
- Stainless steel pneumatic cylinders
- Stroke
- 125 mm
- Piston diameter
- 16 mm
- Based on standard
- ISO 6432
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston, Piston rod, Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 4 - Very high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitable for use with food
- See supplementary material information
- Ambient temperature
- 0 ... 80 °C
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 104 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 121 N
- Moving mass for 0 mm stroke
- 21 g
- Additional moving mass per 10 mm stroke
- 2.2 g
- Basic weight for 0 mm stroke
- 130 g
- Additional weight per 10 mm stroke
- 4.8 g
- Type of mounting
- With accessories
- Pneumatic connection
- M5
- Material cover
- High-alloy stainless steel
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- High-alloy stainless steel
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- M5"
- Carbon footprint (EPD)
- 2.6152 kg CO2e per pcs
- Country of origin
- India
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
