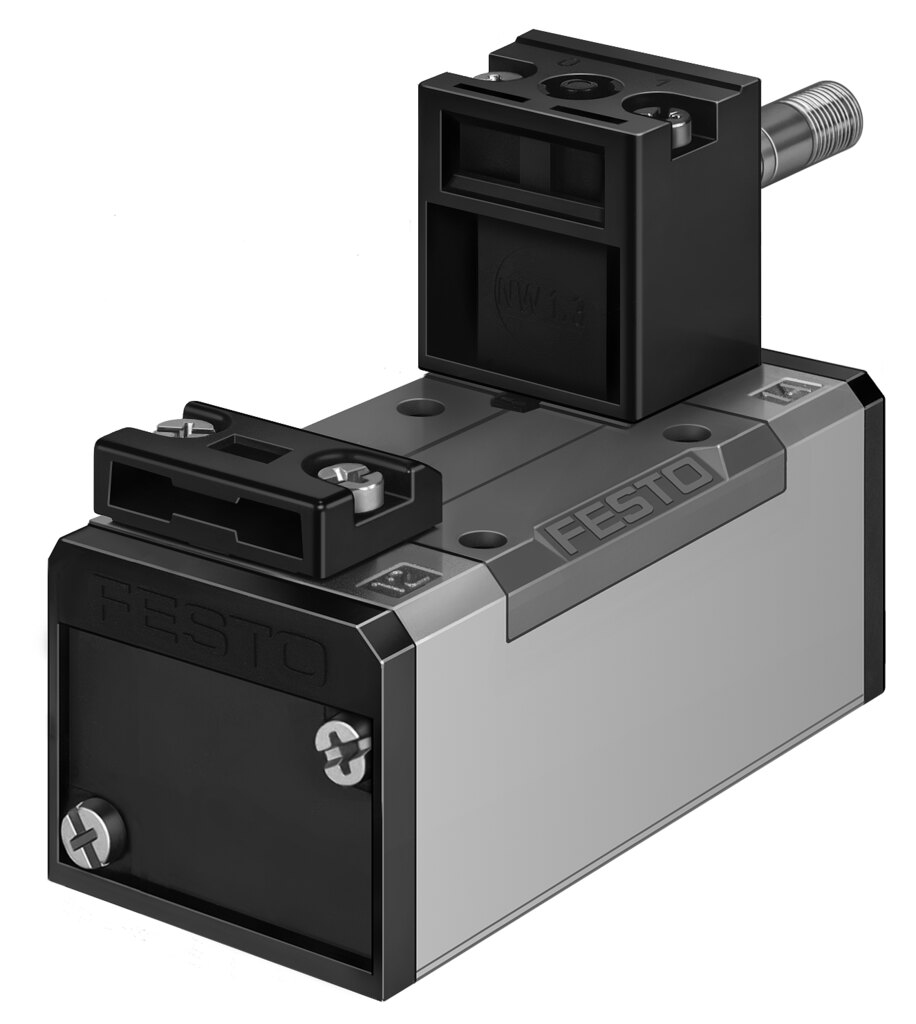

Festo MFH-5/2-D-1-FR-C Solenoid valve

Festo MFH-5/2-D-1-FR-C — Solenoid valve, standards-based directional control valves. valve function 5/2-way, single solenoid; operating pressure 0.3. 1 MPa (3. 10 bar); conforms to standard ISO 5599-1.

Manufacturer part number (MPN)

151016

Type code

MFH-5/2-D-1-FR-C

EAN / GTIN

4052568010508

Product category

Standards-based directional control valves

Lifecycle status

Phase-out

Valve function

5/2-way, single solenoid

Type of actuation

Electrical

Construction width

42 mm

Standard nominal flow rate (standardised to DIN 1343)

1200 l/min

pneumatic working port

Sub-base size 1 to ISO 5599-1, G1/4

Operating voltage

Via solenoid coil, must be ordered separately

Operating pressure

0.3 ... 1 MPa (3 ... 10 bar)

Design

Piston gate valve

Type of reset

Mechanical spring

Approval

c UL us - Recognised (Oil)

Maritime classification

See certificate

Certificate issuing authority

UL MH19482

Degree of protection

IP65

Nominal size

8 mm

Grid dimension

43 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Conforms to standard

ISO 5599-1

Manual override

Detenting via accessory, Non-detenting

ISO code

152

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991003

lap

Overlap

Suitability for vacuum

No

Switching time off

45 ms

Switching time on

16 ms

Max. positive test pulse with 0 signal

2200 µs

Max. negative test pulse with 1 signal

3700 µs

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-10 ... 60 °C

Sound pressure level

85 dB(A)

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-5 ... 40 °C

Product weight

390 g

Electrical connection

3-pin, Type A, with VACF-A coil, Type B industry (11 mm), with MSF coil, Via solenoid coil, to be ordered separately

Type of mounting

On sub-base, with through-hole

Pilot exhaust port 84

M5

Pilot air port 12

Sub-base size 1 to ISO 5599-1

Pilot air port 14

Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 1

Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 2

Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 3

Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 4

Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 5

Sub-base size 1 to ISO 5599-1

Material seals

HNBR, NBR

Material housing

Die-cast aluminium

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Carbon footprint (EPD)

4.8206 kg CO2e per pcs

Country of origin

Hungary

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
