Festo
Festo FENG-32-400-KF Guide unit
Part number150290EAN / GTIN4052568004286HS code8412.90
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

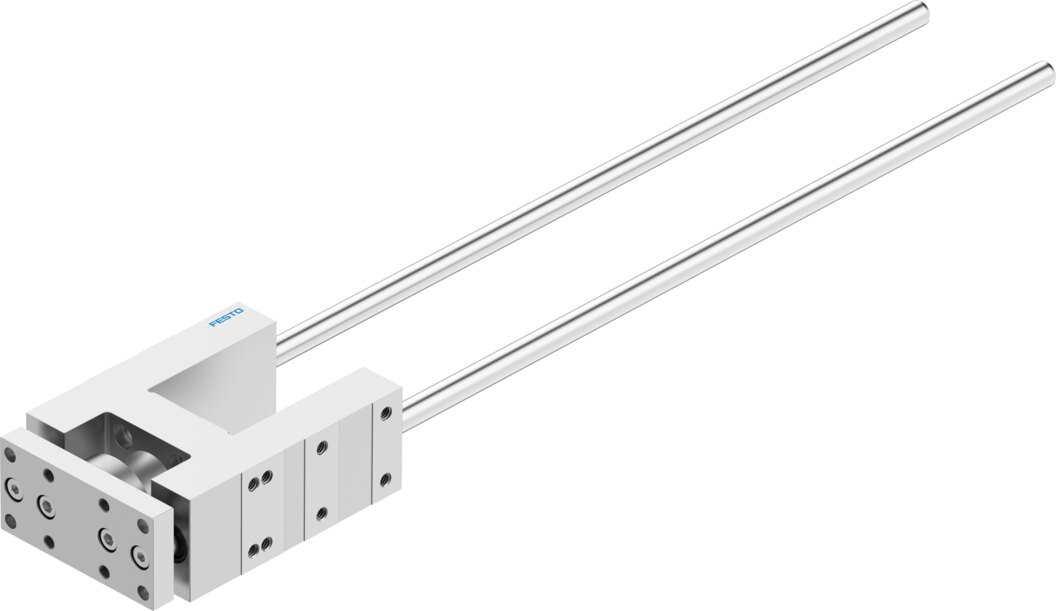

Festo FENG-32-400-KF — Guide unit, linear guides. stroke 400 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 150290
- Type code
- FENG-32-400-KF
- EAN / GTIN
- 4052568004286
- Product category
- Linear guides
- Size
- 32
- Stroke
- 400 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Explosion protection
- The information in the certificate must be observed!
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 ... 80 °C
- Max. force Fy
- 750 N
- Max. force Fy static
- 1020 N
- Max. force Fz
- 750 N
- Max. force Fz static
- 1020 N
- Max. moment Mx
- 28 Nm
- Max. torque Mx static
- 38 Nm
- Max. moment My
- 34 Nm
- Max. torque My static
- 46 Nm
- Max. moment Mz
- 34 Nm
- Max. torque Mz static
- 46 Nm
- Displacement force
- 15 N
- Product weight
- 2250 g
- Type of mounting
- With female thread
- Material guide component
- Tempered steel
- Material housing
- Anodised wrought aluminium alloy
- Material yoke plate
- Anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 41.0875 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84129070
- HS code
- 8412.90
Standards & Compliance
- HS Code
- 8412.90
Cross References
- EAN 4052568004286
- MPN 150290
Product Documentation
Document preview: FENG-32-400-KF — Festo product documentation
More from Festo
Festo
Festo DGSL-10-100-P1A Mini slide
543955
Festo
Festo DZF-18-50-A-P-A Flat cylinder
161240
Festo
Festo NPFC-S-2G18-F Coupling sleeve
8030291
Festo
Festo VUVS-L20-B52-ZD-G18-F7 Solenoid valve
575682
Festo
Festo VABM-B10-25S-G38-3-P3 Manifold block
8026298
Festo
Festo NPQR-D-Q14-E Plug
8085702
Festo
Festo SNC-80 Swivel flange
174387
Festo
Festo ADNGF-25-20-P-A Compact cylinder
554232
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 150290?
- 150290 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 150290.
- What is the HS code for 150290?
- The customs tariff (HS) code for 150290 is 8412.90.
- Who manufactures 150290?
- 150290 is a Festo product in the Pneumatics range.
- Is a datasheet available for 150290?
- Yes — the 150290 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 150290?
- The minimum order quantity is 1.
- Is 150290 available?
- Yes — 150290 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
