Festo

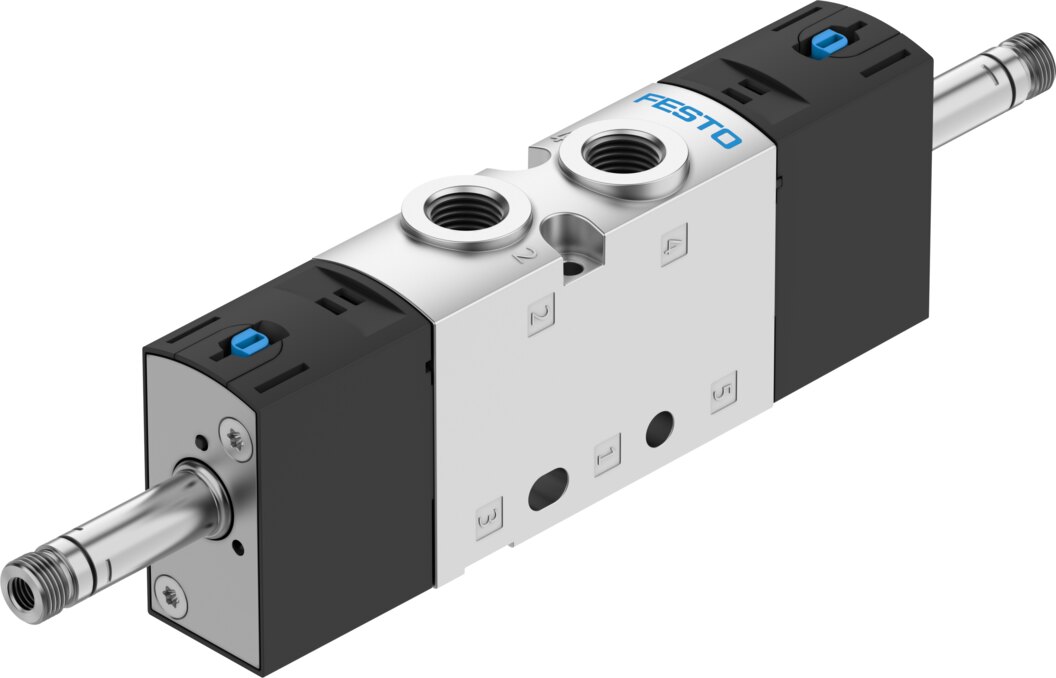

Festo VUVS-L20-B52-ZD-G18-F7 Solenoid valve
Part number575682EAN / GTIN4052568224073HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVS-L20-B52-ZD-G18-F7 — Solenoid valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 5.7 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 575682
- Type code
- VUVS-L20-B52-ZD-G18-F7
- EAN / GTIN
- 4052568224073
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 21 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 700 l/min
- pneumatic working port
- G1/8
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Approval
- c UL us - Recognised (Oil)
- Nominal size
- 5.7 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991016
- lap
- Overlap
- Pilot pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- b value
- 0.35
- C value
- 2.9 l/sbar
- Switching time reversal
- 10 ms
- Max. positive test pulse with 0 signal
- 1900 µs
- Max. negative test pulse with 1 signal
- 2700 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 225 g
- Type of mounting
- On manifold rail, with through-hole
- Breather connection
- Not ducted
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- HNBR, NBR
- Material housing
- Die-cast aluminium, painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Galvanised steel
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 4.9143 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568224073
- MPN 575682
Product Documentation
Document preview: VUVS-L20-B52-ZD-G18-F7 — Festo product documentation
More from Festo
Festo

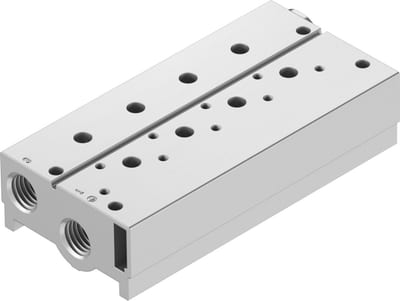

Festo VABM-B10-25S-G38-3-P3 Manifold block
8026298
Festo

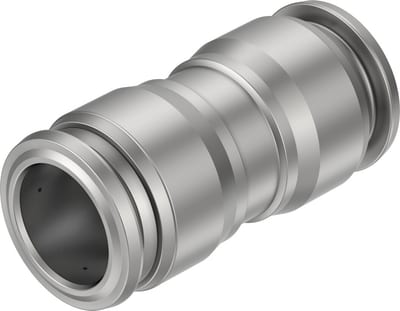

Festo NPQR-D-Q14-E Plug
8085702
Festo

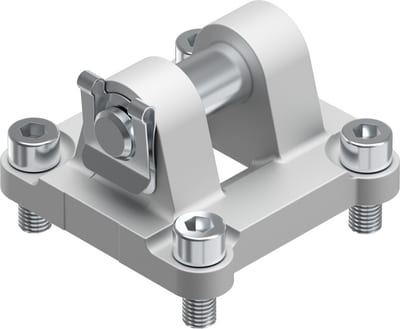

Festo SNC-80 Swivel flange
174387
Festo

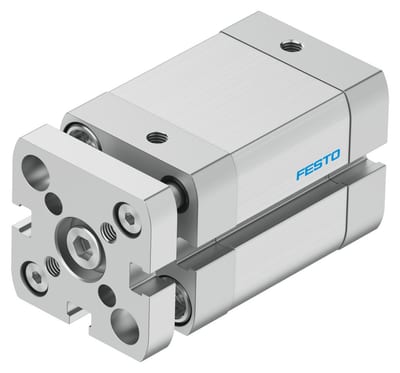

Festo ADNGF-25-20-P-A Compact cylinder
554232
Festo

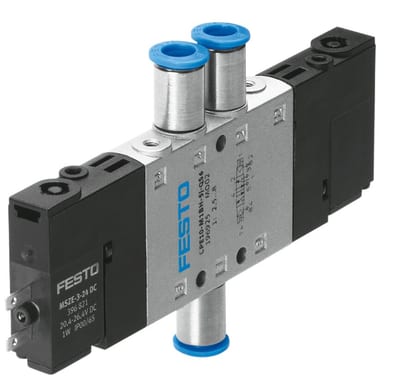

Festo CPE10-M1BH-5J-QS-4 Solenoid valve
196876
Festo

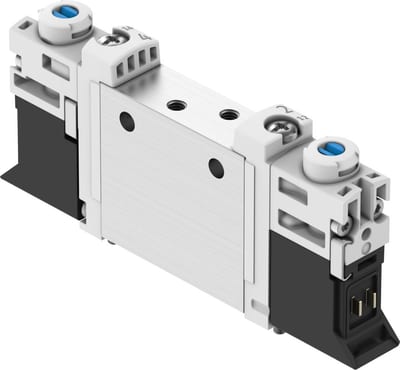

Festo VUVG-L10A-P53C-T-M3-1P3 Solenoid valve
566439
Festo
Festo DSNU-20-80-PPS-A ISO cylinder
559274
Festo

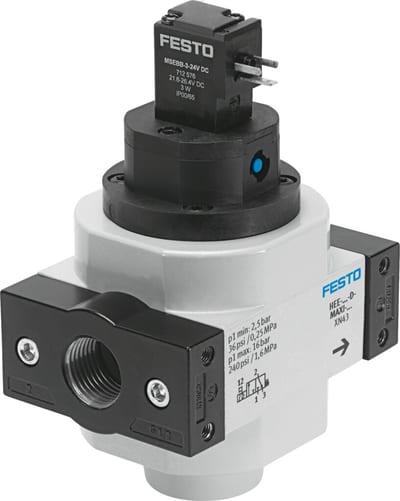

Festo HEE-1-D-MAXI-230 On/off valve
