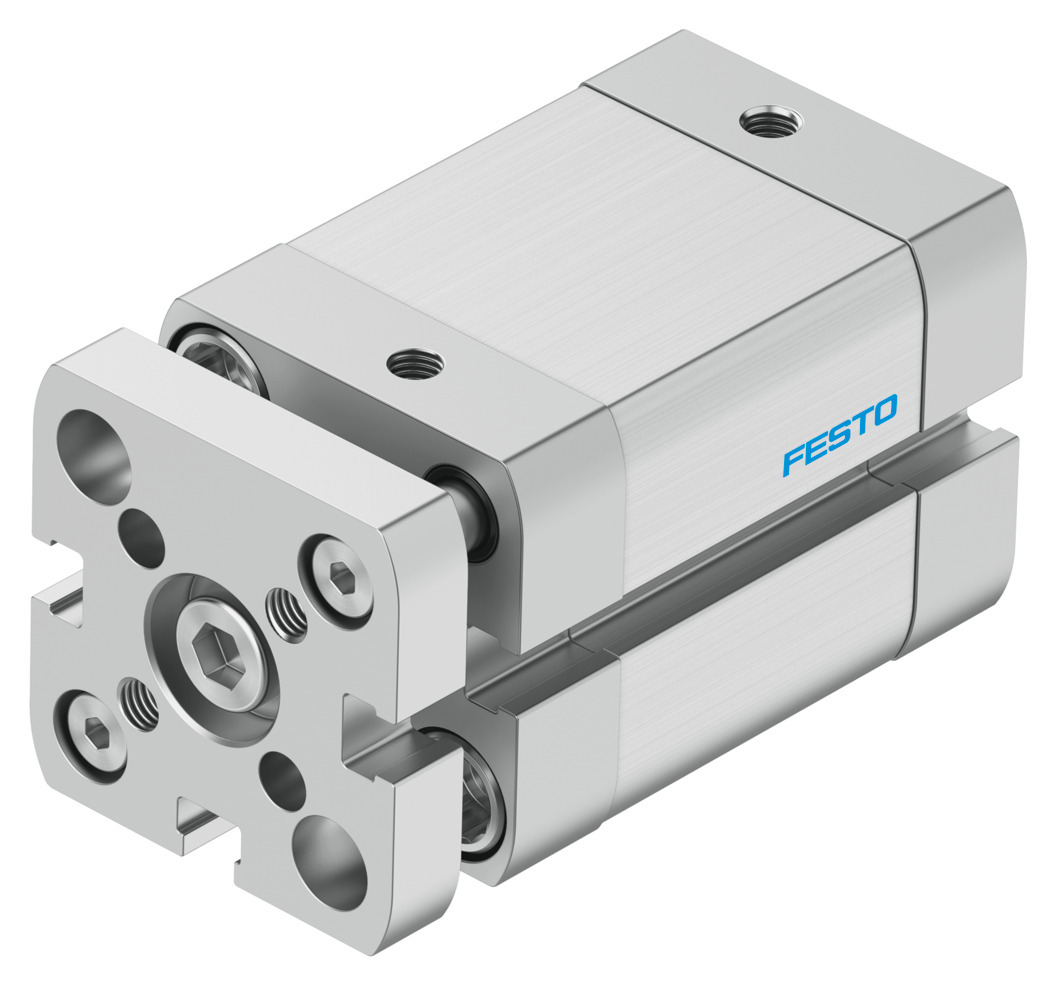

Festo ADNGF-25-20-P-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADNGF-25-20-P-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 20 mm; piston diameter 25 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 554232
- Type code
- ADNGF-25-20-P-A
- EAN / GTIN
- 4052568198596
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 20 mm
- Piston diameter
- 25 mm
- Based on standard
- ISO 21287
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston, Piston rod, Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.3 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 247 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 295 N
- Moving mass
- 94 g
- Product weight
- 263 g
- Pneumatic connection
- M5
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 5.0851 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568198596
- MPN 554232
Product Documentation
More from Festo
Festo
Festo CPE10-M1BH-5J-QS-4 Solenoid valve
196876
Festo
Festo VUVG-L10A-P53C-T-M3-1P3 Solenoid valve
566439
Festo
Festo DSNU-20-80-PPS-A ISO cylinder
559274
Festo
Festo HEE-1-D-MAXI-230 On/off valve
172955
Festo
Festo CPE24-M3H-5J-QS-12 Solenoid valve
163851
Festo

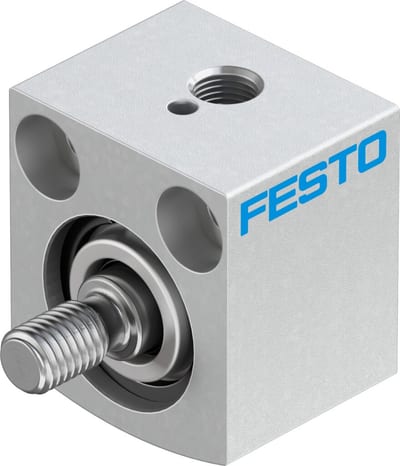

Festo AEVC Short stroke cylinder - 12mm, M5, 5mm, AEVC-12-5-A-P
188086
Festo

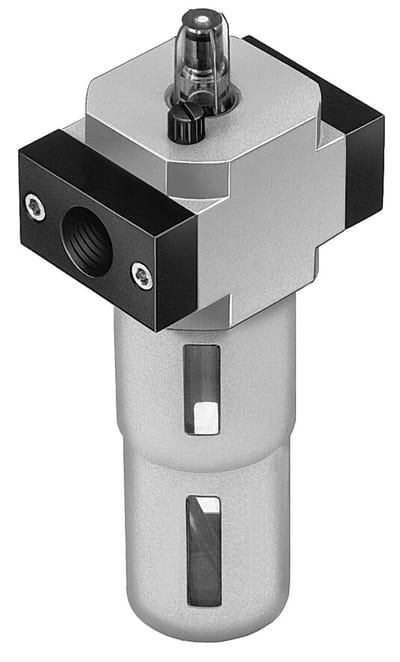

Festo LOE-3/4-D-MAXI Lubricator
159622
Festo

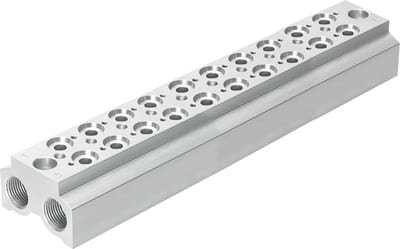

Festo CPE14-3/2-PRS-3/8-10 Manifold block
