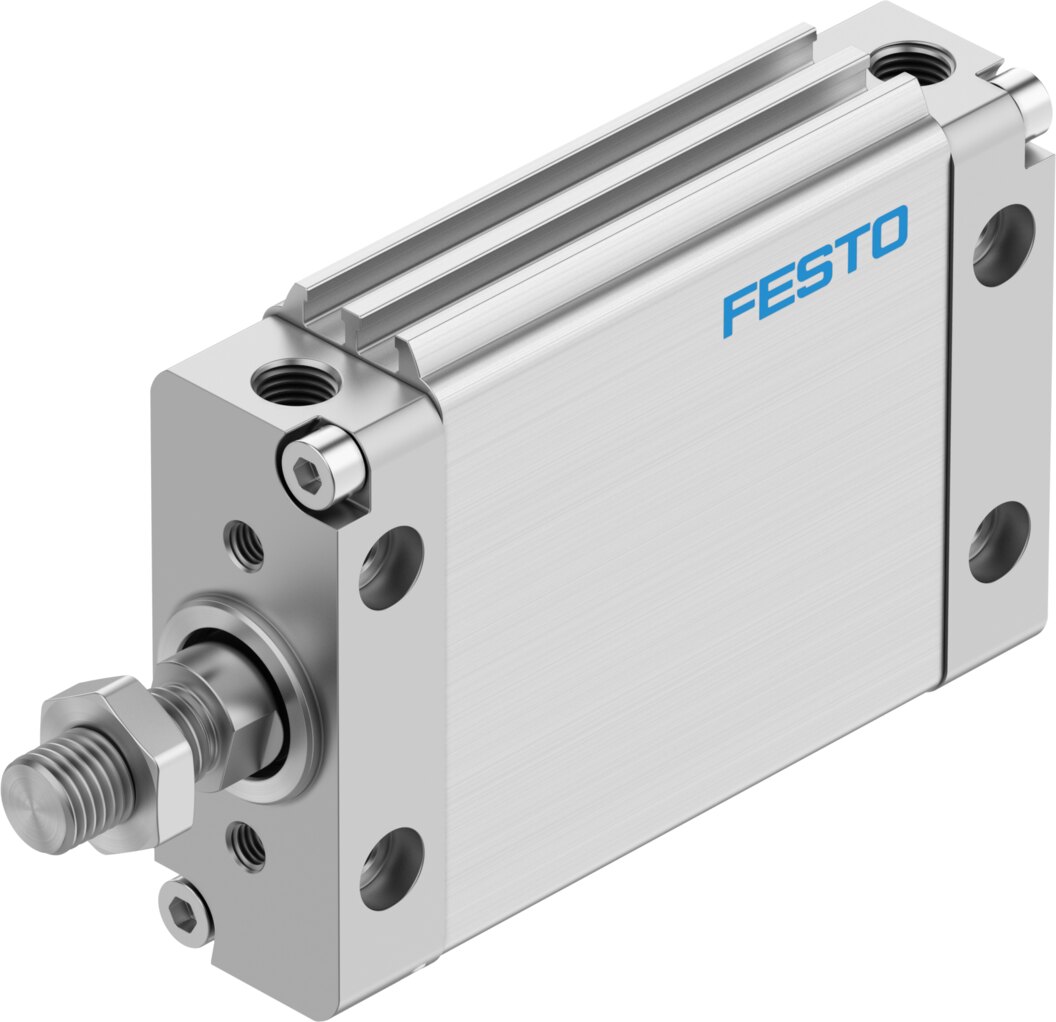

Festo DZF Flat cylinder - 40mm, 40mm, DZF-40-40-A-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DZF Flat cylinder. Pneumatics VDMA air cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 40 mm, stroke rate 40 mm, supplier type designation DZF-40-40-A-P-A. Supplied under manufacturer part number 161280, EAN 4052568128883, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 40 mm
- Piston diameter
- 40 mm; Equivalent diameter
- Piston rod thread
- M12x1.25
- Torsional backlash at piston rod +/-
- 0.6 deg
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Piston; Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Protection against torque/guide
- Oval piston
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.52 J
- Max. torque for protection against torsion
- 1 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 633 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 754 N
- Moving mass for 0 mm stroke
- 120 g
- Additional moving mass per 10 mm stroke
- 16 g
- Additional weight per 10 mm stroke
- 40 g
- Basic weight for 0 mm stroke
- 480 g
- Type of mounting
- With female thread; With accessories
- Pneumatic connection
- G1/8
- Material cover
- Die-cast aluminium
- Material seals
- NBR; TPE-U(PU)
- Material housing
- Anodised wrought aluminium alloy
- Material piston seal
- NBR
- Material piston rod
- High-alloy steel
- EAN / GTIN
- 4052568128883
- Festo type code
- DZF-40-40-A-P-A
- Festo order number
- 161280
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Diameter
- 40 mm
- Carbon footprint (EPD)
- 13.7908 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 161280
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568128883
- MPN 161280
