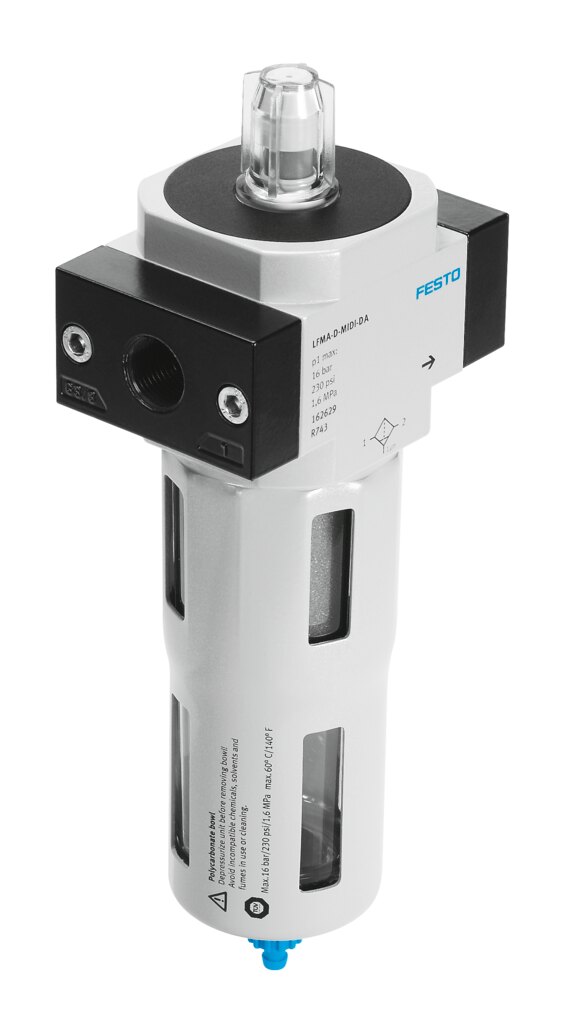

Festo LFMA Ultra Fine Filter Maxi manual - 1/2", 0.01MY, LFMA-1/2-D-MAXI-DA
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFMA Ultra Fine Filter Maxi manual. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/2", filter element 0.01 My, supplier type designation LFMA-1/2-D-MAXI-DA. Supplied under manufacturer part number 532850, EAN 4052568165864, HS code 8421.39, country of origin Hungary.
Technical Specifications
- Series
- D
- Size
- Maxi
- Design
- Fibre filter
- Grade of filtration
- 0.01 µm
- Condensate drain
- Manual, rotating
- Symbol
- 00991543
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Operating medium
- Compressed air to ISO 8573-1:2010 [6:4:4]; Inert gas
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [3:4:2]; Inert gas
- Max. standard flow rate for clean air class
- 1500 l/min
- Min. standard flow rate for clean air class
- 500 l/min
- Filter efficiency
- 99.9999 %
- Bowl guard
- Metal bowl guard
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- 1.5 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Filter efficiency, fine particles
- 99995 %
- MPPS
- 0.05 µm
- Filter efficiency MPPS
- 99.95 %
- Residual oil content
- 0.01 mg/m³
- Filter efficiency, oil aerosol
- 99 %
- Differential pressure display
- Visual indicator
- Type of mounting
- With accessories
- Mounting position
- Vertical +/-5°
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material housing
- Die-cast zinc
- Material filter
- Borosilicate fibre
- Material bowl
- Makrolon®
- Product weight
- 1340 g
- EAN / GTIN
- 4052568165864
- Festo type code
- LFMA-1/2-D-MAXI-DA
- Festo order number
- 532850
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Filter element
- 0.01 My
- Carbon footprint (EPD)
- 28.5358 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84213925
- HS code
- 8421.39
- Manufacturer part number
- 532850
