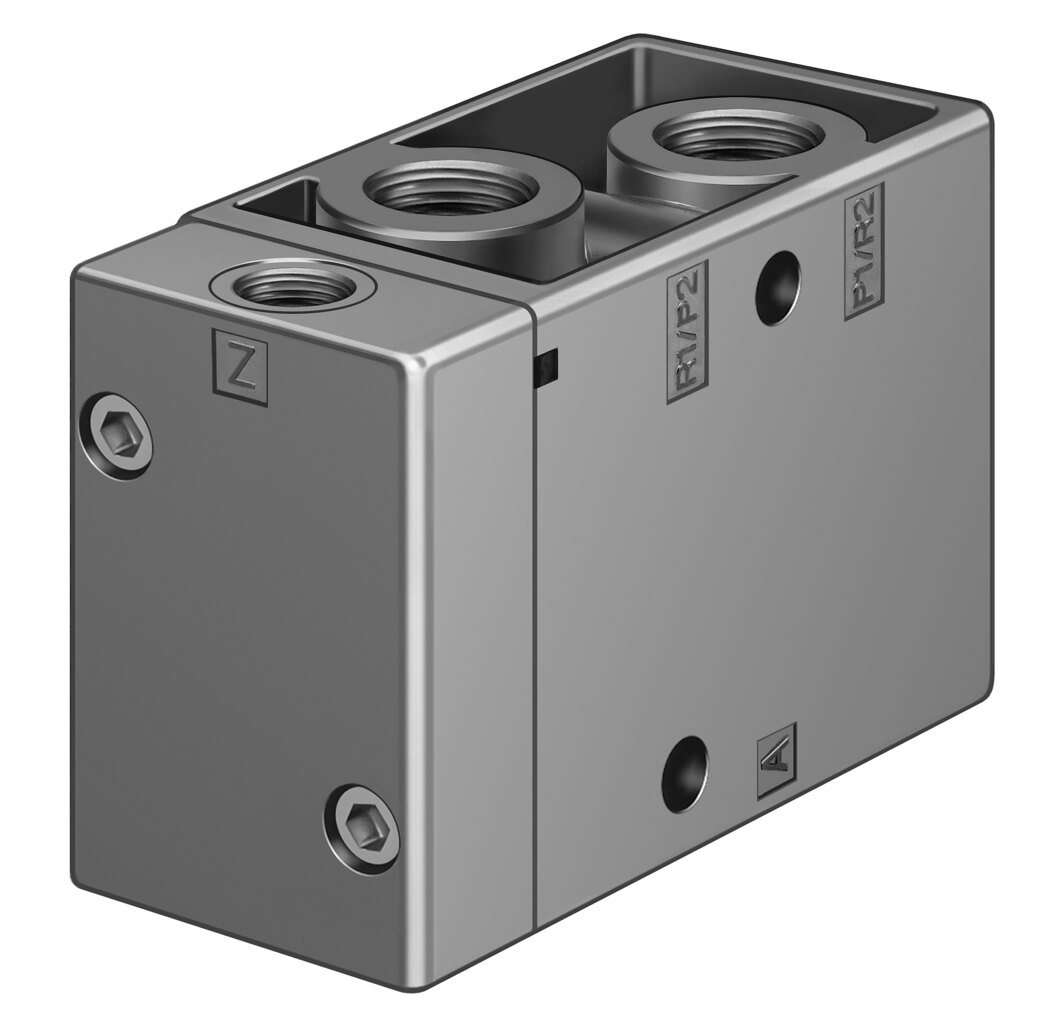

Festo VL/O Pneumatic valve - G1/8", Air, Spring, VL/O-3-1/8-B-EX
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VL/O Pneumatic valve. Pneumatic Valves Air-Controlled (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/8", activation Air, return Spring, supplier type designation VL/O-3-1/8-B-EX. Supplied under manufacturer part number 536028, EAN 4052568170578, HS code 8481.20, country of origin India.
Technical Specifications
- Valve function
- 3/2-way, monostable, open/closed
- Type of actuation
- Pneumatic
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 500 l/min
- pneumatic working port
- G1/8
- Operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar)
- Design
- Poppet seat
- Type of reset
- Mechanical spring
- Degree of protection
- IP65
- CE mark (see declaration of conformity)
- To EU Explosion Protection Directive (ATEX)
- UKCA marking (see declaration of conformity)
- To UK EX instructions
- ATEX category gas
- II 2G
- ATEX category dust
- II 2D
- Explosion ignition protection type for gas
- Ex h IIC T4 Gb
- Explosion ignition protection type for dust
- Ex h IIIC T130°C Db
- Explosion ambient temperature
- -10°C <= Ta <= +60°C
- Explosion protection certification outside the EU
- EPL Db (GB); EPL Gb (GB)
- Nominal size
- 5 mm
- Grid dimension
- 27 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Type of piloting
- Direct
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991030
- lap
- Underlap
- Pilot pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Max. switching frequency
- 12 Hz
- Switching time off
- 10 ms
- Switching time on
- 4 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Explosion protection
- Zone 1 (ATEX); Zone 1 (UKEX); Zone 2 (ATEX); Zone 21 (ATEX); Zone 21 (UKEX); Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 150 g
- Type of mounting
- On PR rail; With through-hole
- Breather connection
- M3
- Pilot air port 110
- G1/8
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 11
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic port 33
- G1/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568170578
- Festo type code
- VL/O-3-1/8-B-EX
- Festo order number
- 536028
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- Air
- Return
- Spring
- Carbon footprint (EPD)
- 3.2087 kg CO2e per pcs
- Country of origin
- India
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 536028
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568170578
- MPN 536028
