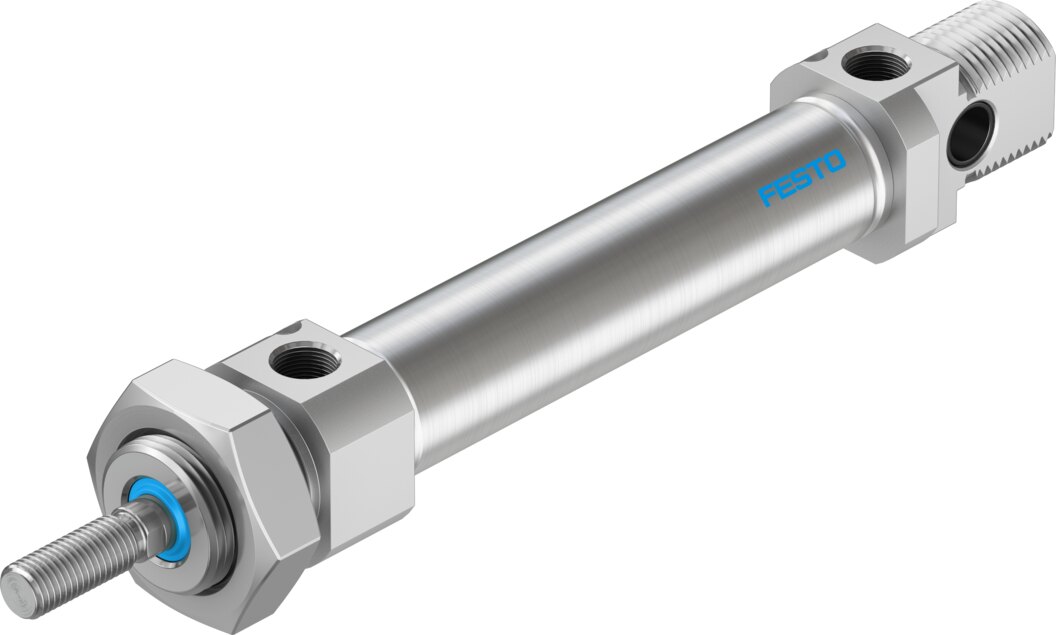

Festo DSNU-20-60-PPV-A ISO cylinder

Festo DSNU-20-60-PPV-A — ISO cylinder, round cylinders. stroke 60 mm; piston diameter 20 mm; operating pressure 0.1. 1 MPa (1. 10 bar).

Manufacturer part number (MPN)

1908294

Type code

DSNU-20-60-PPV-A

EAN / GTIN

4052568108755

Product category

Round cylinders

Stroke

60 mm

Piston diameter

20 mm

Piston rod thread

M8

Cushioning

Pneumatic cushioning, adjustable at both ends

Mounting position

Any

Conforms to standard

ISO 6432

Piston-rod end

Male thread

Design

Piston, Piston rod, Cylinder barrel

Position detection

Via proximity switch

Symbol

00991235

Variants

Piston rod at one end

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 6 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.2 J

Cushioning length

15 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

158.3 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

188.5 N

Moving mass for 0 mm stroke

44 g

Additional moving mass per 10 mm stroke

4 g

Basic weight for 0 mm stroke

186.8 g

Additional weight per 10 mm stroke

7.2 g

Type of mounting

With accessories

Pneumatic connection

G1/8

Material cover

Wrought aluminium alloy, Colourless anodised

Material seals

NBR, TPE-U(PU)

Material piston rod

High-alloy stainless steel

Material cylinder barrel

High-alloy stainless steel

Product type

Pneumatic ISO Air Cylinder

Product group

Pneumatics

Port Size

G1/8"

Temperature min

-20 °C

Temperature max

80 °C

Working pressure max

10 bar

Carbon footprint (EPD)

3.1107 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31
