Festo

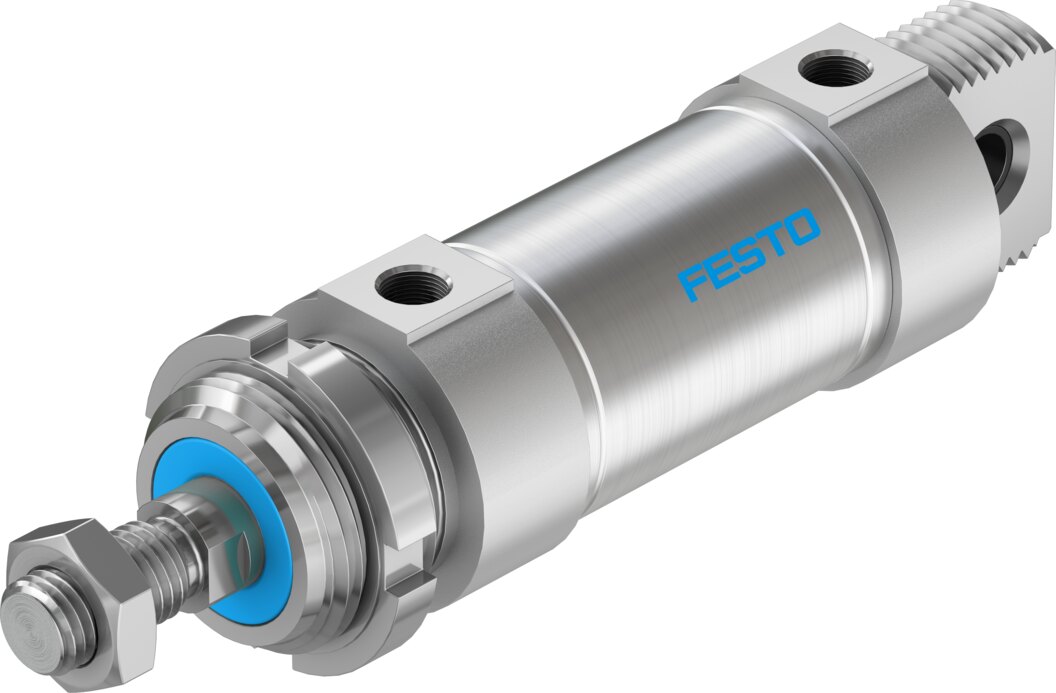

Festo DSNU-50-40-P-A Round cylinder
Part number196001EAN / GTIN4052568158521HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSNU-50-40-P-A — Round cylinder, round cylinders. stroke 40 mm; piston diameter 50 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 196001
- Type code
- DSNU-50-40-P-A
- EAN / GTIN
- 4052568158521
- Product category
- Round cylinders
- Stroke
- 40 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston, Piston rod, Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 989.6 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 1178.1 N
- Moving mass
- 513 g
- Product weight
- 1247 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/4
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- High-alloy stainless steel
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G1/4"
- Carbon footprint (EPD)
- 16.8610 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568158521
- MPN 196001
Product Documentation
Document preview: DSNU-50-40-P-A — Festo product documentation
