Festo

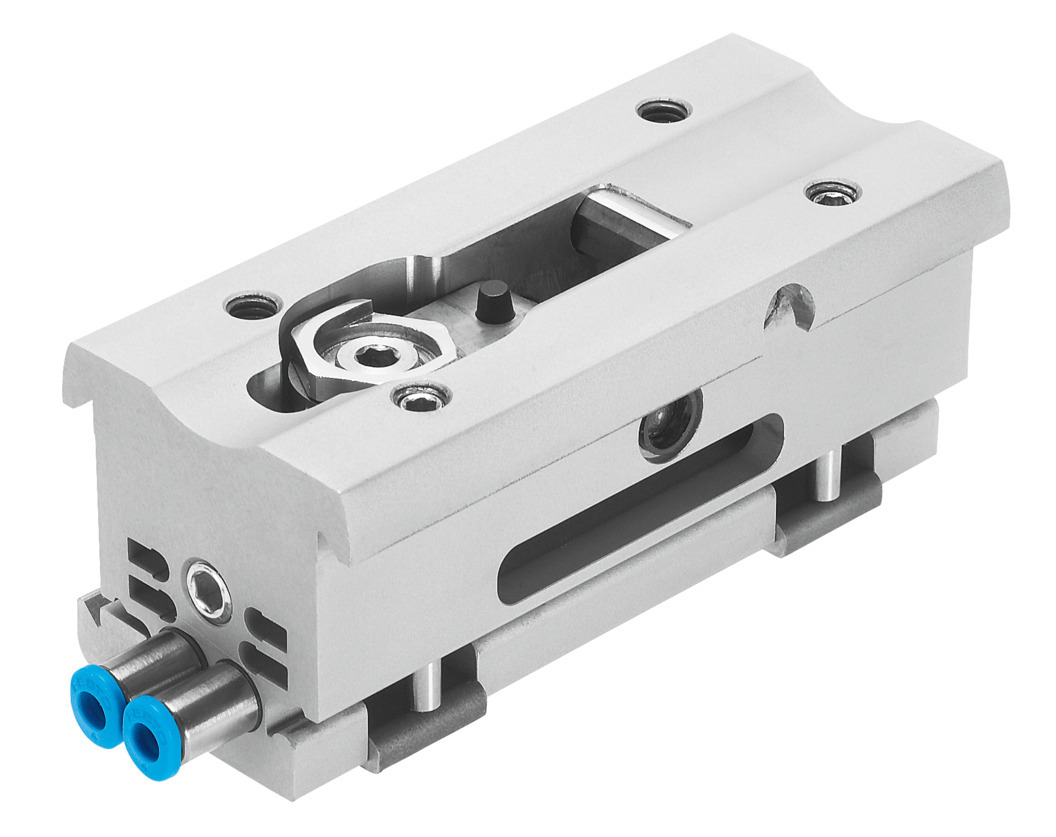

Festo DADM-DGC-25-A Intermediate-position module
Part number541700EAN / GTIN4052568016098HS code8479.89
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DADM-DGC-25-A — Intermediate-position module, drive-specific accessories. operating pressure 0.25. 0.8 MPa (2.5. 8 bar; 36.25. 116 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 541700
- Type code
- DADM-DGC-25-A
- EAN / GTIN
- 4052568016098
- Product category
- Drive-specific accessories
- Size
- 25
- Mounting position
- Any
- Position detection
- Via proximity switch
- Operating pressure
- 0.25 ... 0.8 MPa (2.5 ... 8 bar; 36.25 ... 116 psi)
- Max. impact speed
- 3 m/s
- Max. swivel time
- 100 ms
- Repetition accuracy
- 0.02 mm
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 430 g
- Type of mounting
- Clamped on cylinder DGC
- Pneumatic connection
- QS-4
- Material stop screw
- Steel, Galvanised
- Material seals
- NBR
- Material housing
- anodised
- Material lever
- High-alloy stainless steel
- Material clip
- High-alloy stainless steel
- Material nut
- Steel, Galvanised
- Fine adjustment
- 2 mm
- Mode of operation
- Double-acting
- Product type
- Pneumatic Cylinder Bracket
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 4.4275 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84798997
- HS code
- 8479.89
Standards & Compliance
- HS Code
- 8479.89
Cross References
- EAN 4052568016098
- MPN 541700
Product Documentation
Document preview: DADM-DGC-25-A — Festo product documentation
