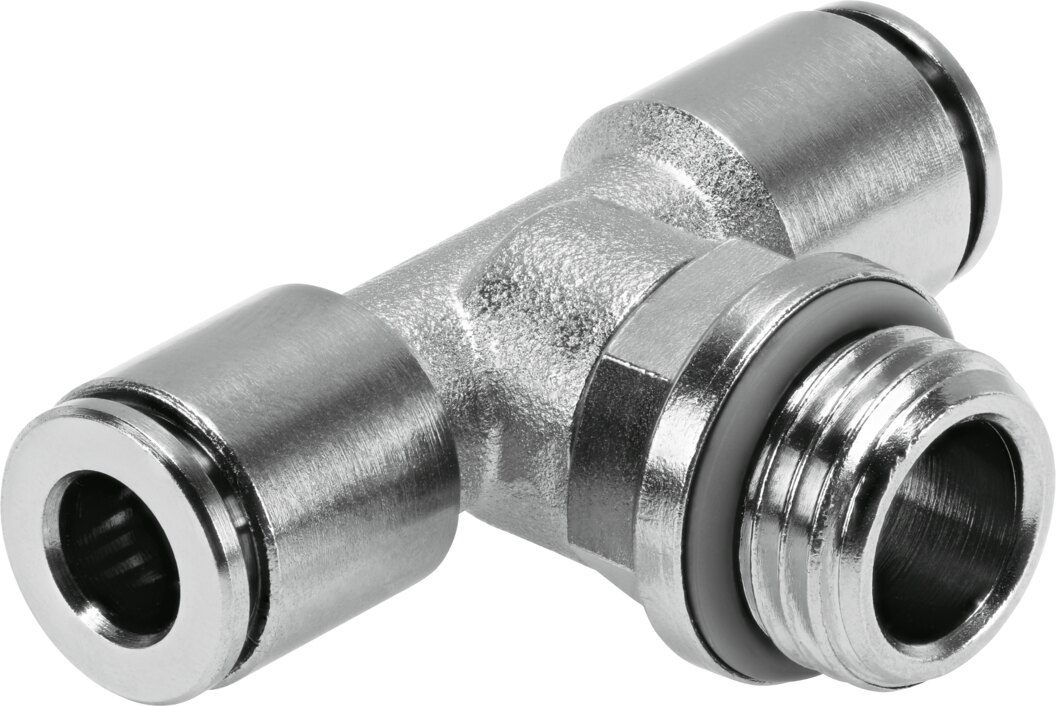

Festo NPQH-T-G14-Q12-P10 Push-in T-fitting
Part number578398EAN / GTIN4052568061012HS code7412.20
Pneumatics
Fittings & Tubing
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NPQH-T-G14-Q12-P10 — Push-in T-fitting, push-in fittings. nominal size 8.5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 578398
- Type code
- NPQH-T-G14-Q12-P10
- EAN / GTIN
- 4052568061012
- Product category
- Push-in fittings
- Size
- Standard
- Nominal size
- 8.5 mm
- Tubing insertion depth
- 19.5 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- T-shape
- Push-in fittings - Design
- Push-pull principle
- Size of pack
- 10
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 2 MPa (-0.95 ... 20 bar; -13.775 ... 290 psi)
- Certificate issuing authority
- NSF C0523185
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Corrosion resistance class CRC
- 3 - high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity, NSF/ANSI 169
- Ambient temperature
- 0 ... 150 °C
- Nominal torque
- 7.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 77.4 g
- Type of mounting
- External hex SW20
- Pneumatic connection, port 1
- Male thread G1/4
- Pneumatic connection, port 2
- For tubing outer diameter of 12 mm
- Colour of release ring
- Silver
- Material housing
- Brass, chemically nickel-plated
- Material thread seal
- Fluoro rubber
- Guard ring material
- PEI
- Material release ring
- Chemically nickel-plated brass
- Material tubing seal
- Fluoro rubber
- Material tubing clamp component
- High-alloy stainless steel
- Thrust ring material
- PEI
- Product type
- Push-in connectors
- Product group
- Pneumatics
- Outer hose diameter
- 12 mm
- Thread
- 1/4"
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.5521 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
