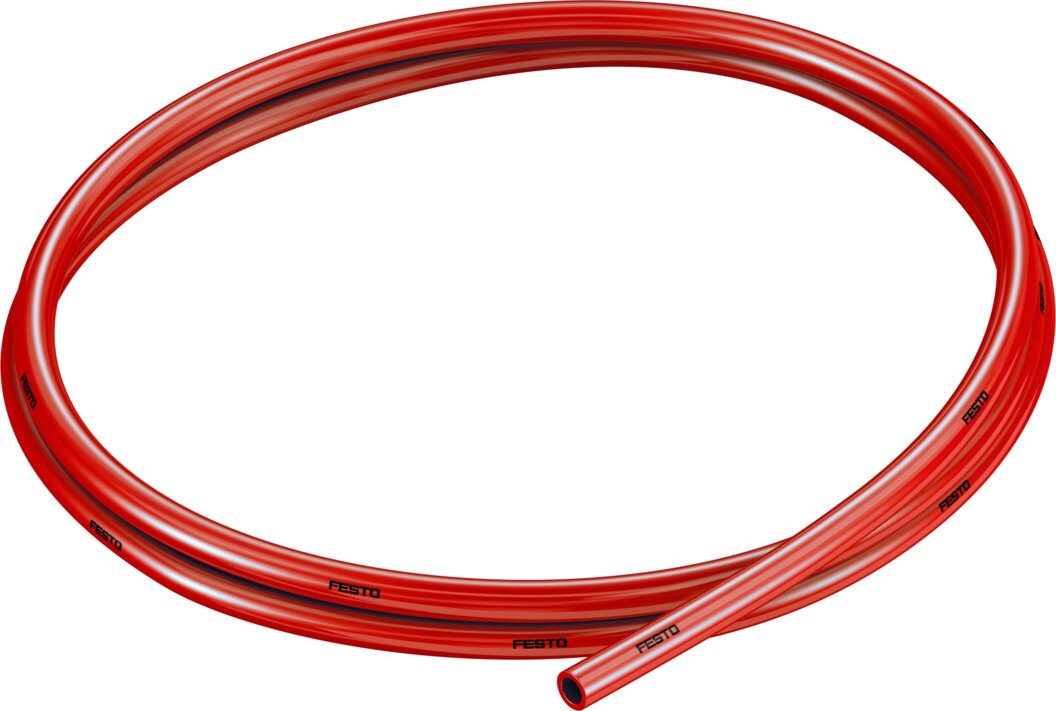

Festo PUN-H-6X1-RT Plastic tubing

Festo PUN-H-6X1-RT — Plastic tubing, standard pneumatic tubing.

Manufacturer part number (MPN)

558286

Type code

PUN-H-6X1-RT

EAN / GTIN

4052568054335

Product category

Standard pneumatic tubing

Outside diameter

6 mm

Flow-relevant bending radius

26 mm

Inside diameter

4 mm

Min. bending radius

10 mm

Instructions on use

TPE-U, ether-based

Tubing characteristics

Suitable for energy chains

Operating pressure complete temperature range

-0.095 ... 0.6 MPa (-0.95 ... 6 bar; -13.775 ... 87 psi)

Temperature-dependent operating pressure

-0.095 ... 1 MPa (-0.95 ... 10 bar; -13.775 ... 145 psi)

Approval

German Technical Control Board (TÜV)

Certificate issuing authority

B 013277 0527 00

Operating medium

Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Fire test material

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14

Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Suitable for use with food

See supplementary material information

Ambient temperature

-35 ... 60 °C

Product weight according to length

0.0183 kg/m

Pneumatic connection

For push-in connector O.D. 6 mm, For barbed fitting I.D. 4 mm with union nut

Colour

Red

Shore hardness

D 52 +/-3

Material tubing

TPE-U(PU)

Product type

Pneumatic hoses

Product group

Pneumatics

Roll size

50 m

Temperature max

60 °C

Pressure max

10 bar

Temperature min

-35 °C

Sales unit

Roll

Carbon footprint (EPD)

0.1371 kg CO2e per M

Country of origin

Czechia

Customs tariff code (EU CN)

39173200

HS code

3917.32

HS Code

3917.32
