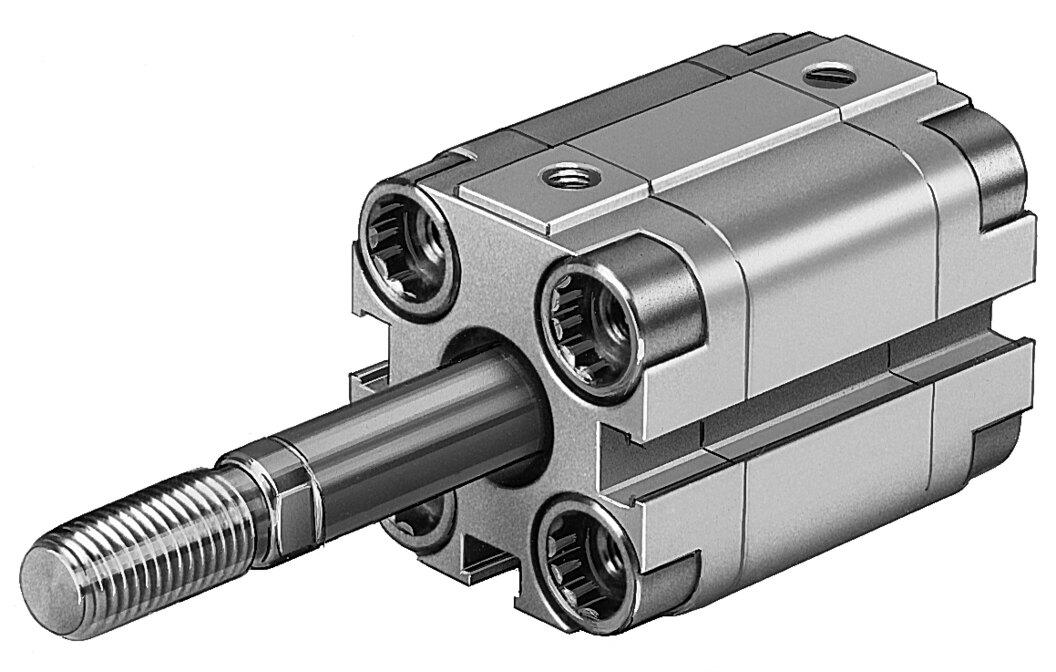

Festo AEVUZ-12-10-A-P-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo AEVUZ-12-10-A-P-A — Compact cylinder, pneumatic cylinders. stroke 10 mm; piston diameter 12 mm; operating pressure 0.15. 1 MPa (1.5. 10 bar; 21.75. 145 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 157253
- Type code
- AEVUZ-12-10-A-P-A
- EAN / GTIN
- 4052568124656
- Product category
- Pneumatic cylinders
- Stroke
- 10 mm
- Piston diameter
- 12 mm
- Piston rod thread
- M6
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Single-acting, Pulling
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991204
- Variants
- Piston rod at one end
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar; 21.75 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.07 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 42 N
- Moving mass for 0 mm stroke
- 8 g
- Additional moving mass per 10 mm stroke
- 2 g
- Basic weight for 0 mm stroke
- 87 g
- Additional weight per 10 mm stroke
- 15 g
- Type of mounting
- With through-hole, with accessories
- Pneumatic connection
- M5
- Material collar screws
- High-alloy stainless steel
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- Wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 1.9607 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568124656
- MPN 157253
