Festo
Festo VUVG-L18-B52-ZT-G14-1H2L-F1A Solenoid valve
Part number8172846EAN / GTIN4052568617981HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-L18-B52-ZT-G14-1H2L-F1A — Solenoid valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 7.3 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 8172846
- Type code
- VUVG-L18-B52-ZT-G14-1H2L-F1A
- EAN / GTIN
- 4052568617981
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 18 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1380 l/min
- pneumatic working port
- G1/4
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Approval
- RCM, c UL us - Recognised (Oil)
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Nominal size
- 7.3 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting, Concealed
- Type of piloting
- Piloted
- Pilot air supply
- External
- Symbol
- 00991062
- lap
- Overlap
- Pilot pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Suitability for vacuum
- Yes
- Switching time reversal
- 15 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
- Max. negative test pulse with 1 signal
- 900 µs
- Characteristic coil data
- 24 V DC: 0.8 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Restrictions for environmental and media temperature
- -5 - 50 °C, without holding current reduction
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 164 g
- Electrical connection
- Plug
- Type of mounting
- On manifold rail, with through-hole
- Pilot air port 12/14
- M5
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- G1/4
- Pneumatic connection, port 5
- G1/4
- Material seals
- HNBR, NBR
- Material housing
- Wrought aluminium alloy
- Material screws
- Coated steel
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- El
- Carbon footprint (EPD)
- 3.2534 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568617981
- MPN 8172846
Product Documentation
Document preview: VUVG-L18-B52-ZT-G14-1H2L-F1A — Festo product documentation
More from Festo
Festo
Festo LFR-1-D-7-MAXI Filter regulator
162709
Festo

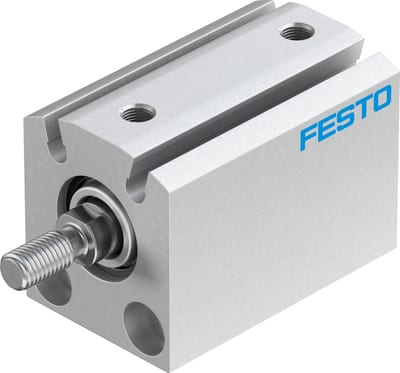

Festo ADVC Short stroke cylinder - 16mm, M5, 15mm, ADVC-16-15-A-P-A
188120
Festo
Festo DNC-125-320-PPV ISO cylinder
4052568135126
Festo

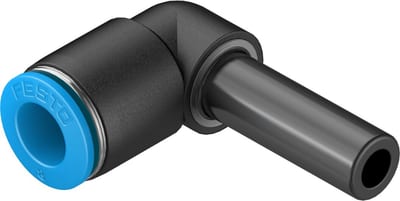

Festo QSL-8H Push-in L-connector
153058
Festo

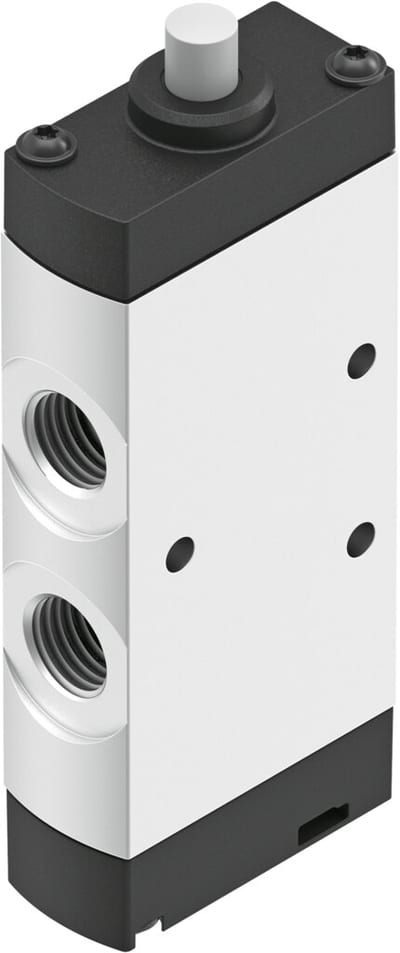

Festo VMEF-S-M52-M-G14 Stem actuated valve
8031302
Festo
Festo DZH-40-100-PPV-A Flat cylinder
14056
Festo

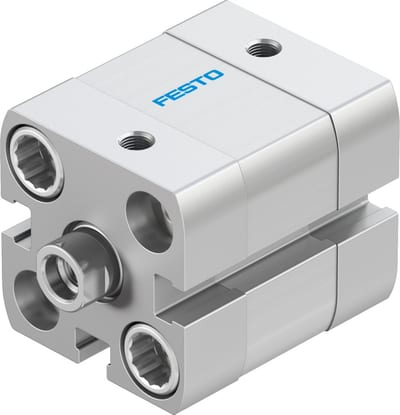

Festo ADN-20-5-I-P-A Compact cylinder
536242
Festo

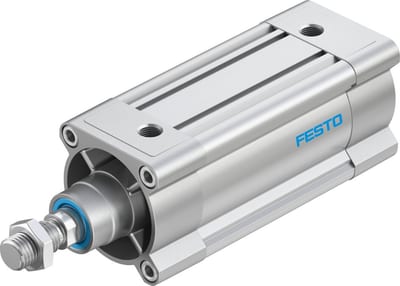

Festo DSBC-80-100-PPSA-N3 ISO cylinder
