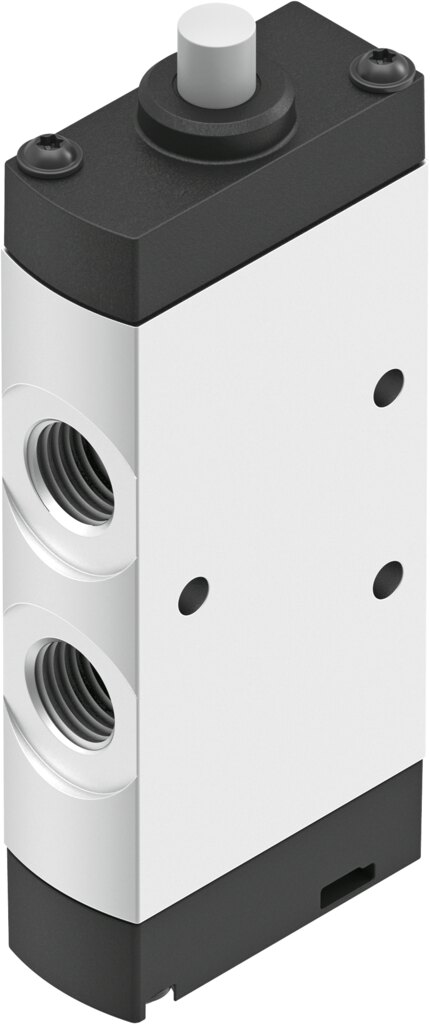

Festo VMEF-S-M52-M-G14 Stem actuated valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VMEF-S-M52-M-G14 — Stem actuated valve, mechanically & hand operated pneumatic valves. valve function 5/2-way, single solenoid; operating pressure -0.095. 1 MPa (-0.95. 10 bar); nominal size 7 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 8031302
- Type code
- VMEF-S-M52-M-G14
- EAN / GTIN
- 4052568293895
- Product category
- Mechanically & hand operated pneumatic valves
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Mechanical
- Construction width
- 20 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1200 l/min
- pneumatic working port
- G1/4
- Operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Nominal size
- 7 mm
- Instructions on use
- Do not use as a mechanical stop
- Sealing principle
- Soft
- Mounting position
- Any
- Type of piloting
- Direct
- Flow direction
- Reversible
- Symbol
- 00991364
- lap
- Overlap
- Max. switching frequency
- 3 Hz
- Explosion protection
- Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Actuating force
- 43 N
- Product weight
- 178 g
- Type of mounting
- With through-hole
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- G1/4
- Pneumatic connection, port 5
- G1/4
- Material cover
- Reinforced PA
- Material seals
- NBR
- Material housing
- Anodised wrought aluminium alloy
- Product type
- Pneumatic Valve Manual
- Product group
- Pneumatics
- Return
- Spring
- Activation
- Ringetryk
- Thread
- 1/4"
- Working pressure
- 10 bar
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 1.4658 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568293895
- MPN 8031302
Product Documentation
More from Festo
Festo
Festo DZH-40-100-PPV-A Flat cylinder
14056
Festo
Festo ADN-20-5-I-P-A Compact cylinder
536242
Festo
Festo DSBC-80-100-PPSA-N3 ISO cylinder
1383370
Festo
Festo ADN-40-30-A-PPS-A Compact cylinder
572677
Festo
Festo FRC-3/8-D-5M-O-MIDI Service unit
192654
Festo
Festo NPQR-T-G12-Q16 Push-in fitting
8085696
Festo
Festo PRS-1/4-3-B Manifold block
15862
Festo
Festo VABM-B10-30E-G34-2-P3 Manifold block
8026395
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8031302?
- 8031302 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 8031302.
- What is the HS code for 8031302?
- The customs tariff (HS) code for 8031302 is 8481.20.
- Who manufactures 8031302?
- 8031302 is a Festo product in the Pneumatics range.
- Is a datasheet available for 8031302?
- Yes — the 8031302 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8031302?
- The minimum order quantity is 1.
- Is 8031302 available?
- Yes — 8031302 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
