Festo ADVU-63-50-P-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADVU-63-50-P-A — Compact cylinder, pneumatic cylinders. stroke 50 mm; piston diameter 63 mm; operating pressure 0.06. 1 MPa (0.6. 10 bar; 8.7. 145 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 156565
- Type code
- ADVU-63-50-P-A
- EAN / GTIN
- 4052568118297
- Product category
- Pneumatic cylinders
- Stroke
- 50 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M8
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston-rod end
- Female thread
- Design
- Piston, Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 ... 1 MPa (0.6 ... 10 bar; 8.7 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.7 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 1750 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 1870 N
- Moving mass for 0 mm stroke
- 134 g
- Additional moving mass per 10 mm stroke
- 16 g
- Basic weight for 0 mm stroke
- 1059 g
- Additional weight per 10 mm stroke
- 107 g
- Type of mounting
- With through-hole, with accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Galvanised steel
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 29.1274 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568118297
- MPN 156565
Product Documentation
More from Festo
Festo
Festo DGSL-12-100-PA Mini slide
543967
Festo
Festo DSNU-63-320-PPV-A Round cylinder
196059
Festo
Festo VUVG-L10-M52-MT-M7-1H2L-F1A Solenoid valve
8164348
Festo
Festo LRS-3/8-D-7-O-MINI Pressure regulator
194624
Festo
Festo FRC-3/8-D-O-MINI-A Service unit
162748
Festo
Festo DFM-32-50-B-PPV-A-KF Guided drive
609359
Festo
Festo VUVS-L30-P53U-MD-G38-F8 Solenoid valve
575623
Festo

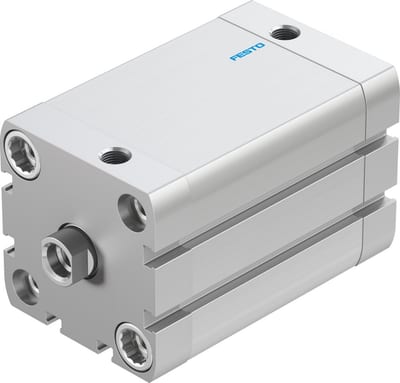

Festo ADN-50-60-I-P-A Compact cylinder
