Festo

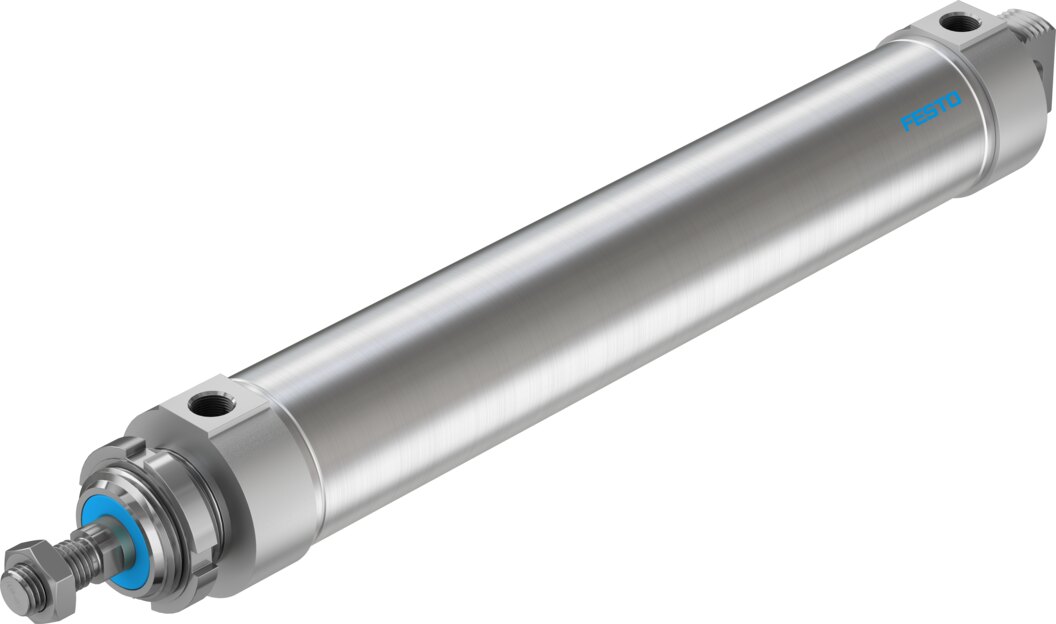

Festo DSNU-63-320-PPV-A Round cylinder
Part number196059EAN / GTIN4052568159078HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSNU-63-320-PPV-A — Round cylinder, round cylinders. stroke 320 mm; piston diameter 63 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 196059
- Type code
- DSNU-63-320-PPV-A
- EAN / GTIN
- 4052568159078
- Product category
- Round cylinders
- Stroke
- 320 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Design
- Piston, Piston rod, Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1.3 J
- Cushioning length
- 21 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 1681.9 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 1870.3 N
- Moving mass
- 1259 g
- Product weight
- 2853 g
- Type of mounting
- With accessories
- Pneumatic connection
- G3/8
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- High-alloy stainless steel
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G3/8"
- Carbon footprint (EPD)
- 35.9516 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568159078
- MPN 196059
Product Documentation
Document preview: DSNU-63-320-PPV-A — Festo product documentation
