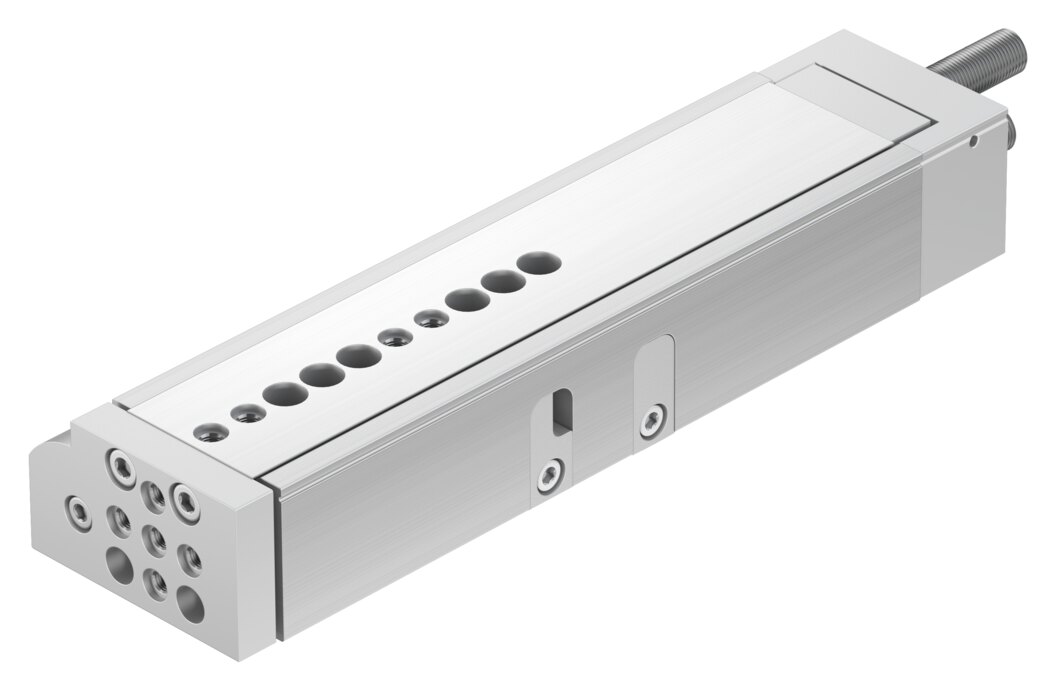

Festo DGSL-12-100-PA Mini slide
Part number543967EAN / GTIN4052568183110HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL-12-100-PA — Mini slide, drives with slides. stroke 100 mm; piston diameter 16 mm; operating pressure 0.1. 0.8 MPa (1. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 543967
- Type code
- DGSL-12-100-PA
- EAN / GTIN
- 4052568183110
- Product category
- Drives with slides
- Stroke
- 100 mm
- Adjustable end position range/length front
- 68 mm
- Adjustable end position range/length rear
- 25.5 mm
- Piston diameter
- 16 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke, Piston, Piston rod, Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.1 ... 0.8 MPa (1 ... 8 bar)
- Max. speed
- 0.8 m/s
- Repetition accuracy
- 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.25 J
- Cushioning length
- 1 mm
- Max. force Fy
- 1340 N
- Max. force Fz
- 1340 N
- Max. moment Mx
- 20 Nm
- Max. moment My
- 15 Nm
- Max. moment Mz
- 15 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 104 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 121 N
- Moving mass
- 507 g
- Product weight
- 1275 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 24.1445 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568183110
- MPN 543967
Product Documentation
Document preview: DGSL-12-100-PA — Festo product documentation
More from Festo
Festo
Festo DSNU-63-320-PPV-A Round cylinder
196059
Festo
Festo VUVG-L10-M52-MT-M7-1H2L-F1A Solenoid valve
8164348
Festo
Festo LRS-3/8-D-7-O-MINI Pressure regulator
194624
Festo
Festo FRC-3/8-D-O-MINI-A Service unit
162748
Festo
Festo DFM-32-50-B-PPV-A-KF Guided drive
609359
Festo
Festo VUVS-L30-P53U-MD-G38-F8 Solenoid valve
575623
Festo
Festo ADN-50-60-I-P-A Compact cylinder
536328
Festo
Festo ADN-100-40-A-PPS-A Compact cylinder
577204
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 543967?
- 543967 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 543967.
- What is the HS code for 543967?
- The customs tariff (HS) code for 543967 is 8412.31.
- Who manufactures 543967?
- 543967 is a Festo product in the Pneumatics range.
- Is a datasheet available for 543967?
- Yes — the 543967 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 543967?
- The minimum order quantity is 1.
- Is 543967 available?
- Yes — 543967 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
