Festo ADNGF Compact cylinder - 20mm, M5, 15mm, ADNGF-20-15-PPS-A
Pricing
Request a quote
We reply within 24 hours
Product Description

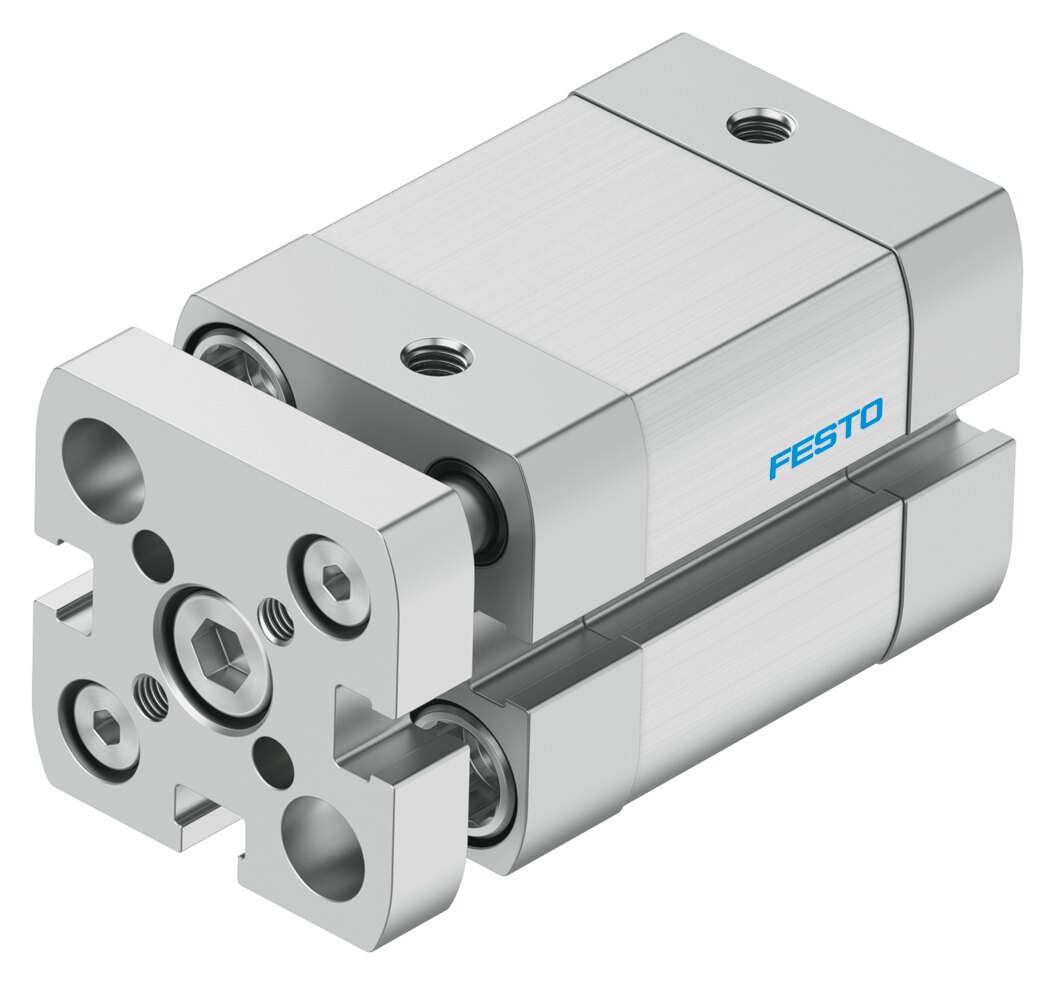

Festo ADNGF Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 20 mm, port size M5, stroke rate 15 mm, supplier type designation ADNGF-20-15-PPS-A. Supplied under manufacturer part number 577209, EAN 4052568225636, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 15 mm
- Piston diameter
- 20 mm
- Based on standard
- ISO 21287
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.19 ... 1 MPa (1.9 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.2 J
- Cushioning length
- 3 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 141 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 188 N
- Moving mass
- 73 g
- Product weight
- 190 g
- Pneumatic connection
- M5
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568225636
- Festo type code
- ADNGF-20-15-PPS-A
- Festo order number
- 577209
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 3.5392 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 577209
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568225636
- MPN 577209
