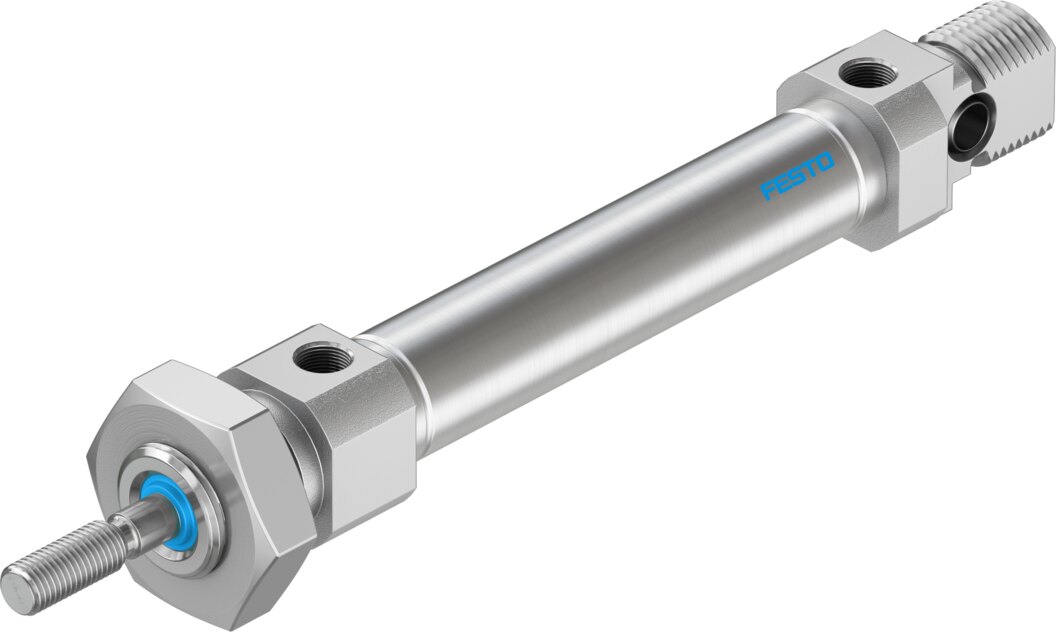

Festo DSNU Standard cylinder double-acting - 10mm, M5", 30mm, DSNU-10-30-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSNU Standard cylinder double-acting. Pneumatic ISO Air Cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 10 mm, port size M5", stroke rate 30 mm, supplier type designation DSNU-10-30-P-A. Supplied under manufacturer part number 1908253, EAN 4052568108342, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 30 mm
- Piston diameter
- 10 mm
- Piston rod thread
- M4
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 6432
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod; Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.05 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 39.6 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 47.1 N
- Moving mass for 0 mm stroke
- 8.5 g
- Additional moving mass per 10 mm stroke
- 1 g
- Basic weight for 0 mm stroke
- 37.3 g
- Additional weight per 10 mm stroke
- 2.7 g
- Type of mounting
- With accessories
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy; Colourless anodised
- Material seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- High-alloy stainless steel
- EAN / GTIN
- 4052568108342
- Festo type code
- DSNU-10-30-P-A
- Festo order number
- 1908253
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- M5"
- Carbon footprint (EPD)
- 0.5919 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 1908253
