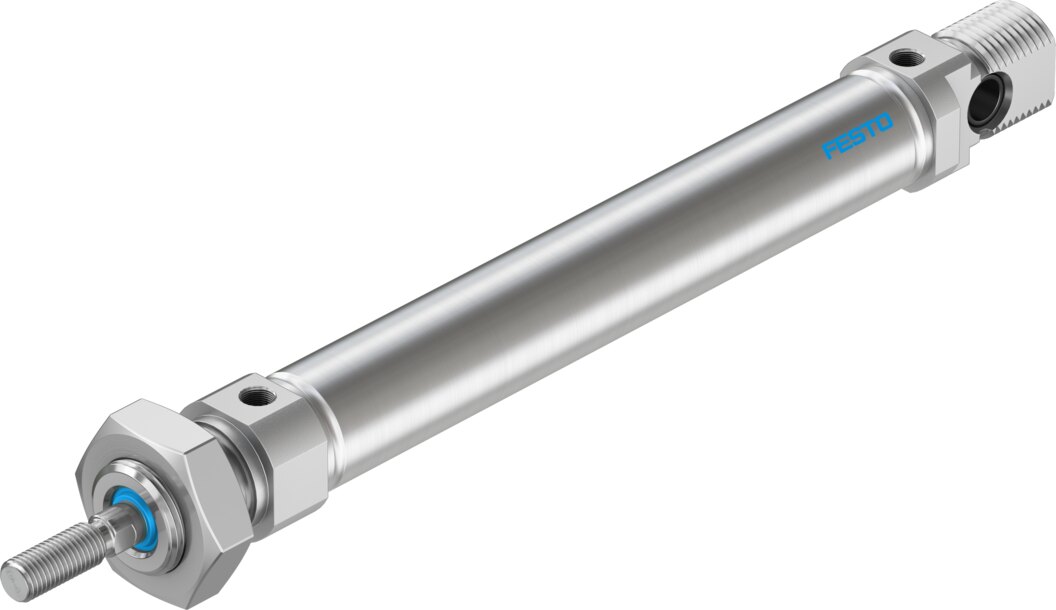

Festo DSNU Standard cylinder double-acting - 16mm, 6mm, M5", 80mm, DSNU-16-80-PPS-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSNU Standard cylinder double-acting. Pneumatic ISO Air Cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 16 mm, piston diameter 6 mm, port size M5", stroke rate 80 mm. Supplied under manufacturer part number 559266, EAN 4052568097172, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 80 mm
- Piston diameter
- 16 mm
- Piston rod thread
- M6
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 6432
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod; Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.15 J
- Cushioning length
- 12 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 103.7 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 120.6 N
- Moving mass for 0 mm stroke
- 23 g
- Additional moving mass per 10 mm stroke
- 2 g
- Basic weight for 0 mm stroke
- 89.9 g
- Additional weight per 10 mm stroke
- 4.6 g
- Type of mounting
- With accessories
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy; Colourless anodised
- Material seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- High-alloy stainless steel
- EAN / GTIN
- 4052568097172
- Festo type code
- DSNU-16-80-PPS-A
- Festo order number
- 559266
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- M5"
- Temperature min
- -20 °C
- Temperature max
- 80 °C
- Working pressure max
- 10 bar
- Carbon footprint (EPD)
- 1.7205 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 559266
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568097172
- MPN 559266
Product Documentation
More from Festo
Festo
Festo DGSL Mini Slide - M5, DGSL-10-10-EA
570172
Festo
Festo DSNU Standard cylinder double-acting - 10mm, M5", 30mm, DSNU-10-30-P-A
1908253
Festo
Festo DZF Flat cylinder - 50mm, 160mm, DZF-50-160-P-A
164074
Festo
Festo ADN Compact cylinder double-acting - 20mm, 8mm, M5, 40mm, ADN-20-40-A-P-A
536240
Festo
Festo LRB Pressure Regulator Manifold Mini - 3/8", 0,5 - 7bar, LRB-3/8-D-7-O-K3-MINI
528969
Festo
Festo FRC Service Unit Mini automatic - 3/8", 0,5 - 12bar, 5MY, FRC-3/8-D-5M-MINI-A
162780
Festo
Festo LRS Pressure regulator Mini - 1/4", 0,5 - 7bar, LRS-1/4-D-7-O-I-MINI
194617
Festo
Festo LFP-D Filter Cartridge Maxi - D, LFP-D-MAXI-5M
159641
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 559266?
- 559266 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 559266.
- What is the HS code for 559266?
- The customs tariff (HS) code for 559266 is 8412.31.
- Who manufactures 559266?
- 559266 is a Festo product in the Pneumatics range.
- Is a datasheet available for 559266?
- Yes — the 559266 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 559266?
- The minimum order quantity is 1.
- Is 559266 available?
- Yes — 559266 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
