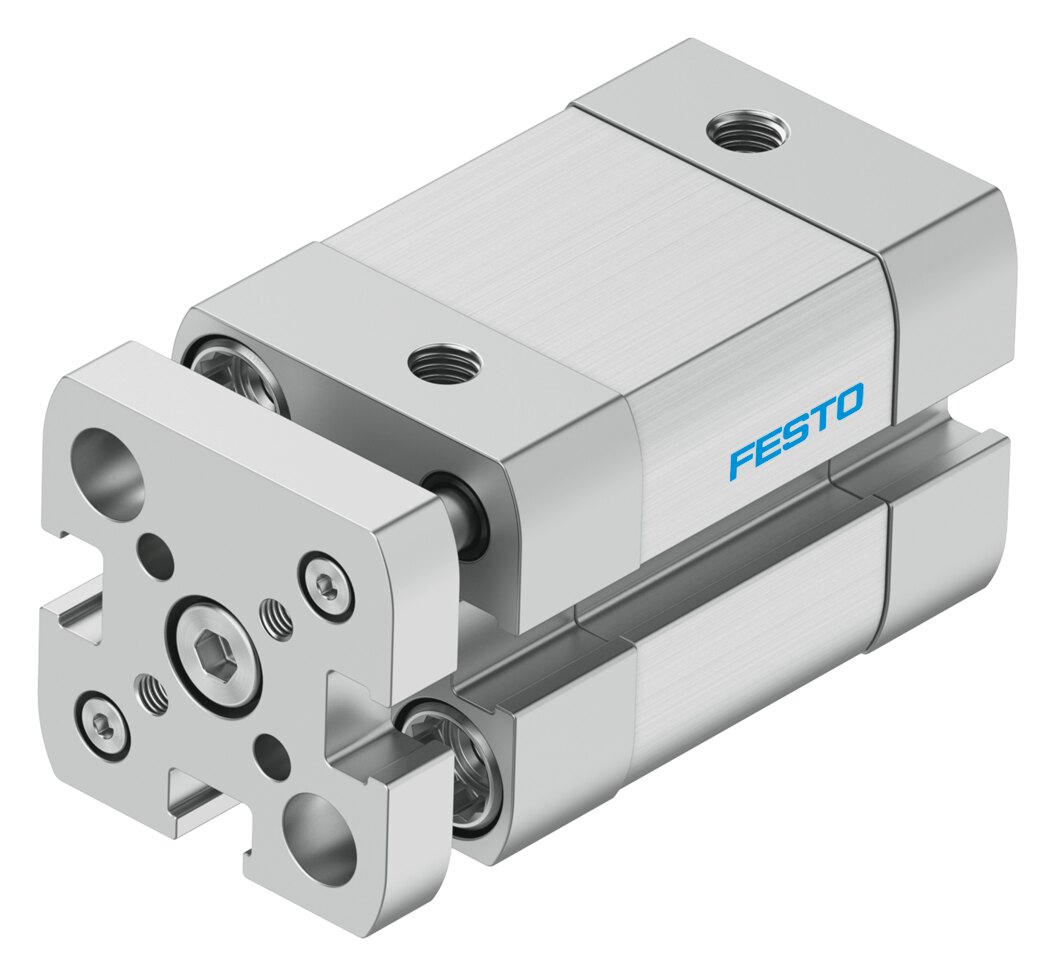

Festo ADNGF Compact cylinder - 16mm, M5, 10mm, ADNGF-16-10-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADNGF Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 16 mm, port size M5, stroke rate 10 mm, supplier type designation ADNGF-16-10-P-A. Supplied under manufacturer part number 554213, EAN 4052568198411, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 16 mm
- Based on standard
- ISO 21287
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.15 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 90 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 121 N
- Moving mass
- 53 g
- Product weight
- 104 g
- Pneumatic connection
- M5
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568198411
- Festo type code
- ADNGF-16-10-P-A
- Festo order number
- 554213
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 2.0747 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 554213
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568198411
- MPN 554213
Product Documentation
More from Festo
Festo
Festo DSBC Standard cylinder double-acting aluminium - 500mm, 63mm, DSBC-63-500-PPSA-N3
1383643
Festo
Festo DSBC Standard cylinder double-acting aluminium - 160mm, 80mm, DSBC-80-160-PPSA-N3
1383372
Festo
Festo DZH Flat cylinder - 25mm, 25mm, DZH-25-25-PPV-A
151121
Festo

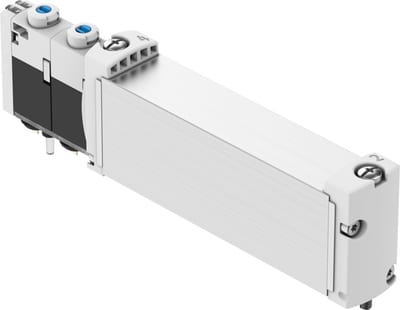

Festo VUVG-B18 Solenoid Valve - 4052568277611
8004896
Festo

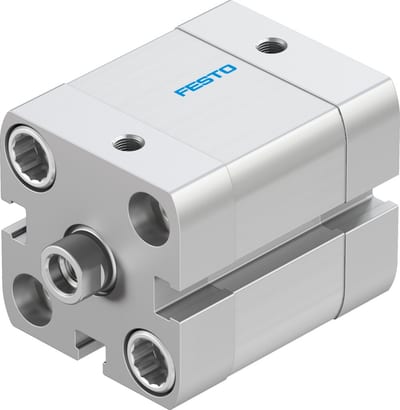

Festo ADN Compact cylinder double-acting - 25mm, 6mm, M5, 10mm, ADN-25-10-I-P-A
536260
Festo

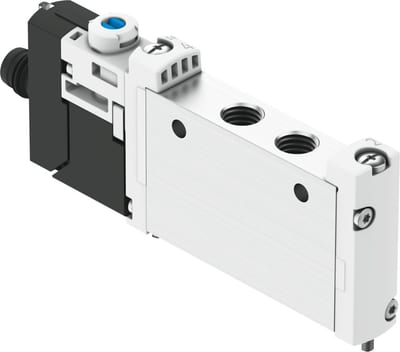

Festo VUVG-L10 Solenoid Valve - 4052568258825
8031485
Festo

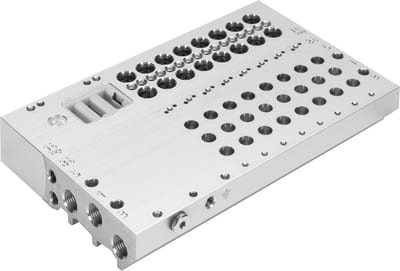

Festo VABM-L1 Connection strip - 1/8", VABM-L1-10G-G18-16-M-GR
573927
Festo

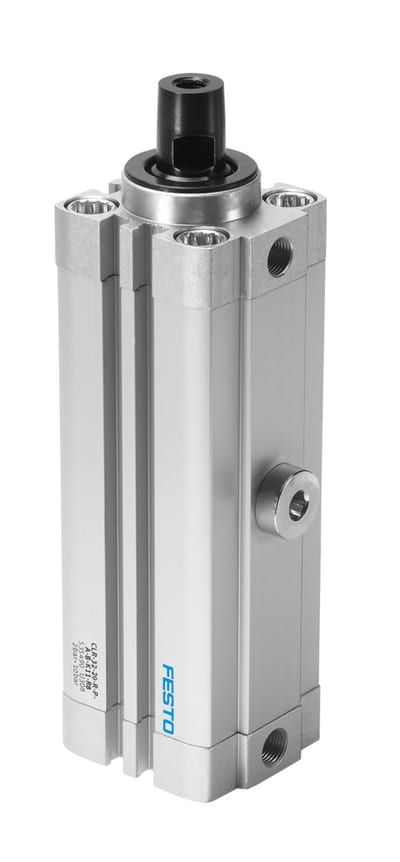

Festo CLR Linear Swing Clamp - G1/8, CLR-50-20-L-P-A-K11-R8
