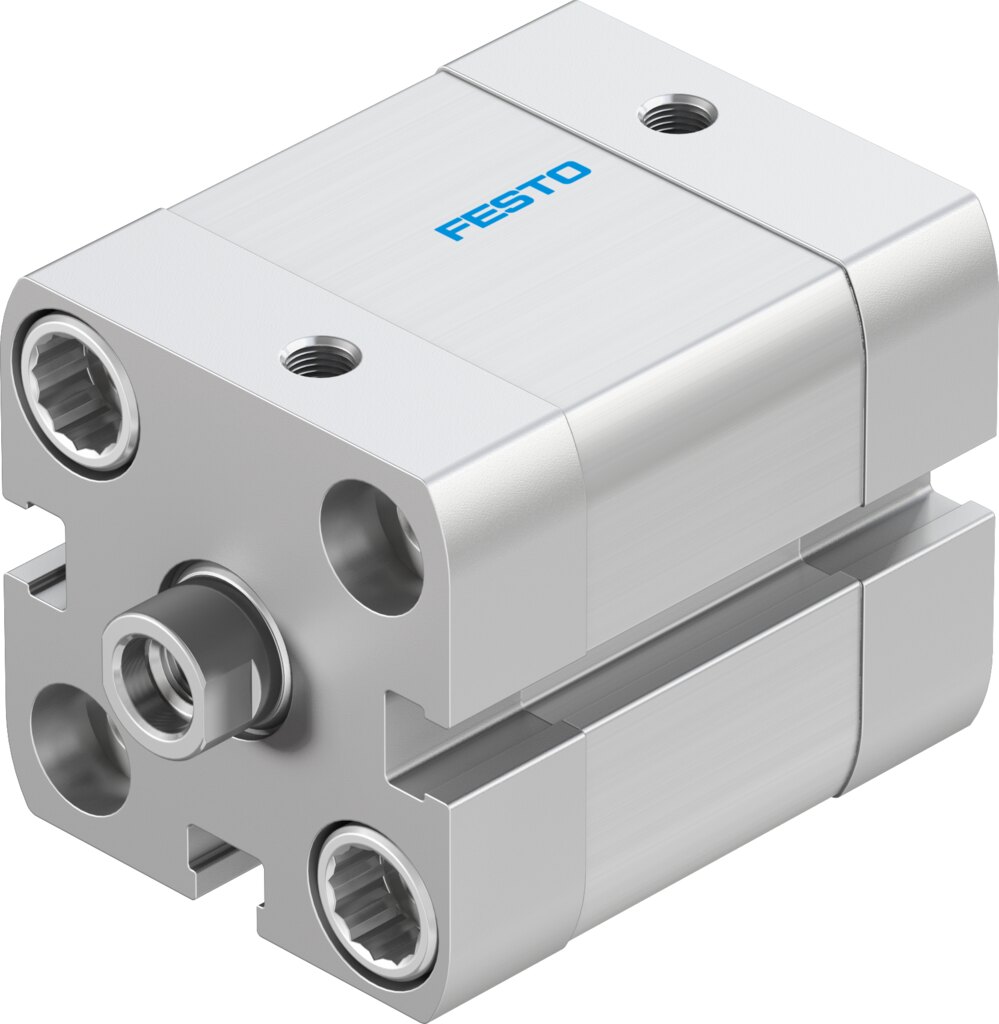

Festo ADN Compact cylinder double-acting - 25mm, 6mm, M5, 10mm, ADN-25-10-I-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN Compact cylinder double-acting. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 25 mm, piston diameter 6 mm, port size M5, stroke rate 10 mm. Supplied under manufacturer part number 536260, EAN 4052568087647, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 25 mm
- Piston rod thread
- M6
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston-rod end
- Female thread
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 ... 1 MPa (0.6 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.3 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 247 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 295 N
- Moving mass
- 38 g
- Product weight
- 198 g
- Type of mounting
- With through-hole; With female thread; With accessories
- Pneumatic connection
- M5
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568087647
- Festo type code
- ADN-25-10-I-P-A
- Festo order number
- 536260
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Temperature max
- 80 °C
- Temperature min
- -20 °C
- Working pressure min
- 0.6 bar
- Working pressure max
- 10 bar
- Carbon footprint (EPD)
- 3.1770 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 536260
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568087647
- MPN 536260
Product Documentation
More from Festo
Festo
Festo VUVG-L10 Solenoid Valve - 4052568258825
8031485
Festo
Festo VABM-L1 Connection strip - 1/8", VABM-L1-10G-G18-16-M-GR
573927
Festo
Festo CLR Linear Swing Clamp - G1/8, CLR-50-20-L-P-A-K11-R8
535500
Festo
Festo LFRS Filter controller Midi automatic - 1/2", 0,5 - 12bar, 40MY, LFRS-1/2-D-MIDI-A
194757
Festo
Festo VABM-L1 Connection strip - 1/8", VABM-L1-10HW-G18-4-GR
573434
Festo
Festo CPE10 Connection block - 1/4", CPE10-PRS-1/4-4
543823
Festo
Festo NPQR-L Connector stainless steel - 10mm, 10mm, NPQR-L-Q10-E
8085712
Festo
Festo LFR Filter controller Maxi automatic - 1", 0,5 - 12bar, 40MY, LFR-1-D-DI-MAXI-A
192398
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 536260?
- 536260 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 536260.
- What is the HS code for 536260?
- The customs tariff (HS) code for 536260 is 8412.31.
- Who manufactures 536260?
- 536260 is a Festo product in the Pneumatics range.
- Is a datasheet available for 536260?
- Yes — the 536260 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 536260?
- The minimum order quantity is 1.
- Is 536260 available?
- Yes — 536260 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
