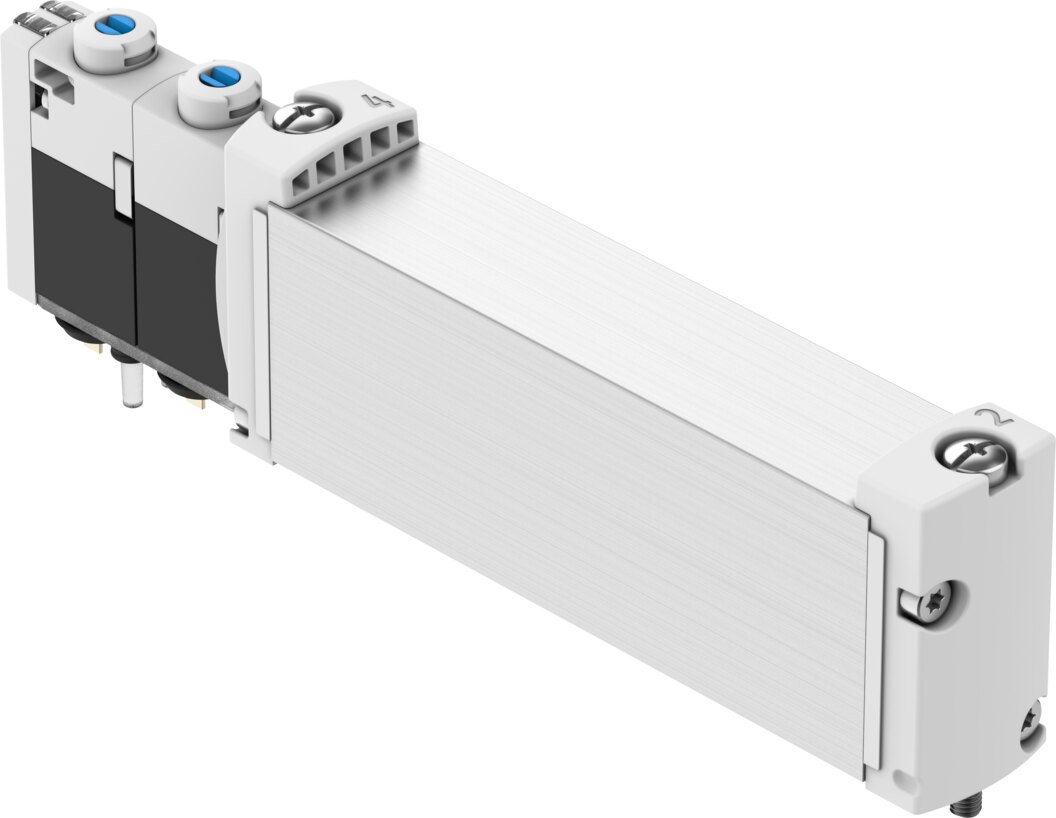

Festo VUVG-B18 Solenoid Valve - 4052568277611
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-B18 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Supplied under manufacturer part number 8004896, EAN 4052568277611, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 5/3-way, pressurised
- Type of actuation
- Electrical
- Valve size
- 18 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 850 l/min
- pneumatic working port
- Flange
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65; IP67
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991128
- lap
- Indeterminate overlap
- Signal status display
- LED
- Pilot pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- Max. switching frequency
- 3 Hz
- Switching time off
- 68 ms
- Switching time on
- 20 ms
- Switching time reversal
- 35 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse with 1 signal
- 3000 µs
- Characteristic coil data
- 22 V DC: 1.0 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 60 °C
- Product weight
- 140 g
- Electrical connection
- Via E-box
- Type of mounting
- On manifold rail
- Material seals
- HNBR; NBR
- Material housing
- Wrought aluminium alloy
- EAN / GTIN
- 4052568277611
- Festo type code
- VUVG-B18-P53U-ZT-F-1T1L
- Festo order number
- 8004896
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 3.0153 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 8004896
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568277611
- MPN 8004896
