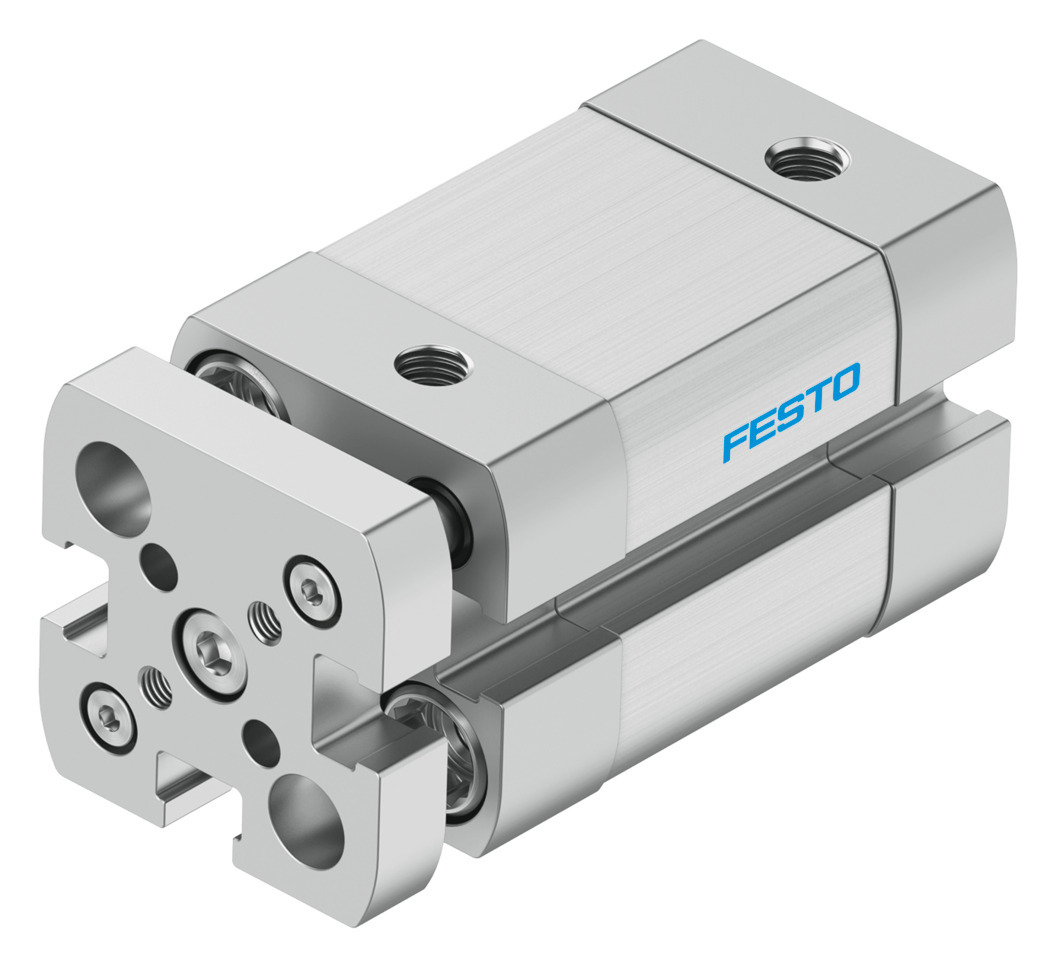

Festo ADNGF-12-10-P-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADNGF-12-10-P-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 10 mm; piston diameter 12 mm; operating pressure 0.15. 1 MPa (1.5. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 554206
- Type code
- ADNGF-12-10-P-A
- EAN / GTIN
- 4052568198343
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 10 mm
- Piston diameter
- 12 mm
- Based on standard
- ISO 21287
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston, Piston rod, Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.07 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 51 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 68 N
- Moving mass
- 25 g
- Product weight
- 90 g
- Pneumatic connection
- M5
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 1.7696 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568198343
- MPN 554206
Product Documentation
More from Festo
Festo
Festo CPE10-M1BH-3GLS-QS-6 Solenoid valve
4052568159603
Festo
Festo NEBM-M12W8-E-7-LE8 Encoder cable
1451677
Festo
Festo AEVUZ-50-25-A-P-A Compact cylinder
157285
Festo

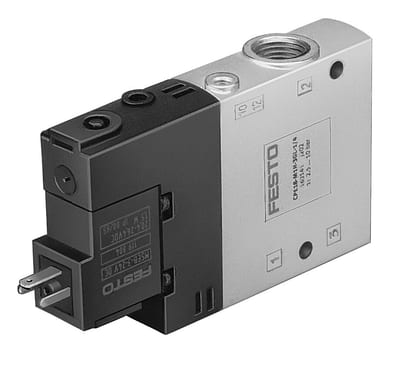

Festo CPE18-M2H-3OLS-1/4 Solenoid valve
163764
Festo

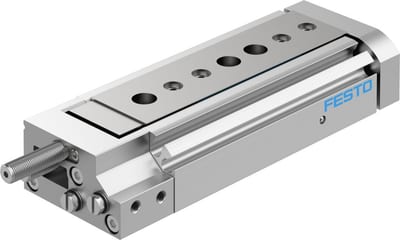

Festo DGSL-6-30-PA Mini slide
543918
Festo
Festo VABM-B10-25E-G12-2 Manifold block
8026243
Festo
Festo LFMBA-1/8-D-MINI-A Filter combination
162666
Festo

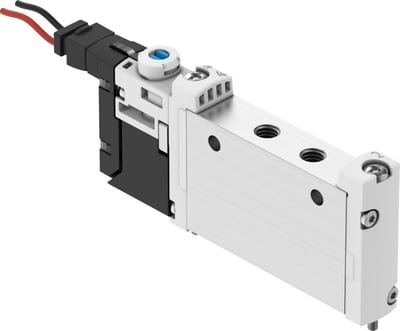

Festo VUVG-S10-M52-RT-M5-1H2L-W1 Solenoid valve
