Festo

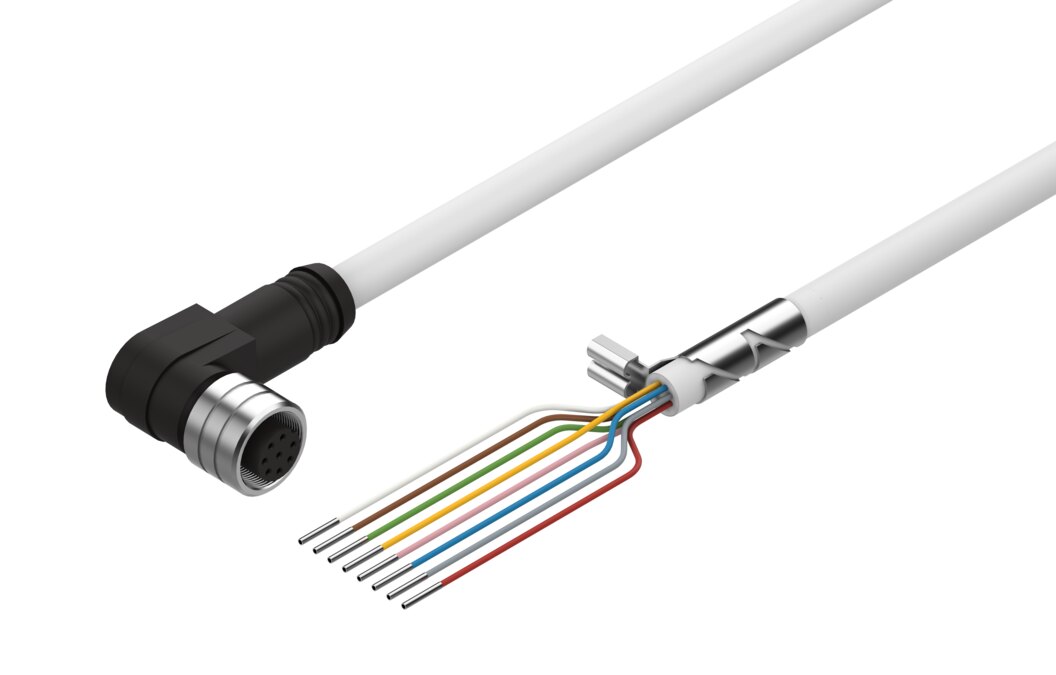

Festo NEBM-M12W8-E-7-LE8 Encoder cable
Part number1451677EAN / GTIN4052568233020HS code8544.42
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NEBM-M12W8-E-7-LE8 — Encoder cable, accessories for servo drives.
Technical Specifications
- Manufacturer part number (MPN)
- 1451677
- Type code
- NEBM-M12W8-E-7-LE8
- EAN / GTIN
- 4052568233020
- Product category
- Accessories for servo drives
- Cable designation
- Without inscription label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connector system
- M12x1, A-coded to EN 61076-2-101
- Electrical connection 1, number of connections/cores
- 8
- Electrical connection 1, used connections/cores
- 8
- Electrical connection 1, connection pattern
- 00992265
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connector system
- Open end
- Electrical connection 2, number of connections/cores
- 8
- Electrical connection 2, used connections/cores
- 8
- Operational voltage range DC
- 0 ... 30 V
- Nominal operating voltage DC
- 24 V
- Operational voltage range AC
- 0 ... 30 V
- Nominal operating voltage AC
- 24 V
- Shielding
- Yes
- Cable length
- 7 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, moving cable
- 68 mm
- Cable diameter
- 6.8 mm
- Cable structure
- 4 x 2 x 0.14 mm²
- Nominal cross section conductor
- 0.14 mm²
- Wire ends
- Wire ferrule
- Degree of protection
- IP65
- Ambient temperature
- -40 ... 80 °C
- Ambient temperature with moving cable
- -5 ... 80 °C
- CE mark (see declaration of conformity)
- In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Material cable sheath
- TPE-U(PUR)
- Cable sheath colour
- Grey
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Temperature max
- 80 °C
- Temperature min
- -40 °C
- Carbon footprint (EPD)
- 2.6604 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 85444290
- HS code
- 8544.42
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4052568233020
- MPN 1451677
Product Documentation
Document preview: NEBM-M12W8-E-7-LE8 — Festo product documentation
More from Festo
Festo
Festo AEVUZ-50-25-A-P-A Compact cylinder
157285
Festo
Festo CPE18-M2H-3OLS-1/4 Solenoid valve
163764
Festo
Festo DGSL-6-30-PA Mini slide
543918
Festo
Festo VABM-B10-25E-G12-2 Manifold block
8026243
Festo
Festo LFMBA-1/8-D-MINI-A Filter combination
162666
Festo
Festo VUVG-S10-M52-RT-M5-1H2L-W1 Solenoid valve
577324
Festo
Festo DNC-63-160-PPV ISO cylinder
163421
Festo

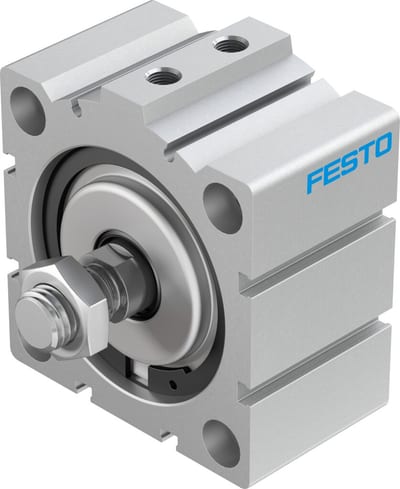

Festo ADVC Short stroke cylinder - 80mm, G1/8, 15mm, ADVC-80-15-A-P
