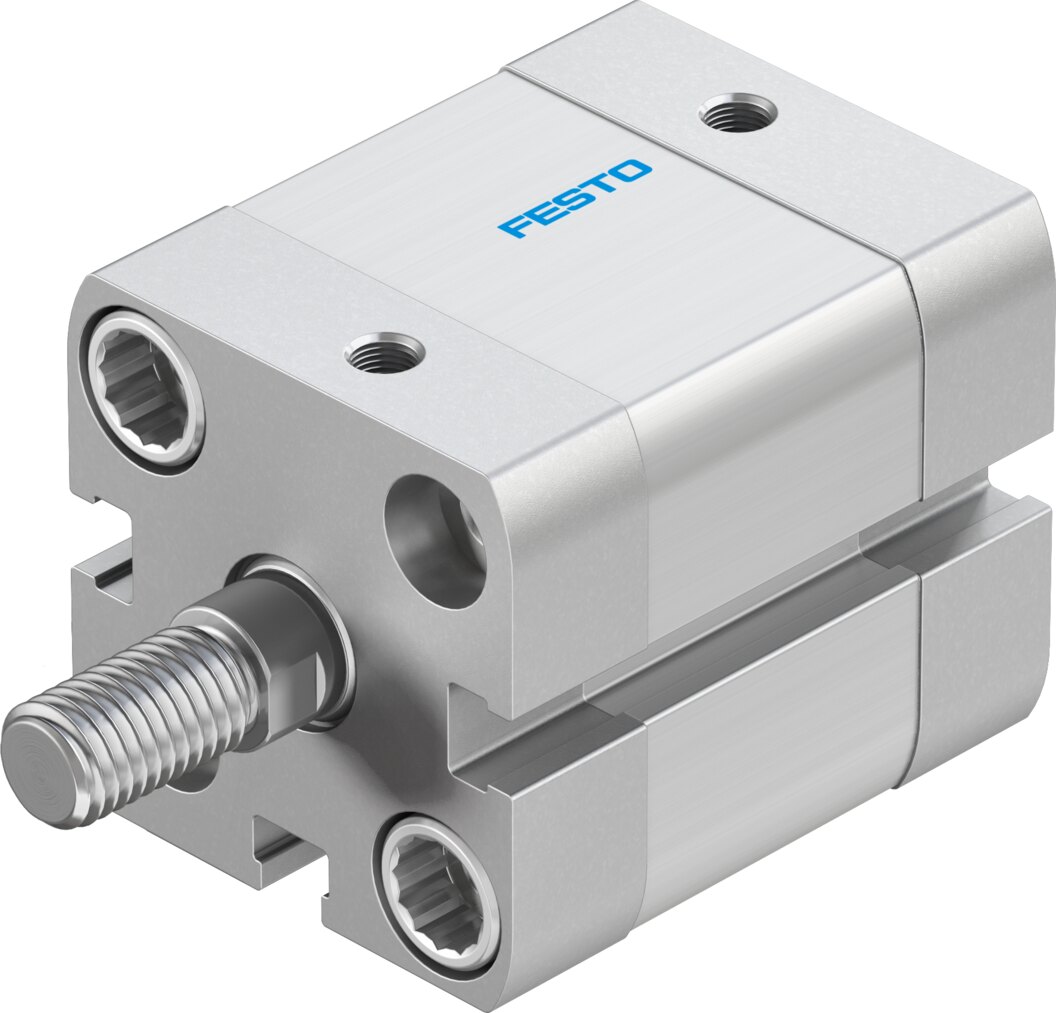

Festo ADN-25-10-A-P-A Compact cylinder

Festo ADN-25-10-A-P-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 10 mm; piston diameter 25 mm; operating pressure 0.06. 1 MPa (0.6. 10 bar).

Manufacturer part number (MPN)

536252

Type code

ADN-25-10-A-P-A

EAN / GTIN

4052568087562

Product category

Compact pneumatic cylinders, short-stroke and flat cylinders

Stroke

10 mm

Piston diameter

25 mm

Piston rod thread

M8

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Conforms to standard

ISO 21287

Piston-rod end

Male thread

Position detection

Via proximity switch

Symbol

00991217

Variants

Piston rod at one end

Operating pressure

0.06 ... 1 MPa (0.6 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.3 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

247 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

295 N

Moving mass

47 g

Product weight

207 g

Type of mounting

With through-hole, with female thread, with accessories

Pneumatic connection

M5

Material collar screws

Steel

Material cover

Anodised wrought aluminium alloy

Material seals

TPE-U(PUR)

Material piston rod

High-alloy steel

Material cylinder barrel

Smooth-anodised wrought aluminium alloy

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

M5

Temperature max

80 °C

Temperature min

-20 °C

Working pressure min

0.6 bar

Working pressure max

10 bar

Carbon footprint (EPD)

3.3586 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31
