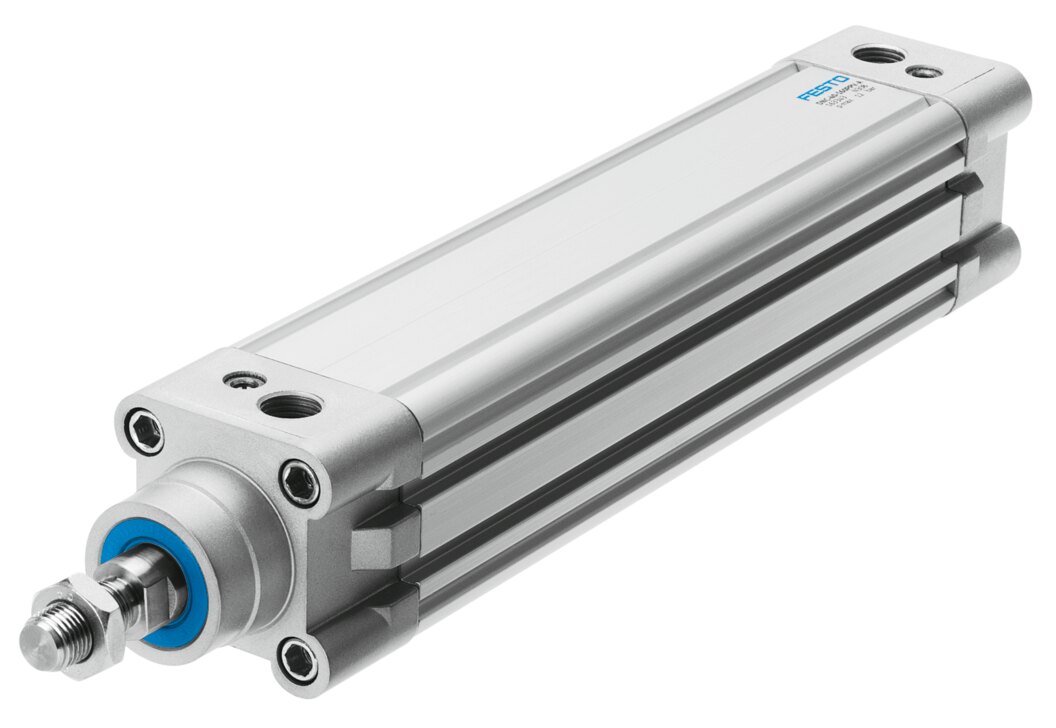

Festo DNC-32-250-PPV ISO cylinder

Festo DNC-32-250-PPV — ISO cylinder, pneumatic cylinders. stroke 250 mm; piston diameter 32 mm; operating pressure 0.06. 1.2 MPa (0.6. 12 bar).

Manufacturer part number (MPN)

163327

Type code

DNC-32-250-PPV

EAN / GTIN

4052568133740

Product category

Pneumatic cylinders

Lifecycle status

Phase-out

Stroke

250 mm

Piston diameter

32 mm

Piston rod thread

M10x1.25

Cushioning

Pneumatic cushioning, adjustable at both ends

Mounting position

Any

Conforms to standard

ISO 15552

Piston-rod end

Male thread

Design

Piston, Piston rod, Profile barrel

Position detection

None

Symbol

00991232

Variants

Piston rod at one end

Operating pressure

0.06 ... 1.2 MPa (0.6 ... 12 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.1 J

Cushioning length

20 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

415 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

483 N

Moving mass for 0 mm stroke

162 g

Additional moving mass per 10 mm stroke

9 g

Basic weight for 0 mm stroke

517 g

Additional weight per 10 mm stroke

30 g

Type of mounting

With female thread, with accessories

Pneumatic connection

G1/8

Material cover

Die-cast aluminium, coated

Material seals

TPE-U(PU)

Material piston rod

High-alloy steel

Material cylinder barrel

Wrought aluminium alloy, Smooth-anodised

Product type

Pneumatic ISO Air Cylinder

Product group

Pneumatics

Port Size

G1/8"

Carbon footprint (EPD)

25.5882 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31
