Festo

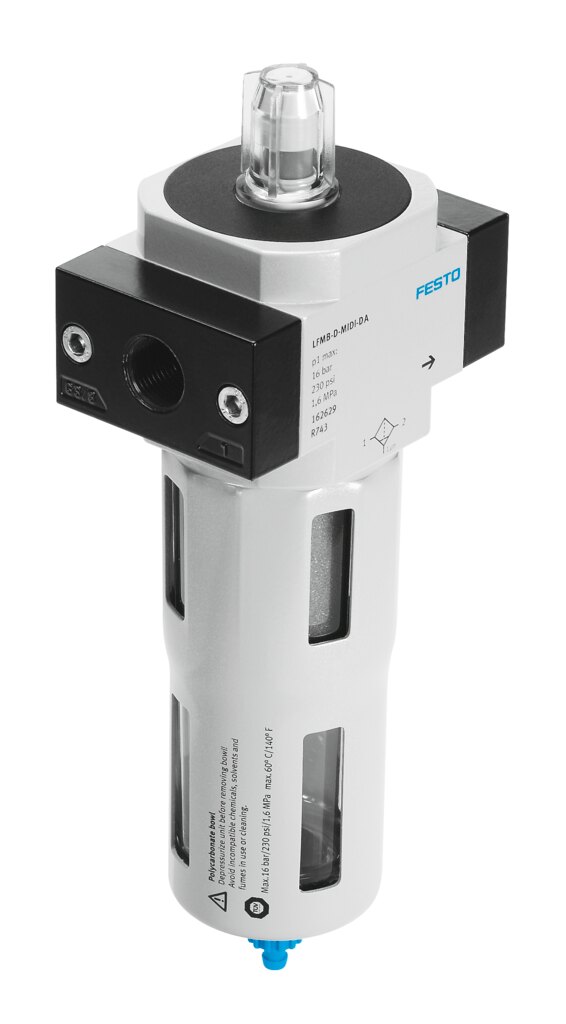

Festo LFMB-3/8-D-MIDI-DA Fine filter
Part number532821EAN / GTIN4052568165611HS code8421.39
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFMB-3/8-D-MIDI-DA — Fine filter, compressed air preparation. operating pressure 0.1. 1.6 MPa (1. 16 bar; 14.5. 232 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 532821
- Type code
- LFMB-3/8-D-MIDI-DA
- EAN / GTIN
- 4052568165611
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Series
- D
- Size
- Midi
- Design
- Fibre filter
- Grade of filtration
- 1 µm
- Condensate drain
- Manual, rotating
- Symbol
- 00991543
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar; 14.5 ... 232 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [6:4:4], Inert gas
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [5:4:3], Inert gas
- Max. standard flow rate for clean air class
- 1420 l/min
- Min. standard flow rate for clean air class
- 500 l/min
- Filter efficiency
- 99.99 %
- Max. condensate volume
- 43 ml
- Bowl guard
- Metal bowl guard
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- 1.5 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Storage temperature
- -10 ... 60 °C
- Filter efficiency, fine particles
- 99 %
- Residual oil content
- 0.5 mg/m³
- Filter efficiency, oil aerosol
- 90 %
- Differential pressure display
- Visual indicator
- Type of mounting
- With accessories
- Mounting position
- Vertical +/-5°
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Material housing
- Die-cast zinc
- Material filter
- Borosilicate fibre
- Material bowl
- Makrolon®
- Product weight
- 834 g
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 3/8"
- Filter element
- 1 My
- Carbon footprint (EPD)
- 14.1270 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84213925
- HS code
- 8421.39
Standards & Compliance
- HS Code
- 8421.39
Cross References
- EAN 4052568165611
- MPN 532821
Product Documentation
Document preview: LFMB-3/8-D-MIDI-DA — Festo product documentation
