Festo CRDSNU-B-25-80-PPS-A-MG-A1 ISO cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CRDSNU-B-25-80-PPS-A-MG-A1 — ISO cylinder, stainless steel pneumatic cylinders. stroke 80 mm; piston diameter 25 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 2159640
- Type code
- CRDSNU-B-25-80-PPS-A-MG-A1
- EAN / GTIN
- 4052568252472
- Product category
- Stainless steel pneumatic cylinders
- Stroke
- 80 mm
- Piston diameter
- 25 mm
- Based on standard
- ISO 6432
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Design
- Piston, Piston rod, Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 4 - Very high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitable for use with food
- See supplementary material information
- Ambient temperature
- 0 ... 80 °C
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 247 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 295 N
- Moving mass for 0 mm stroke
- 73 g
- Additional moving mass per 10 mm stroke
- 6.2 g
- Basic weight for 0 mm stroke
- 410 g
- Additional weight per 10 mm stroke
- 11 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Material cover
- High-alloy stainless steel
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- High-alloy stainless steel
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G1/8"
- Carbon footprint (EPD)
- 6.5655 kg CO2e per pcs
- Country of origin
- India
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568252472
- MPN 2159640
Product Documentation
More from Festo
Festo
Festo DSBC-50-500-PPVA-N3 ISO cylinder
1366959
Festo
Festo MHA1-PR2-3-M3-PI-PCB Manifold
197247
Festo
Festo ADVUL-40-10-P-A Compact cylinder
156885
Festo

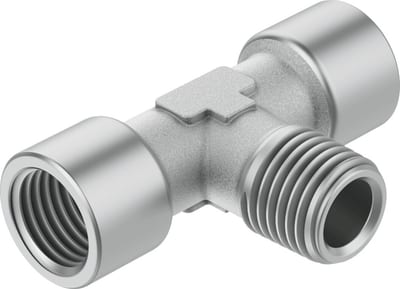

Festo NPFC-T-R14-2G14-MFF T-fitting
8030242
Festo
Festo DNC-32-320-PPV ISO cylinder
163328
Festo

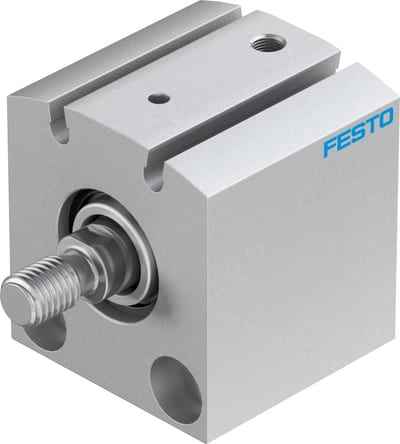

Festo AEVC Short stroke cylinder - 25mm, M5, 5mm, AEVC-25-5-A-P-A
