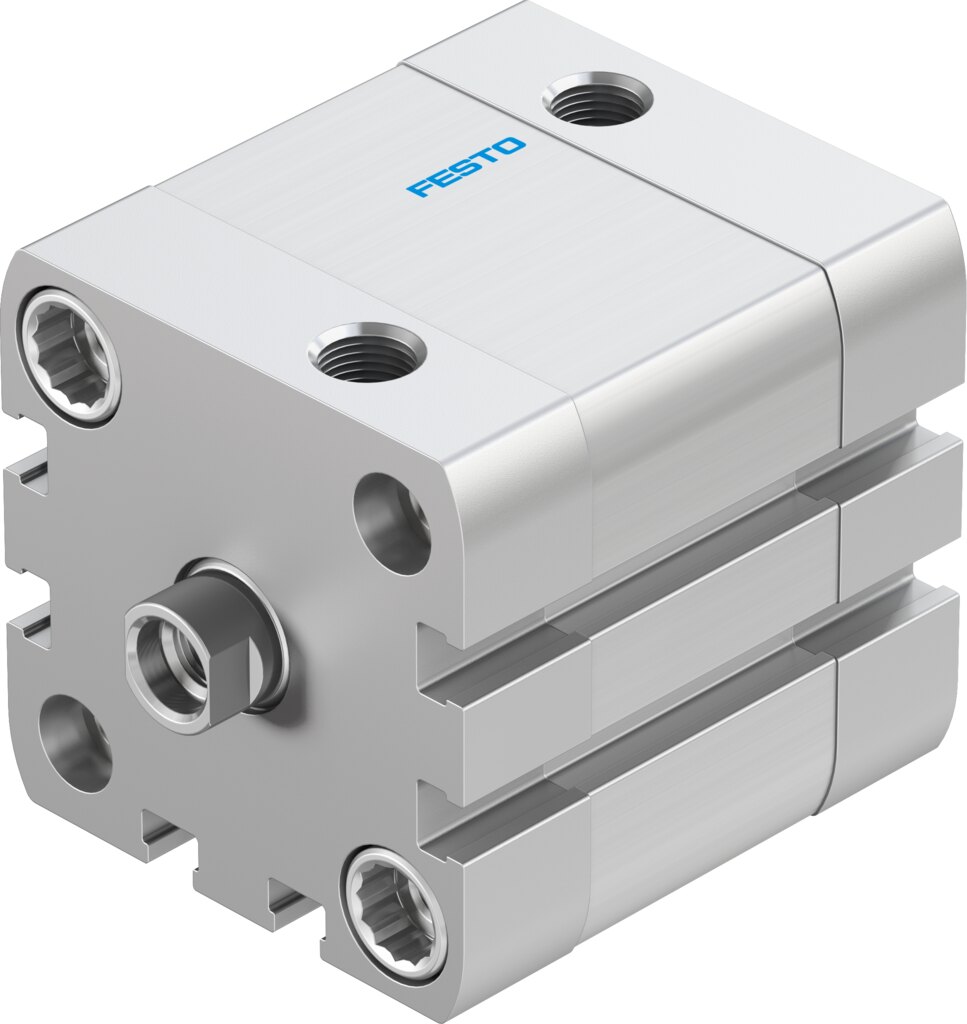

Festo ADN-40-15-I-PPS-A Compact cylinder

Festo ADN-40-15-I-PPS-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 15 mm; piston diameter 40 mm; operating pressure 0.1. 1 MPa (1. 10 bar).

Manufacturer part number (MPN)

572665

Type code

ADN-40-15-I-PPS-A

EAN / GTIN

4052568218867

Product category

Compact pneumatic cylinders, short-stroke and flat cylinders

Stroke

15 mm

Piston diameter

40 mm

Piston rod thread

M8

Cushioning

Self-adjusting pneumatic end-position cushioning

Mounting position

Any

Conforms to standard

ISO 21287

Piston-rod end

Female thread

Position detection

Via proximity switch

Symbol

00992970

Variants

Piston rod at one end

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

1.7 J

Cushioning length

5 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

686 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

754 N

Moving mass

101 g

Product weight

404 g

Type of mounting

With through-hole, with female thread, with accessories

Pneumatic connection

G1/8

Material collar screws

Steel

Material cover

Anodised wrought aluminium alloy

Material seals

TPE-U(PUR)

Material piston rod

High-alloy steel

Material cylinder barrel

Smooth-anodised wrought aluminium alloy

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

G1/8

Carbon footprint (EPD)

7.7700 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568218867
• MPN 572665
