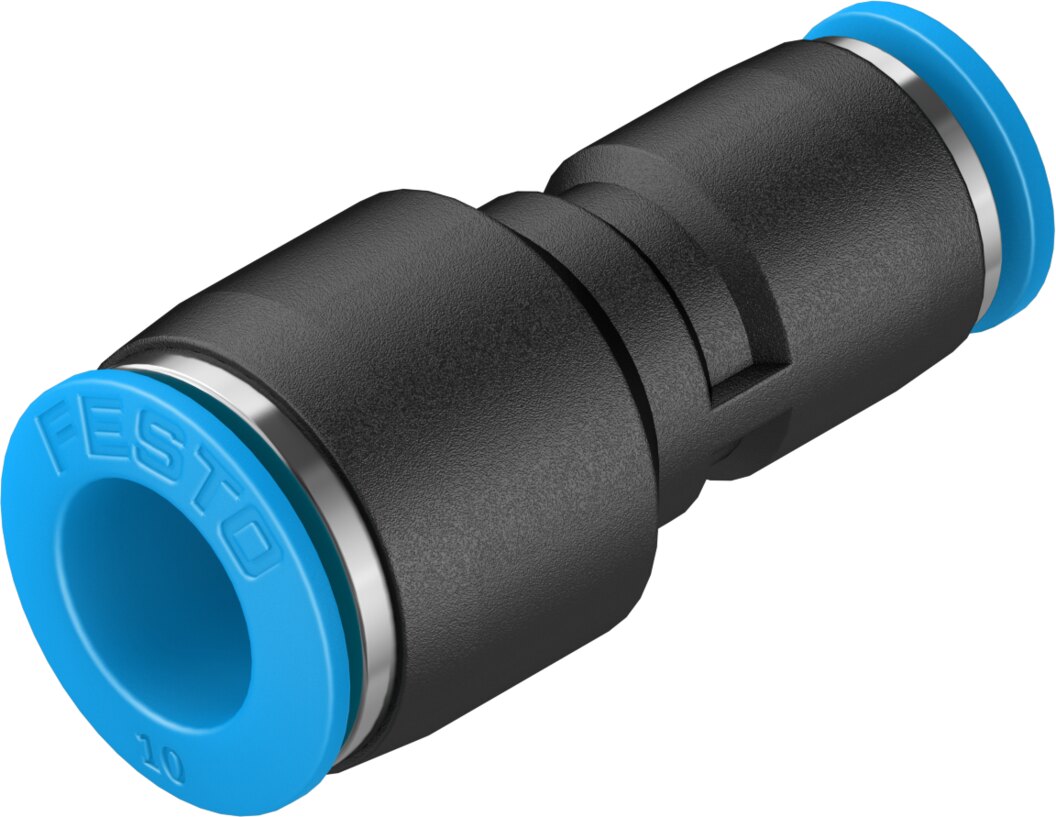

Festo QS-10-6 Push-in connector

Festo QS-10-6 — Push-in connector, push-in fittings. nominal size 4.3 mm.

Manufacturer part number (MPN)

130607

Type code

QS-10-6

EAN / GTIN

4052568023652

Product category

Push-in fittings

Size

Standard

Nominal size

4.3 mm

Tubing insertion depth

20.2 mm

Mounting position

Any

Design

Straight design

Push-in fittings - Design

Push-pull principle

Size of pack

10

Operating pressure complete temperature range

-0.095 ... 0.6 MPa (-0.95 ... 6 bar; -13.775 ... 87 psi)

Temperature-dependent operating pressure

-0.095 ... 1.4 MPa (-0.95 ... 14 bar; -13.775 ... 203 psi)

Operating medium

Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Corrosion resistance class CRC

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 4 according to ISO 14644-1

Ambient temperature

-10 ... 80 °C

Product weight

12 g

Pneumatic connection, port 1

For tubing outer diameter of 10 mm

Pneumatic connection, port 2

For tubing outside diameter of 6 mm

Colour of release ring

Blue

Material housing

PBT

Material release ring

POM

Material tubing seal

NBR

Material tubing clamp component

High-alloy stainless steel

Product type

Collectors C

Product group

Pneumatics

Outer hose diameter

10 mm

Outer hose diameter 2

6 mm

Temperature min

-10 °C

Temperature max

80 °C

Sales unit

Pack

Carbon footprint (EPD)

0.0833 kg CO2e per pcs

Country of origin

Japan

Customs tariff code (EU CN)

39174000

HS code

3917.40

HS Code

3917.40
