Festo LFMA-3/8-D-MIDI-DA-A Micro filter
Part number532857EAN / GTIN4052568165932HS code8421.39
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFMA-3/8-D-MIDI-DA-A — Micro filter, compressed air preparation. operating pressure 0.2. 1.2 MPa (2. 12 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 532857
- Type code
- LFMA-3/8-D-MIDI-DA-A
- EAN / GTIN
- 4052568165932
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Series
- D
- Size
- Midi
- Design
- Fibre filter
- Grade of filtration
- 0.01 µm
- Condensate drain
- Fully automatic
- Symbol
- 00991544
- Operating pressure
- 0.2 ... 1.2 MPa (2 ... 12 bar)
- Operating medium
- Compressed air to ISO 8573-1:2010 [6:4:4], Inert gas
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [3:4:2], Inert gas
- Max. standard flow rate for clean air class
- 880 l/min
- Min. standard flow rate for clean air class
- 250 l/min
- Filter efficiency
- 99.9999 %
- Bowl guard
- Metal bowl guard
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- 1.5 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Filter efficiency, fine particles
- 99995 %
- MPPS
- 0.05 µm
- Filter efficiency MPPS
- 99.95 %
- Residual oil content
- 0.01 mg/m³
- Filter efficiency, oil aerosol
- 99 %
- Differential pressure display
- Visual indicator
- Type of mounting
- With accessories
- Mounting position
- Vertical +/-5°
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Material housing
- Die-cast zinc
- Material filter
- Borosilicate fibre
- Material bowl
- Makrolon®
- Product weight
- 834 g
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 3/8"
- Filter element
- 0.01 My
- Carbon footprint (EPD)
- 17.5194 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84213925
- HS code
- 8421.39
Standards & Compliance
- HS Code
- 8421.39
Cross References
- EAN 4052568165932
- MPN 532857
Product Documentation
Document preview: LFMA-3/8-D-MIDI-DA-A — Festo product documentation
More from Festo
Festo
Festo DZH-20-100-PPV-A Flat cylinder
151138
Festo
Festo LR-1-D-7-O-MAXI Pressure regulator
162605
Festo
Festo PUN-6X1-SW Plastic tubing
159665
Festo

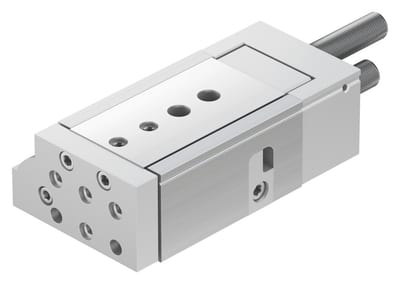

Festo DGSL-25-20-PA Mini slide
544031
Festo
Festo MFH-5-1/8-S-B-EX Solenoid valve
535924
Festo

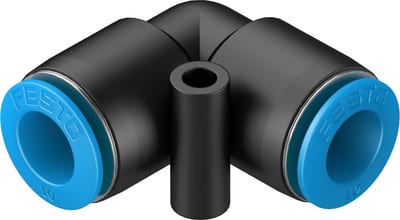

Festo QSL-10 Push-in L-connector
